6 - ORDINARY MAINTENANCE
6 - 10
- COVER 6

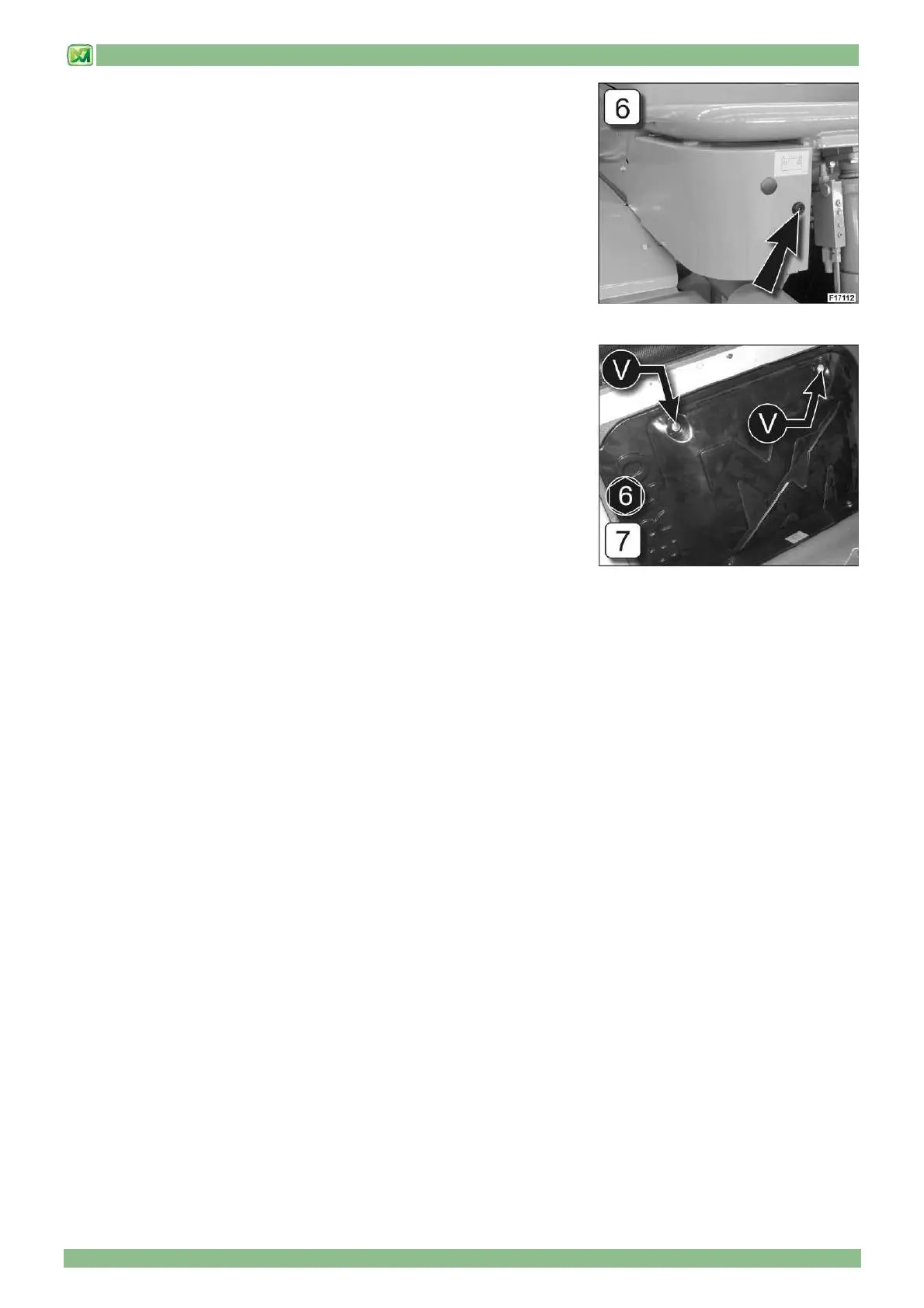

COVER 6 is located in front of the cab and houses the machine electronic control
unit. Proceed as follows to remove COVER 6:
- open the lock using the specific key provided
- slide protective cover in the direction shown by the arrow
To re-close the cover, proceed as follows:
- fit the cover in its seat
- push the cover fully into place
- close the lock using the special key provided
- COVER 7
The electrical box containing the fuses, the relays and the electronic boards of
the machine can be found under COVER 7, which is located behind the driver's
seat.
Proceed as follows to open COVER 7:
• unscrew fixing screws "V"
• remove COVER 7
Proceed as follows to close COVER 7:
• rest COVER 7 on the two lower supports of the electrical box
• tighten fixing screws "V"
