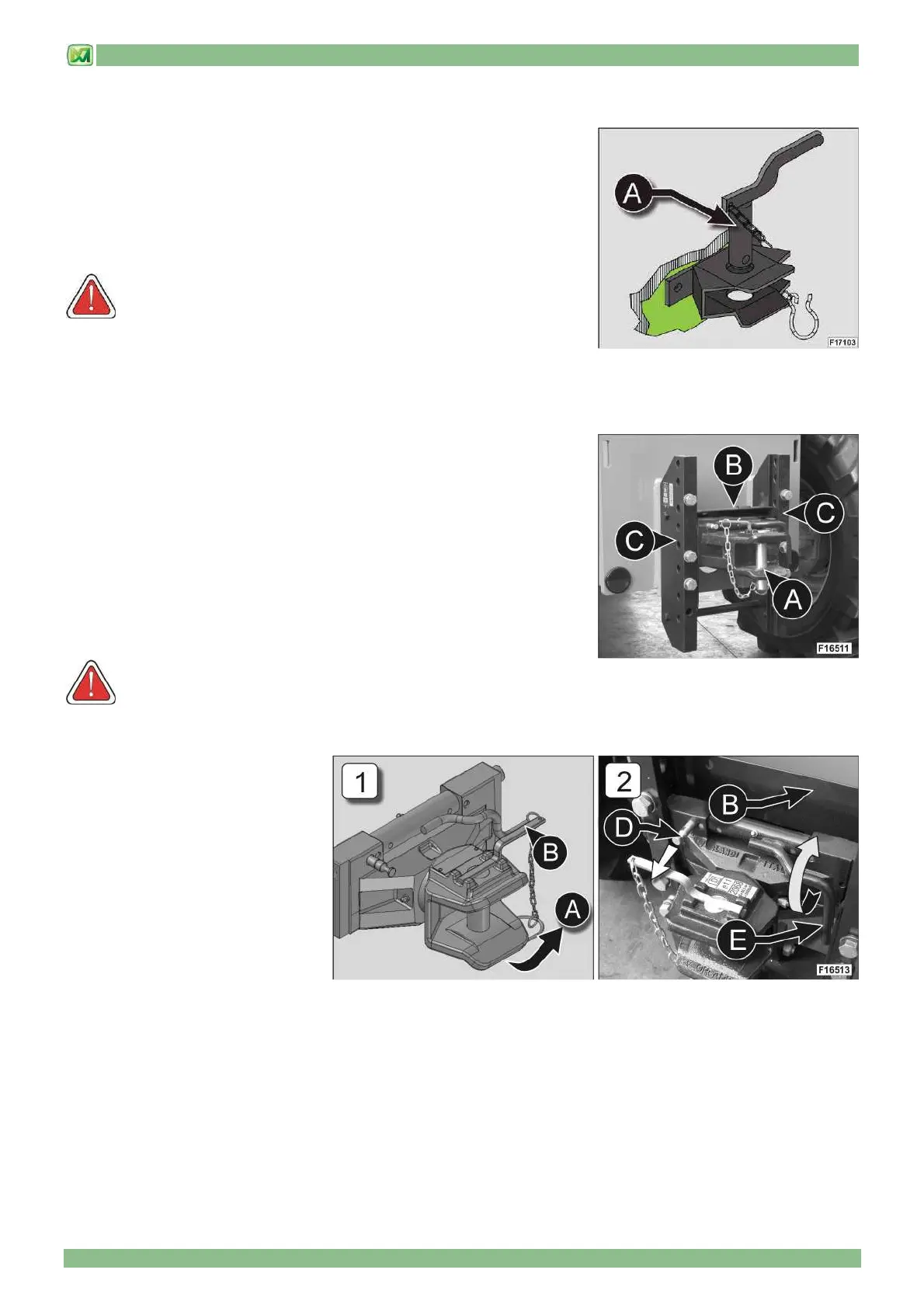

FIXED BUILDING SITE TOW HOOK
Mount the fixed tow hook (A) for building sites if:
- it is necessary to tow the vehicle on public roads (see also paragraph
"MACHINE TOWING" in chapter "OPERATING INSTRUCTIONS")
- it is necessary to tow trailers or other equipment within a building site. In this
case, the maximum towable weight must be less than 4000 kg.
The maximum vertical load on the towing hook is indicated inside the registration
documents for public road circulation.
WARNING!
It is forbidden to use this type of hook to tow trailers or other equipment on
public roads.
"EEC" MULTI-POSITION TOWING HOOK
The "EEC" towing hook is used to tow farm equipment without braking systems,
with a maximum gross weight of 6000 kg.
The maximum vertical load on the towing hook is indicated inside the registration
documents for public road circulation.
The towing hook is installed on a plate with lateral slides so as to vertically slide
in multiple positions.
• nomenclature
A) "EEC" towing hook
B) upper position
C) slides for the sliding of the hook
WARNING! The use of the "EEC" towing hook on public roads may
be subject to restrictions in certain countries. The user must contact their local dealer before towing loads or
equipment on public roads.
To attach a trailer to the "EEC" towing
hook (figure 1), proceed as follows:
- remove the lower clip "A"
- remove the retaining pin "B"
- insert the eyelet of the equipment
inside the housing of the hook
- insert the pin "B"
- secure the pin "B" with the clip "A"
- connect the trailer lights to the
appropriate electrical outlet (see
relevant paragraph)
To move the towing hook onto the
multi-position plate, follow the
instructions below (figure 2):
- if you want to use the highest positions of the slide, lift the upper guard "B"
- extract the release device "D"
- grasp the handle "E", lift and move the hook to the desired height
- lower the handle "E" and check that the device "D" is correctly inserted
