10 - ELECTRICAL SYSTEM
10 - 4

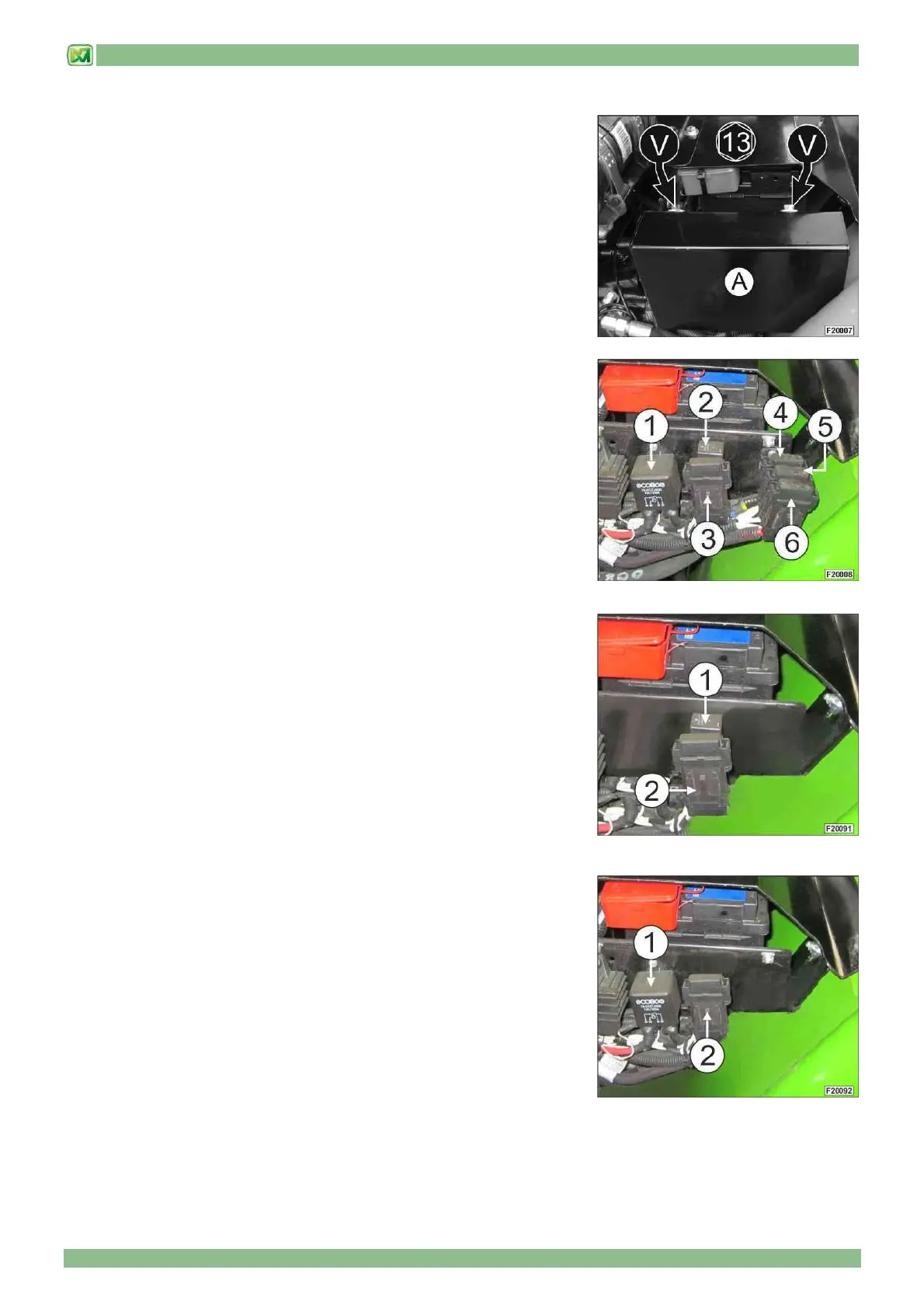

• FUSES IN ENGINE COMPARTMENT
The fuses and relays located in the engine compartment are protected by cover
(A). Remove cover (A) by unscrewing screws “V” with the hex wrench indicated.
DEUTZ 74 kW (100CV) ENGINE
1) Glow plug relay
2) Fuel pump relay
3) Fuel pump fuse (20A)
4) Engine ECU fuse (30A)
5) Air conditioning fuse (40A)
6) General system fuse (80A)
KUBOTA 55.4 kW (75 CV) ENGINE
1) Glow plug relay
2) Glowplugs fuse (40A)
KUBOTA 55.4 kW (75 CV) ENGINE
1) Glowplug relay
2) Glowplugs fuse (80A)
END OF SECTION
PUBLICATION DATE OF THIS MANUAL: September 2014
