8 - ATTACHMENTS AND OPTIONAL EXTRA
8 - 22
REAR HYDRAULIC OUTLET

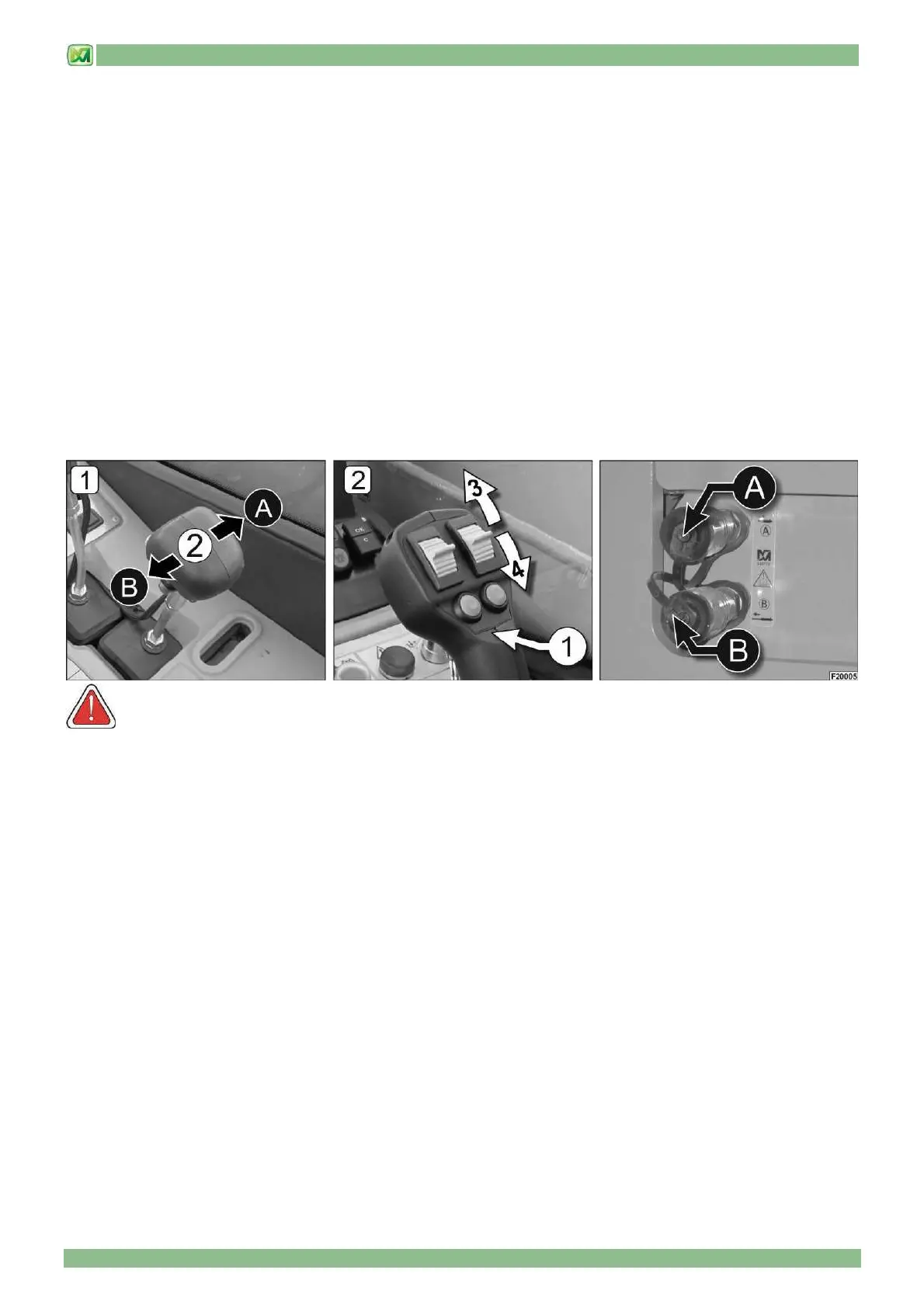

The provision for mixing bucket control may be of 2 types depending on the distributor fitted to the machine:
- if the machine is fitted with levers, the mixing bucket is operated using control lever (2) (configuration 1)
- if the machine is fitted with a joystick, the mixing bucket is operated using the joystick (1) (configuration 2)
The 2 options available are analysed separately below; cross-check your machine to verify which configuration applies and
refer to the relative section for the operating instructions.
• CONFIGURATION 1
- place the lever (2) in direction "L" or "M" to activate the corresponding rear hydraulic sockets (see photo)
• CONFIGURATION 2
- rotate the right roller of the joystick (1) to position "3A" to activate the corresponding hydraulic connection.
- rotate the right roller of the joystick (1) to position "4B" to activate the corresponding hydraulic connection.
WARNING! The hydraulic system of the rear hydraulic outlet is not equipped with valves or seals able to
support lifted loads (for example a dumb body). For these kind of use verify that the attachment is equipped with
appropriate blocking system against accidental load descent.
Before operating with the rear hydraulic outlet, be sure to have disconnected both the hydraulic circuit of the
attachment locking system and the hydraulic line to the attachment fitted to the front carriage.
With work completed, disconnect the rear hydraulic outlets; if not, when using the attachment fitted to the front
carriage, the equipments linked to the rear hydraulic outlet would be activated.
The maximum working pressure of the rear hydraulic outlet is 210 bar.
