6 - ORDINARY MAINTENANCE
6 - 9

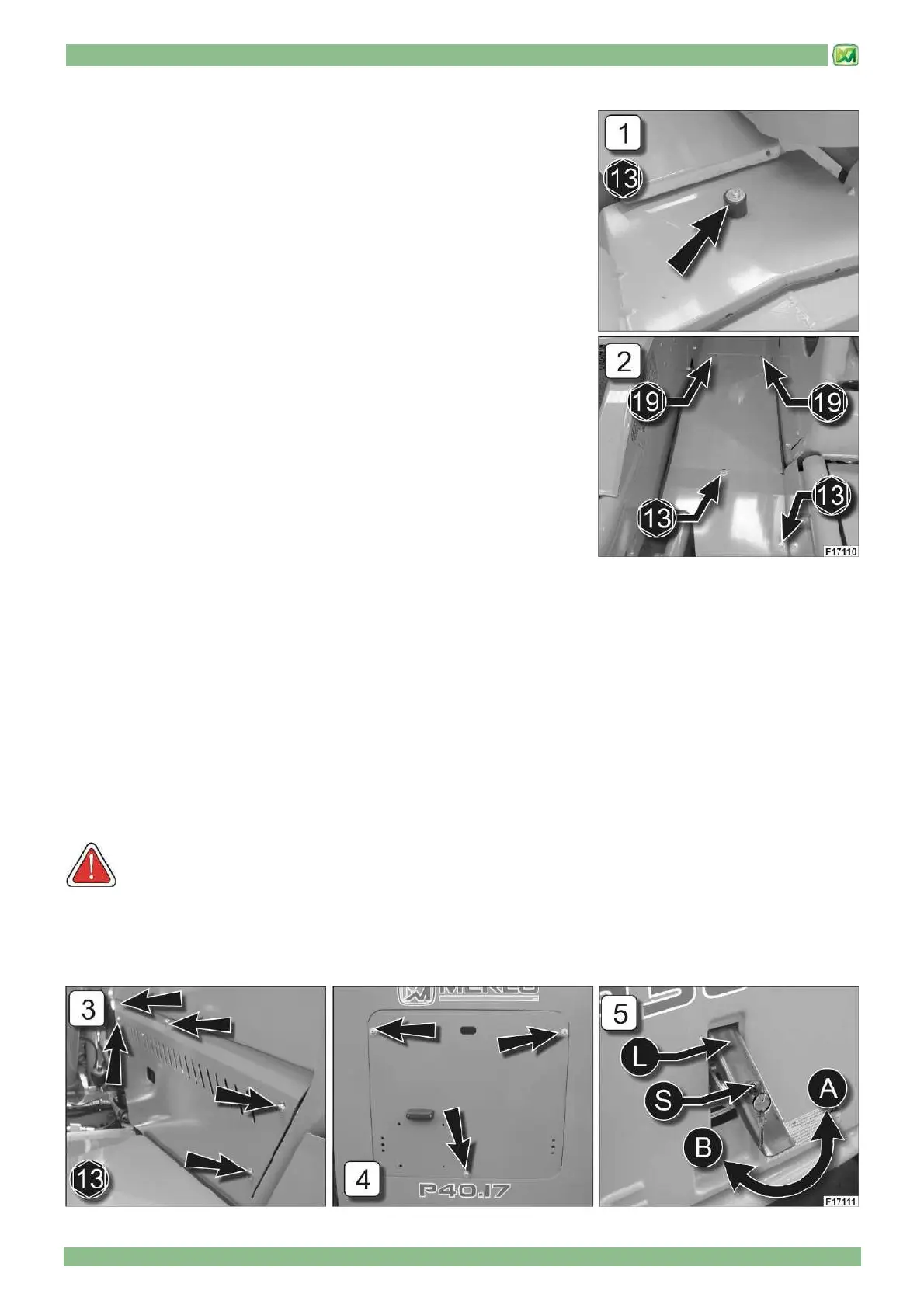

COVERS
Before carrying out some ordinary maintenance operations on your machine, you
are required to either remove or open the following covers:
- COVER 1
COVER 1 is located in the front-central part of the machine chassis and contains
certain components of the front differential, front universal joint, braking system
and Long-life tie-rods. To remove COVER 1, unscrew the screw with an
appropriate wrench
- COVER 2
COVER 2 is located between the engine and the cab and houses the universal
joints, gearbox and hydrostatic engine . To remove COVER 2, unscrew the 3
screws shown in the picture with an appropriate wrench
- COVER 3
COVER 3 is located next to the cab and contains the hoses and fittings of the
hydraulic system. To remove COVER 3, unscrew the 5 screws shown in the
picture with an appropriate wrench
- COVER 4
COVER 4 is located in the rear part of the machine and contains components of
the telescopic boom (slide pads, lock valve for the extension jack, etc.). To
remove COVER 4, unscrew the 3 screws shown in the picture with an
appropriate wrench
- COVER 5
COVER 5 (engine bonnet) houses the machine's diesel engine and all related components (filters, small tanks, radiator,
battery, inlet pipes, pumps, etc). Proceed as follows to open COVER 5:
- release the lock using the key "S" provided
• pull lever "L" towards yourself
• lift the bonnet completely until it automatically stays open
The bonnet is held open by a gas strut placed inside the engine compartment.
Proceed as follows to close COVER 5:
• lower the bonnet completely
• push lever "L" towards the machine
• use key "S" supplied to lock the engine bonnet
WARNING!!
NEVER open the bonnet while the engine is running.
To avoid the engine bonnet opening and to prevent moving or hot parts from accidentally coming into contact with
non-authorised personnel, the security keylock on the engine bonnet must be locked. Keep the "S" key together with
the engine ignition key (8).
