MERLO PANORAMIC - Description of the Command Panel (P1); Instrument Panel (C) Description

2 - MACHINE TECHNICAL INFORMATION
2 - 14

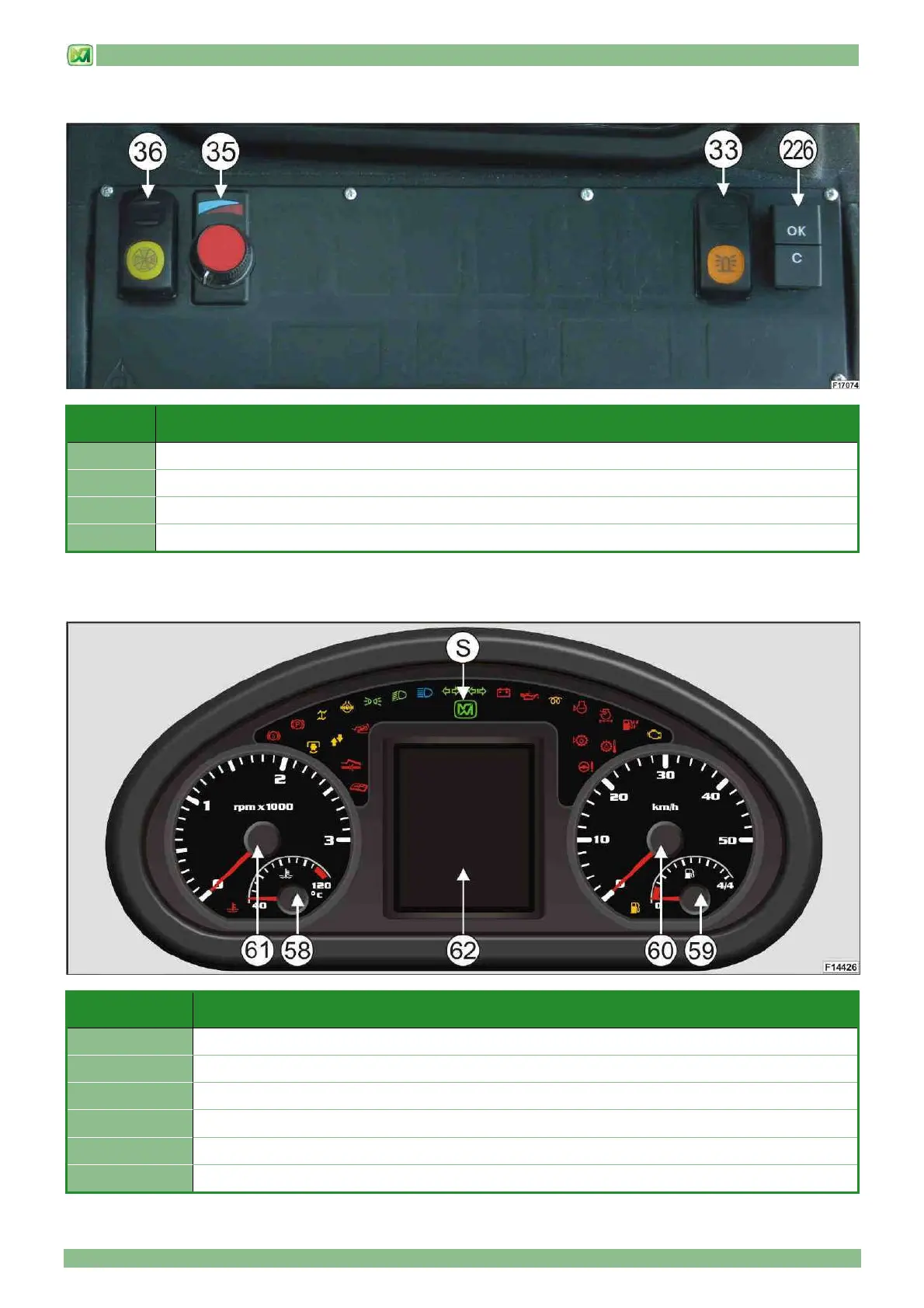

DESCRIPTION OF THE COMMAND PANEL (P1)
REF. DESCRIPTION
33
Roof flashing light switch
35
Heating cock
36
Fan switch for cab heating
226
Adjustment buttons for instrument panel settings (C)
INSTRUMENT PANEL (C) DESCRIPTION
REF. DESCRIPTION
58
Coolant thermometer
59
Fuel level indicator
60
Speedometer
61
Tachometer
62
Hour counter / clock LCD display
S
Control lights
