MERLO PANORAMIC - Engine Compartment - Nomenclature

6 - ORDINARY MAINTENANCE
6 - 11

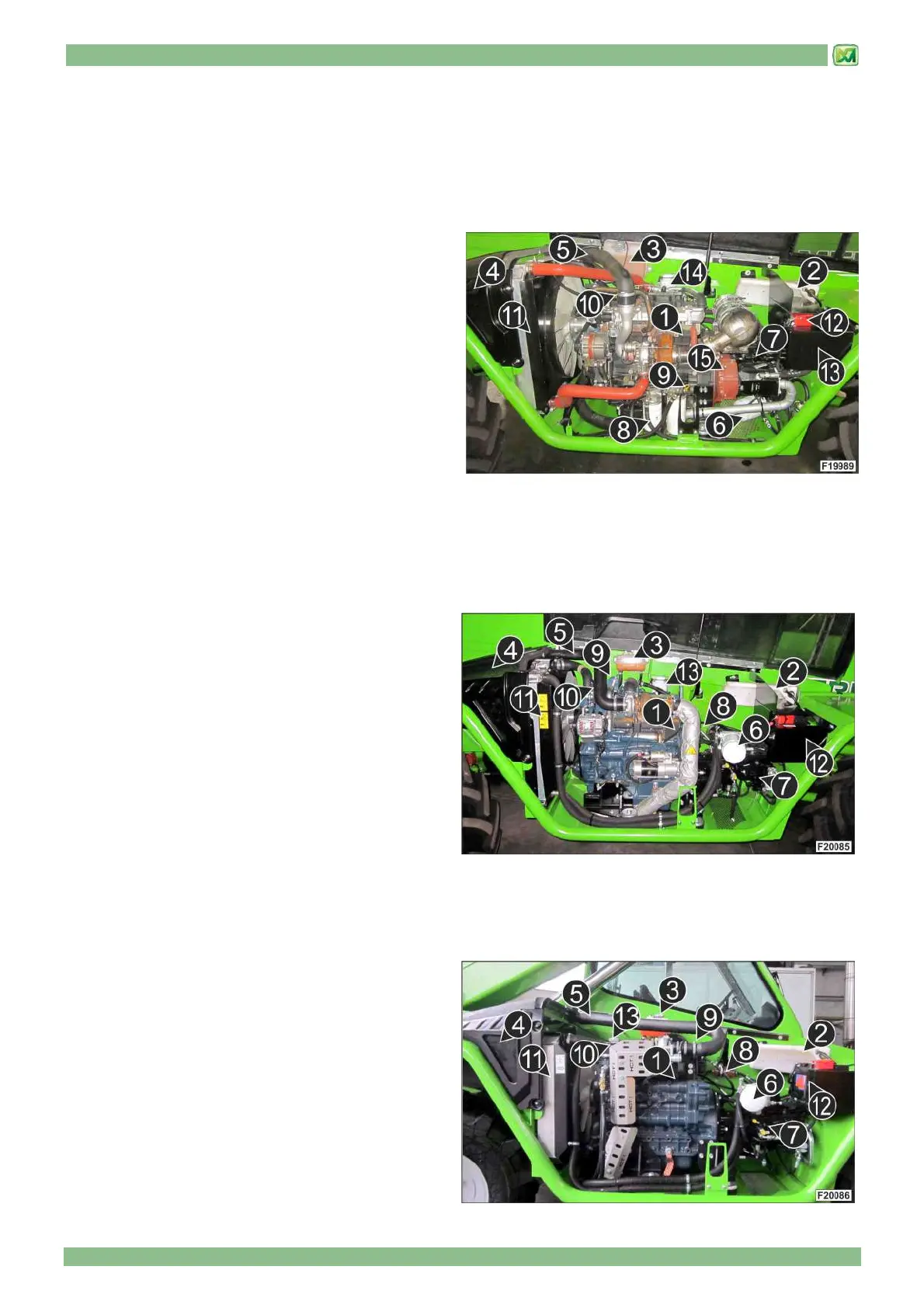

ENGINE COMPARTMENT - NOMENCLATURE
Pay particular attention to the position of the engine compartment components mentioned in this paragraph, because they will
be mentioned again and described in the MAINTENANCE paragraphs.
• (P37.12PLUS – P38.12PLUS – P38.13PLUS – P38.14PLUS – P40.17PLUS – P40.9PLUS – P60.10 – P72.10)
DEUTZ 74 kW (100CV)
1) Diesel engine
2) Hydrostatic transmission oil level small tank
3) Engine coolant level small tank
4) Engine air intake filter
5) Engine air intake pipe
6) Hydrostatic transmission oil filter
7) Hydrostatic pump
8) Diesel oil filter
9) Engine oil dipstick
10) Engine oil filler cap
11) Radiator
12) Battery
13) Fuses and relays
14) Gear box oil bleeding small tank
15) Chain transfer unit
• (P38.13EE – P40.17EE – P60.10EE – P72.10EE)
KUBOTA 74 kW (100CV)
1) Diesel engine
2) Hydrostatic transmission oil level small tank
3) Engine coolant level small tank
4) Engine air intake filter
5) Engine air intake pipe
6) Hydrostatic transmission oil filter
7) Hydrostatic pump
8) Diesel oil filter
9) Engine oil dipstick
10) Engine oil filler cap
11) Radiator
12) Battery
13) Gear box oil bleeding small tank
• (P38.12 – P38.13 – P38.14 – P40.17)
KUBOTA 55,4 kW (75CV)
1) Diesel engine
2) Hydrostatic transmission oil level small tank
3) Engine coolant level small tank
4) Engine air intake filter
5) Engine air intake pipe
6) Hydrostatic transmission oil filter
7) Hydrostatic pump
8) Diesel oil filter
9) Engine oil dipstick
10) Engine oil filler cap
11) Radiator
12) Battery
13) Gear box oil bleeding small tank
