INSTRUMENT PANEL (C) DESCRIPTION

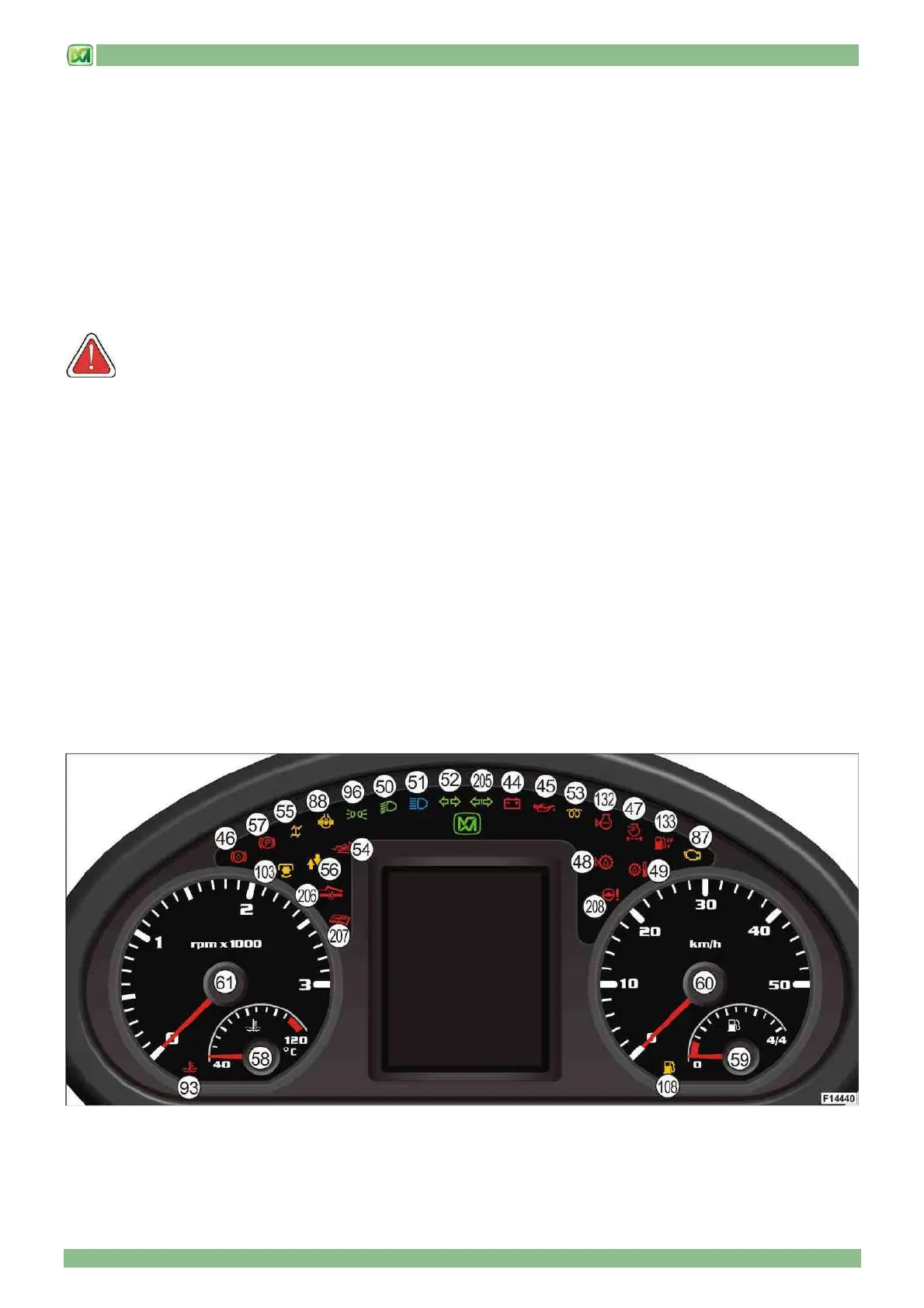

The instrument panel on your machine shows the following information:
- ANALOGUE TACHOMETER (61)
The analogue tachometer is used to:
- check the engine usage speed
- adjust the engine speed when using the manual lever (86) (see the relevant paragraph)
- allow specialised personnel to perform maintenance operations
- ANALOGUE TACHOMETER (60)
The analogue tachometer is used to check the drive speed on roads.
WARNING!
Always respect current regulations when driving on public roads in the country where your machine is used.
- INDICATOR SHOWING THE TEMPERATURE OF THE ENGINE COOLANT (58)
When using the machine, check the temperature of the engine coolant at regular intervals. If the temperature reaches the
upper limit (indicated by a red line and the yellow indicator light ON), you must switch off the engine immediately and wait for it
to cool down.
Check the level of the motor coolant too, as explained in the "ROUTINE MAINTENANCE" chapter.
- FUEL LEVEL INDICATOR (59)
This instrument indicates the level of fuel in the tank. When topping up the level, only use the fuel indicated in Standard EN590.
For further information, refer to "FUEL AND LUBRICANTS".
- INDICATOR LIGHTS ON THE INSTRUMENT PANEL
The instrument panel contains indicator lights of various colours, that inform the operator:
- when a command is switched ON (green or blue light ON)
- when a device requiring special usage attention has been activated (yellow light ON)
- when an alarm has been activated (red light ON and buzzer sounding continuously)
