GENERAL OVERVIEW OF THE CAB
• OPENING THE DOOR

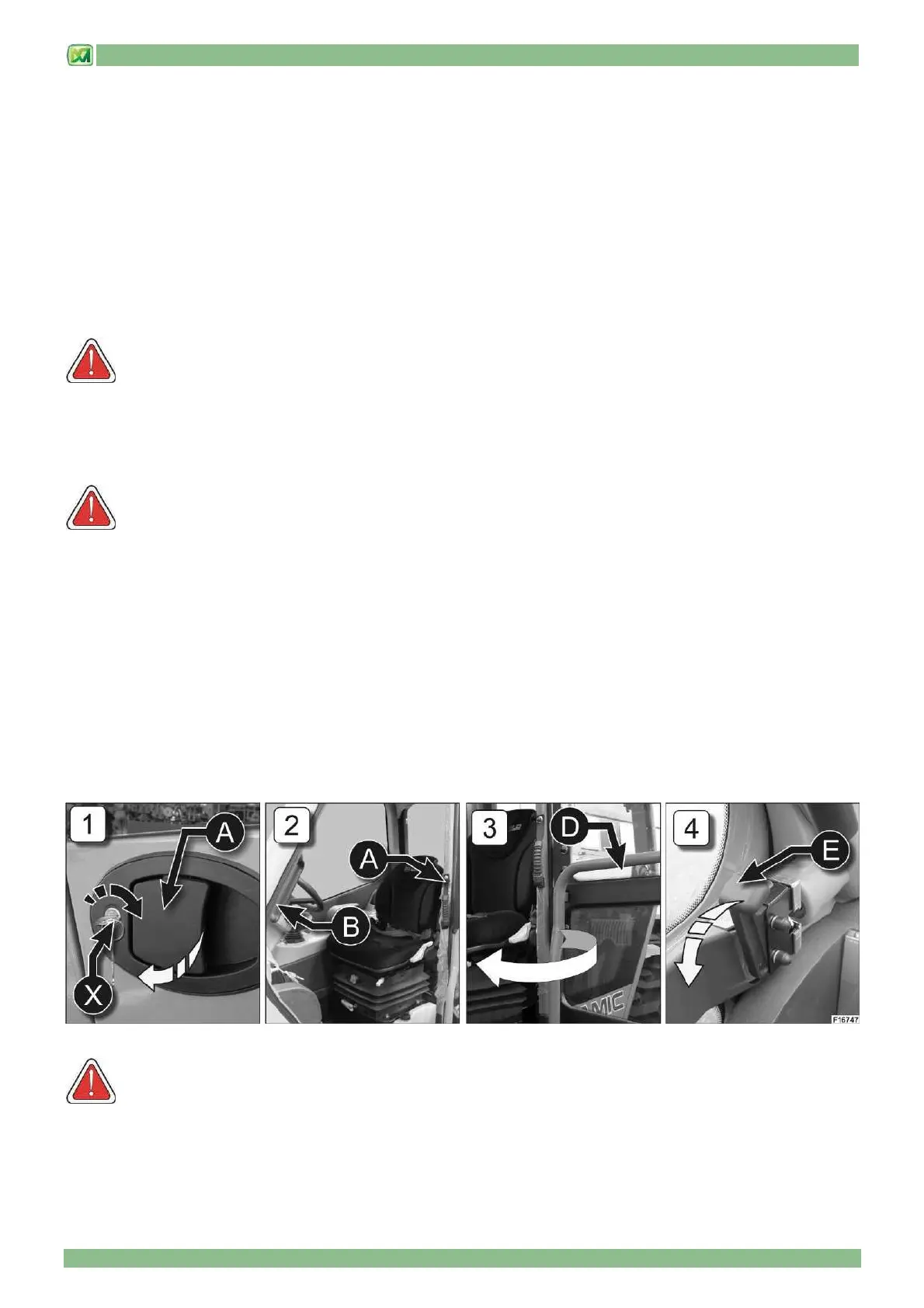

To open the driving cab door, release the lock by rotating the key "X" (supplied) clockwise, then act on handle "A" as indicated
in the figure (1).
• ACCESSING THE CAB
In order to access the cab correctly, please follow these instructions:
- open the cab door
- look towards the machine and grasp handles "A" and "B", located on the two sides of the cab (fig.2)
- use the steps to access the cab
ATTENTION! Use the fitted supports only when accessing the cab (handles "A" and "B", non-slip steps). Do
not grasp any control (steering wheel, switches, instrument panel) to access the driver’s cab. Always keep the steps
and handles to access the cab clean and in perfect operating condition.
• CLOSING THE DOOR
Before using the machine, close the cab door by grasping the handrail "D" and pulling firmly inwards (fig.3).
ATTENTION! The lower part of the driver’s cab must always be closed, both during transfers with the machine
and when working.
• OPENING THE CAB DOOR FROM THE INSIDE
To open the cab door from the inside, simply pull lever "E" (fig.4) in the direction shown by the arrow.
• DESCENDING FROM THE DRIVER’S CAB
Use the appropriate supports (handles "A" and "B") to exit the cab.
Always perform these operations facing the machine.
• CLOSING THE CAB DOOR
Always close the door after descending from the driver’s cab. In the event of a prolonged stoppage or at the end of each
working day, it is recommended to close the cab door and lock it with the provided key, so as to prevent any unauthorised
tampering. To close the cab door, rotate the key "X" (supplied) anticlockwise.
• FIRE EXTINGUISHER INSTALLATION IN THE CAB
WARNING!
The person in charge (owner, responsible of the building site, etc.) must check whether it is necessary to mount a fire
extinguisher inside the cabin.
