• OPENING THE UPPER PART OF
THE DOOR

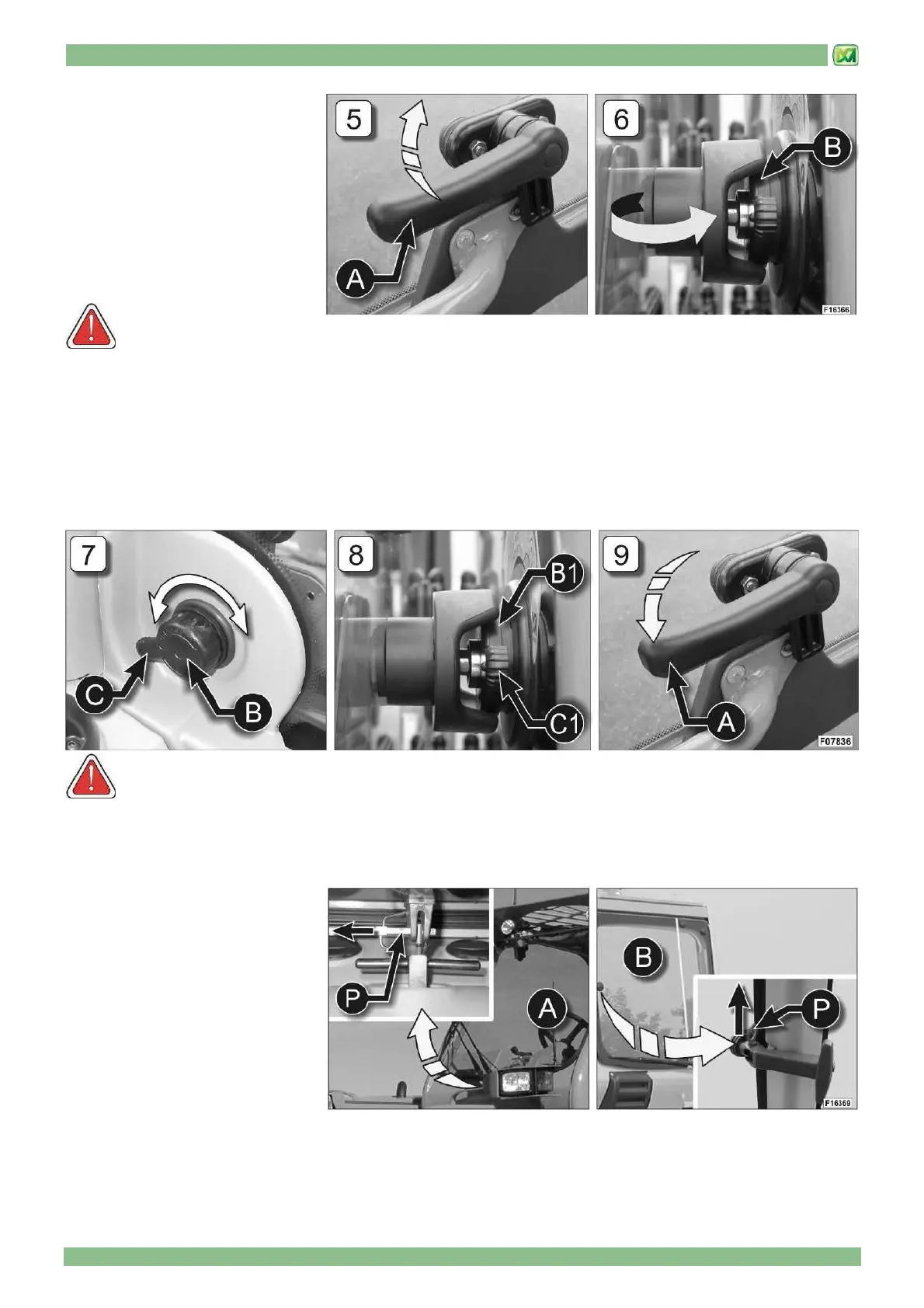

To open the upper part of the door,
proceed as follows:
- rotate handle "A" upwards
(direction indicated by the arrow)
(fig.5)
- completely open the upper part of
the door and hook it to the
appropriate external device "B"
(fig.6)
WARNING! Please
remember that the lower part of the door must be closed both during transfers with the machine and when working.
• CLOSING THE UPPER PART OF THE DOOR
To close the upper part of the door, proceed as follows:
- from the inside of the cab, release stop "B" by acting on its tongue "C" (fig.7)
- from the outside of the cab, release stop "B1" by acting on its tongue "C1" (fig.8)
- completely close the upper part of the door and lock it into position by rotating handle "A" downwards (in the direction
shown by the arrow) (fig.9)
WARNING! Before starting operating with the machine, the operator must ensure that the upper part of the
door cannot accidentally open.
• LEAVING THE CAB IN THE EVENT OF AN EMERGENCY
If it is not possible to leave the
vehicle using the cab door, it is
necessary to use the emergency exit:
FRONT WINDOW (A)
- Remove the fixing pivot "P" by
pulling in the direction indicated
- Fling the front window "A" open
and exit the cab with the utmost
care.
REAR WINDOW (B)
- Remove the fixing pivot "P" by
pulling in the direction indicated
- Fling the rear window "B" open and exit the cab with the utmost care.
