8 - ATTACHMENTS AND OPTIONAL EXTRA
1 - 32

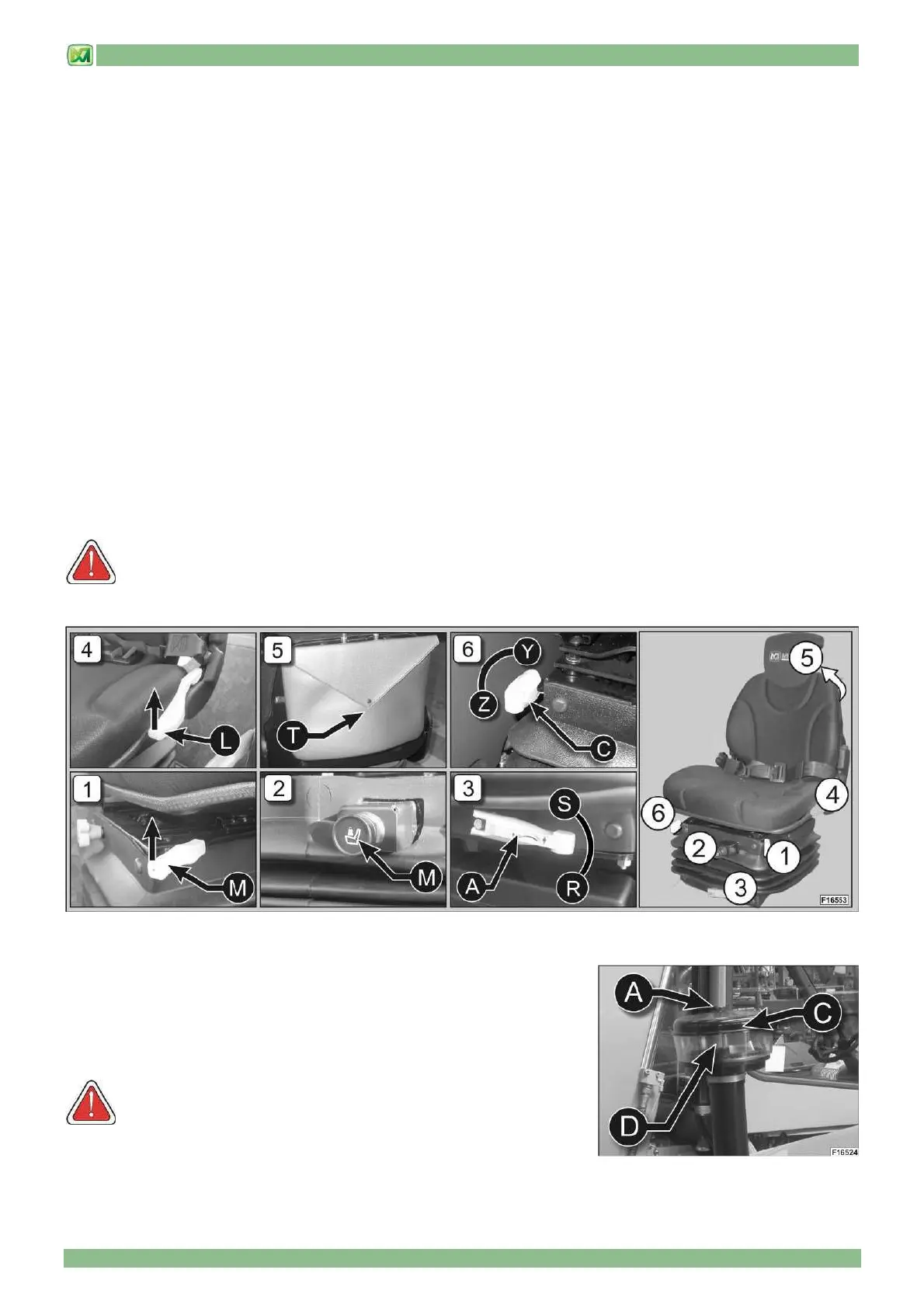

TYRE SEAT
SEAT SHIFT (1):
Lift lever "S" upwards, slide the seat forwards or backwards to obtain the required position and release the lever.
HEIGHT ADJUSTMENT (2):
The seat height can be adjusted by means of the hand lever "M", placed on the front side of the seat frame.
To lower the seat, pull the hand lever "M" outwards
To lift the seat, turn the ignition key in position "R" and press the hand lever "M".
SUSPENSION ADJUSTMENT (3):
To adjust the seat suspension use handle "A" located at the front side of the seat frame. Sit on the seat and turn the handle
until just the right degree of suspension is achieved for one's weight. (direction "R" to harden the suspension, direction "S" to
soften the suspension)
BACKREST ADJUSTMENT (4):
Sit with your back firmly against the backrest.
Lift lever "L" upwards to position the backrest to the required angle.
DOCUMENT HOLDER POCKET (5)
Located behind the seat for holding the machine documentation and small objects.
Always keep the "USE AND MAINTENANCE INSTRUCTIONS MANUAL" in the document holder pocket (T).
The machine is fitted with a pneumatic seat with a longitudinal anti-shock system making driving on the road and site
operations more comfortable (6):
- rotate lever "C" to position "Z" to engage the longitudinal suspension
- rotate lever "C" to position "Y" to disengage the longitudinal suspension making the seat rigid.
WARNING! It is forbidden and it is extremely dangerous to adjust the driver's seat while the vehicle is moving.
Position the driver's seat so that the driver can easily reach the vehicle controls.
CYCLONE PRE-FILTER
Remove the material deposited in pre-filter "A" as follows:
- remove wing nut "A"
- remove cover "C"
- remove decanting unit "D" and empty it completely taking care not to allow
impurities to fall in the air inlet hole.
WARNING!! Whenever the container becomes completely full, the
pre-filter function is lost.
