6 - ORDINARY MAINTENANCE
6 - 20

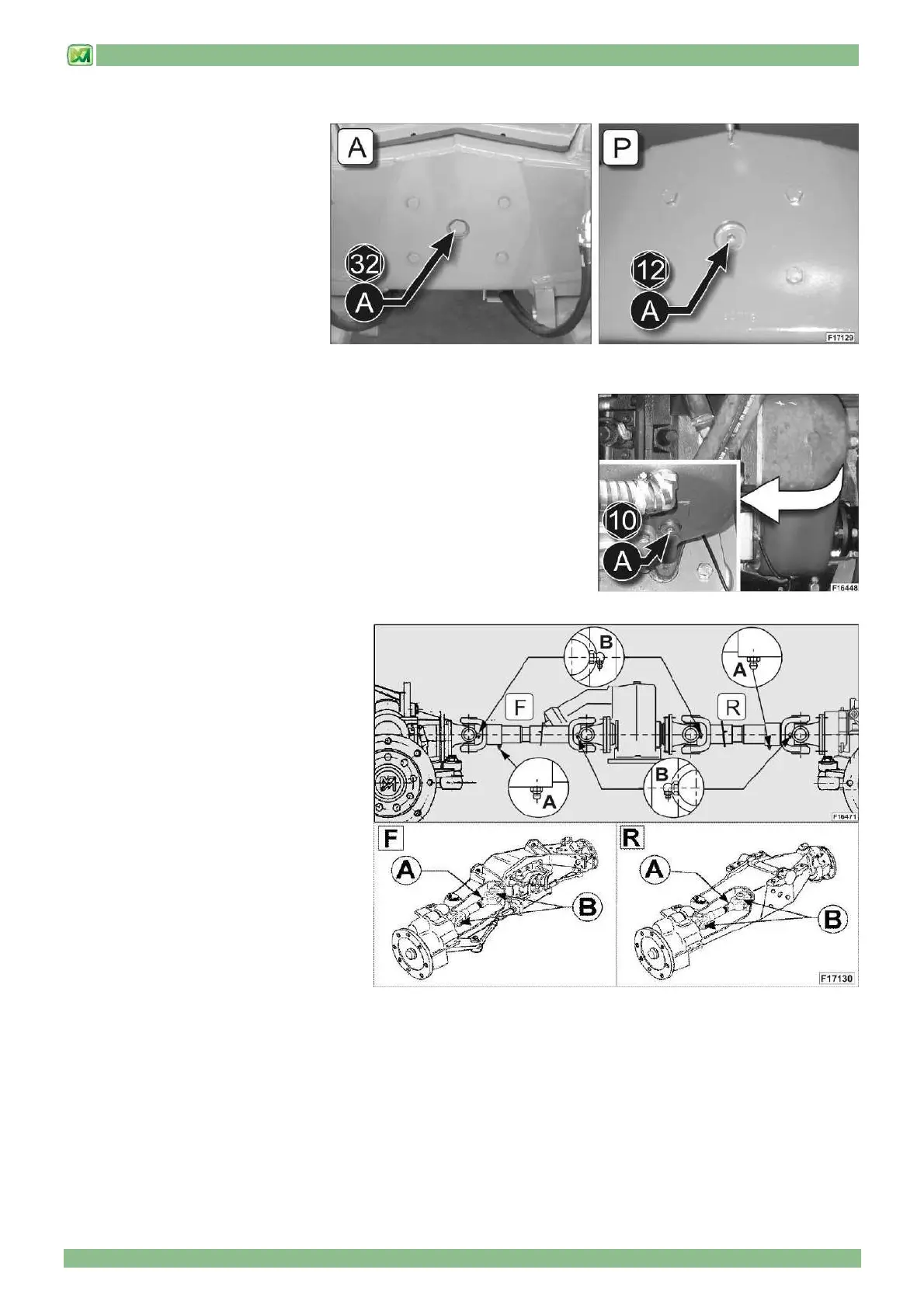

• FRONT AND REAR DIFFERENTIAL OIL
Carry out the following operations to
check the oil of the front and rear
differentials:
- remove the cap "A" on the front
bridge "A" as well as on the rear
bridge "P"
- check that the differential oil
reaches the edge of the hole.
- if necessary, top up with specific
oil (see the "OIL TABLE" in
chapter "STICKERS WITH
CONTROL DESCRIPTIONS -
LEAFLETS IN THE CAB")
- reinstall and tighten cap "A".
• GEAR BOX OIL
To check the gearbox oil level, first remove protection housing "1" (see
paragraph "COVERS"). Then carry out the following operations:
- Remove cap "A"
- Check that the gearbox oil reaches the edge of the hole
- If necessary, top up with the specific oil (see "OIL TABLE" in chapter
"STICKERS WITH CONTROL DESCRIPTIONS - LEAFLETS IN THE CAB")
- Reinstall and tighten cap "A".
- Refit the protection cover "1".
• UNIVERSAL JOINTS
Grease the points indicate every 200 hours
when used under heavy duty conditions.
FRONT AXLE
Universal joints between gear box and
differentials :
F Front universal joint
R Rear universal joint
Grease points shown in the picture:
A universal joint splines
B universal joint carrier
REAR AXLE
Universal joints inside axles:
A universal joint splines
B universal joint carrier
