8 - ATTACHMENTS AND OPTIONAL EXTRA
8 - 18

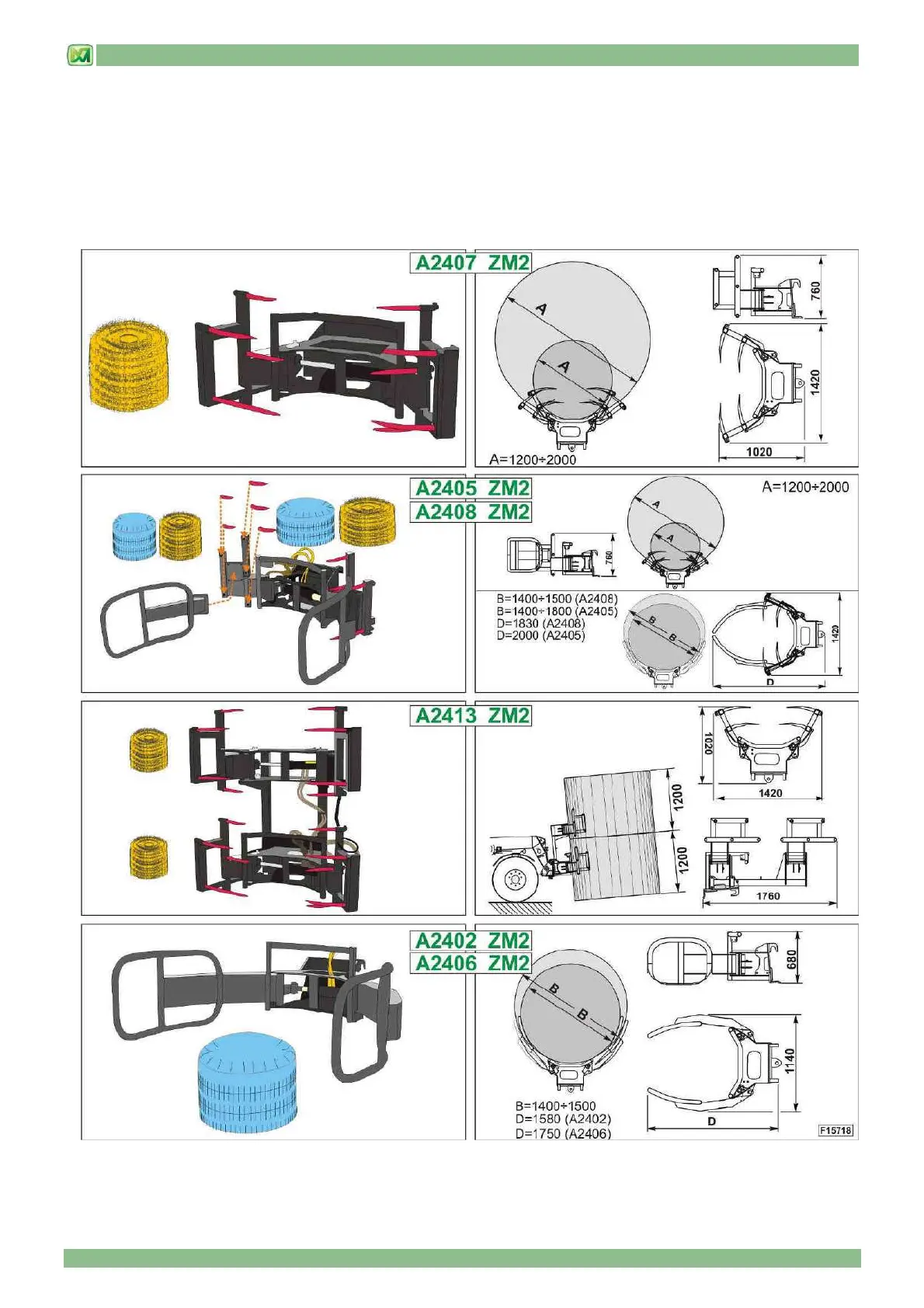

• BALE GRIPPER
Assemble the attachment on the carriage as described in the paragraph INSTALLATION OF QUICK-COUPLING
ATTACHMENTS in this chapter and use it with the auxiliary controls in the cab as described in the paragraph CONTROL OF
HYDRAULICALLY FUNCTIONING ATTACHMENTS.
(A2402) • Weight: 195 kg; • Capacity: 1000 kg / (A2405) • Weight: 250 kg; • Capacity: 1200 kg
(A2406) • Weight: 195 kg; • Capacity: 1000 kg / (A2407) • Weight: 175 kg; • Capacity: 1200 kg
(A2408) • Weight: 250 kg; • Capacity: 1200 kg / (A2413) • Weight: 295 kg; • Capacity: 1200 kg
