2 - MACHINE TECHNICAL INFORMATION
2 - 25
1. Metric grid
2. Lifting angle of the telescopic boom
3. Working area (in reference to section B)
4. Additional information

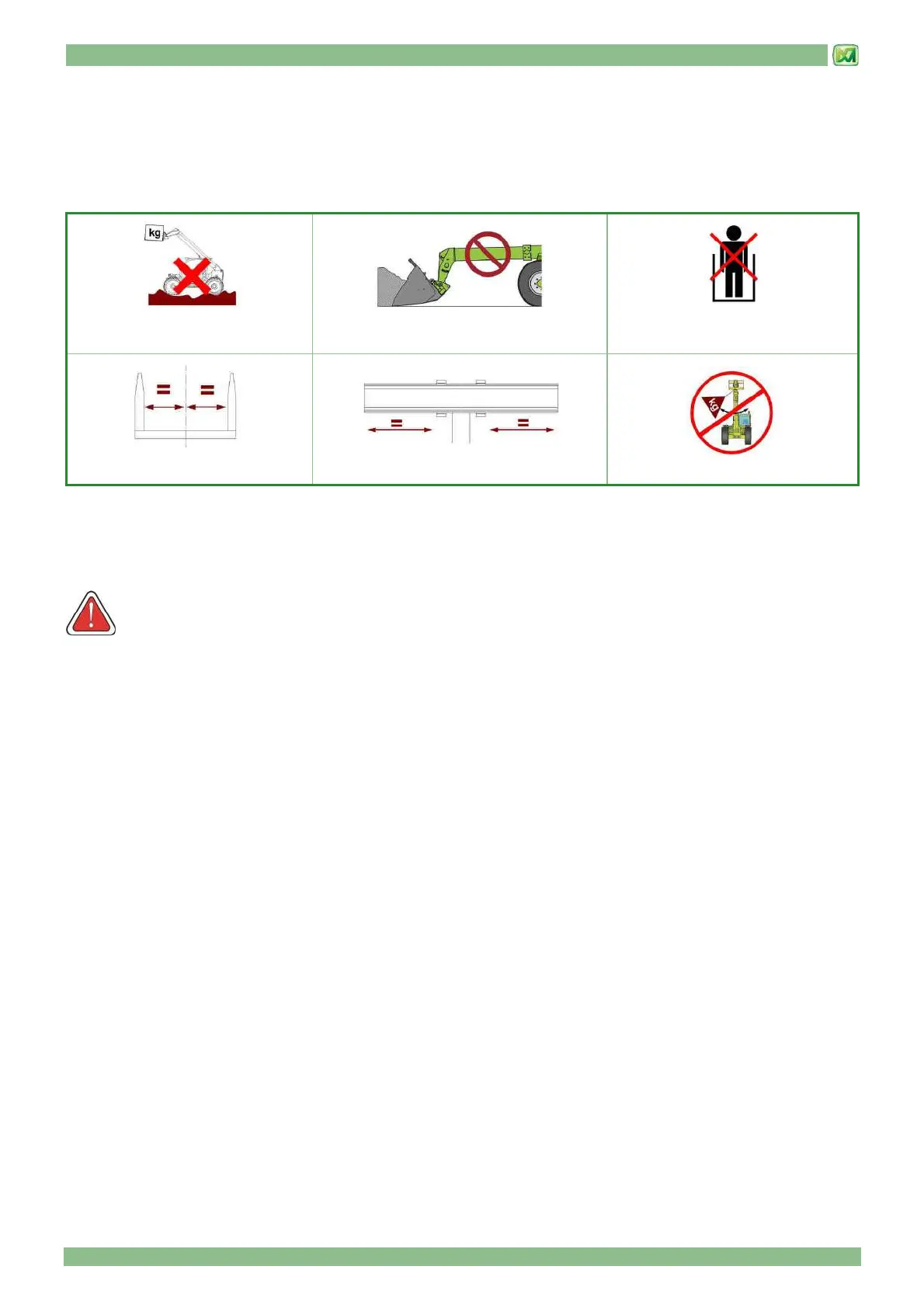

Use on rough and unprepared
terrain is prohibited
Filling the bucket with the boom extended is
prohibited
The transportation of people in the
handler is prohibited
Keep the forks symmetrically
centred
Keep the load symmetrically centred
Secure the oscillating load
5. Indications of machine at a standstill
a. on stabilisers
b. on tyres
WARNING! The load charts for the machine on tyres refers to a machine that is standing still, with its wheels
aligned to the chassis and positioned on a sufficiently even and solid ground.
6. Maximum gradients that can be exceeded in static lifting conditions of a load
7. Distance of the load's centre of gravity from the heel of the forks
8. Extension indication of the telescopic boom
9. Working area valid for the machine model indicated
