TRANSPORTING A LOAD

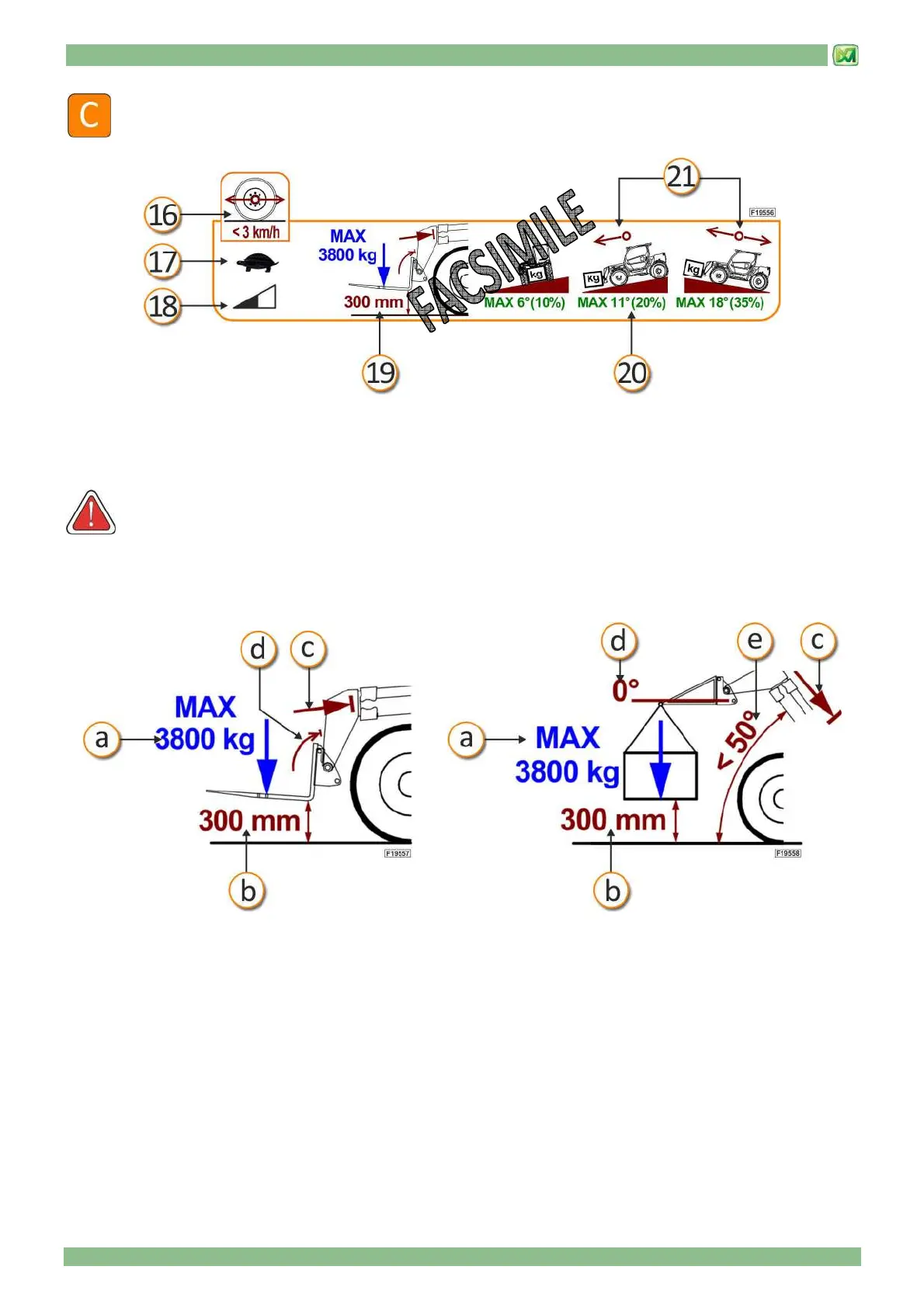

16. Indication of the machine moving at a speed less than 3 km/h
17. Load transportation in slow gear
18. Load transportation with partial throttle
WARNING!
Sudden acceleration can cause instability of the machine.
19. Position of load transportation
a. Maximum transportable capacity
b. Load transport height from the ground
c. Telescopic boom completely retracted
d. Carriage rotation: - carriage rotated completely backwards (example on the left)
- carriage perpendicular to the ground (example on the right)
e. Maximum transportation angle of a suspended load
20. Maximum gradients that can be exceeded when transporting a load
21. Direction of travel of the machine
