132

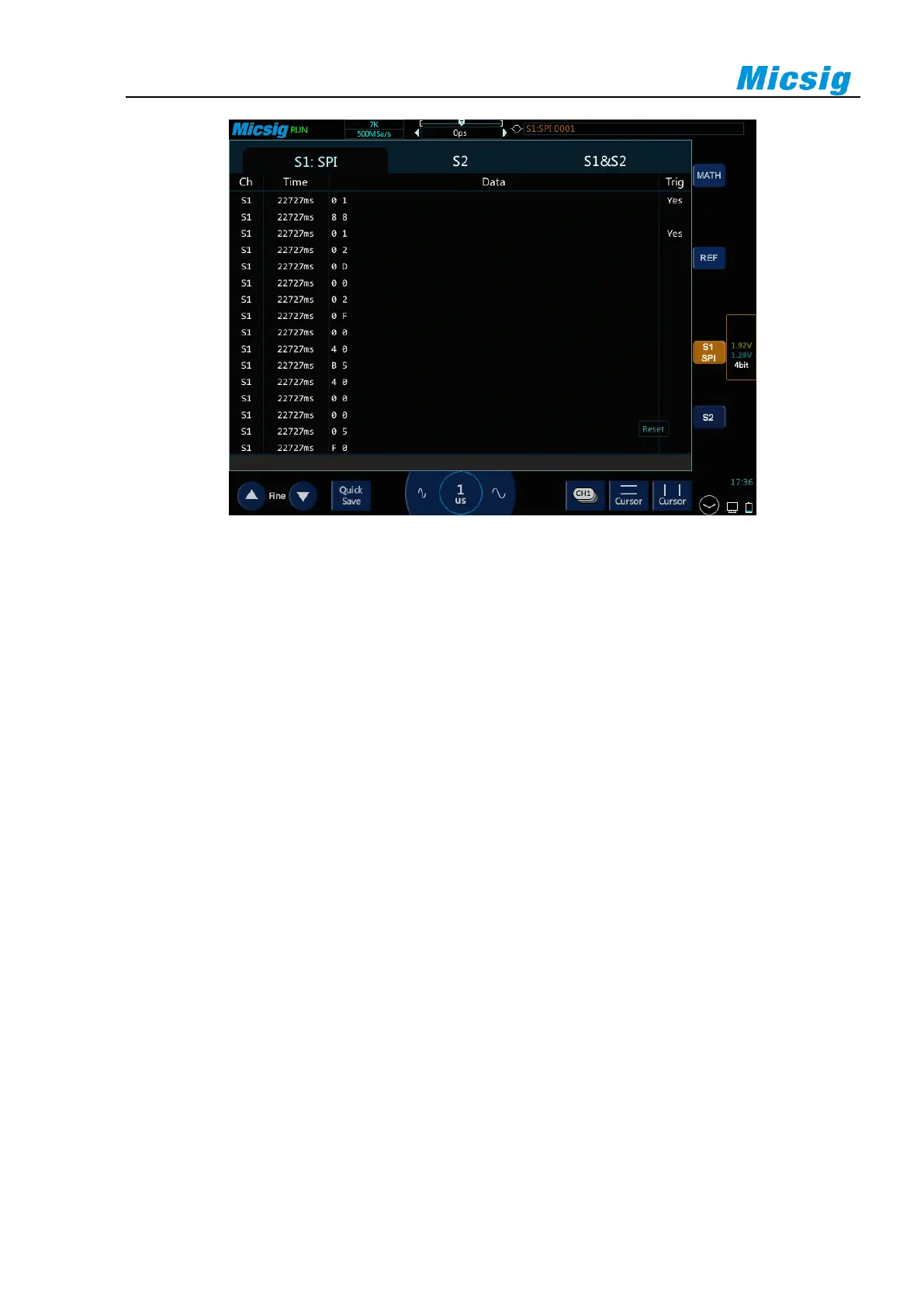

Figure 12-21 SPI Text Interface
SPI text interface description, as shown in Figure 12-21:
(1) Ch”: bus channel.
(2) “Time”: Time intervals between the last frames to current frames.
(3) “Data”: According to the data word length setting, the decode data is displayed. For example, if the
data word length is 8bit, only one byte displays in the data column; if the data word length is 16bit, 2
bytes display in the data column; if the data word length is 24bit, 3 bytes display; and if the data bits is
32bit, 4 bytes display.
(4) “Trig”: “Yes” means the frame reaches trigger condition.
Note: “One frame” is measured by the set “data word length” and can meet 1 data bit code stream.
