Chapter 5 Trigger System
53

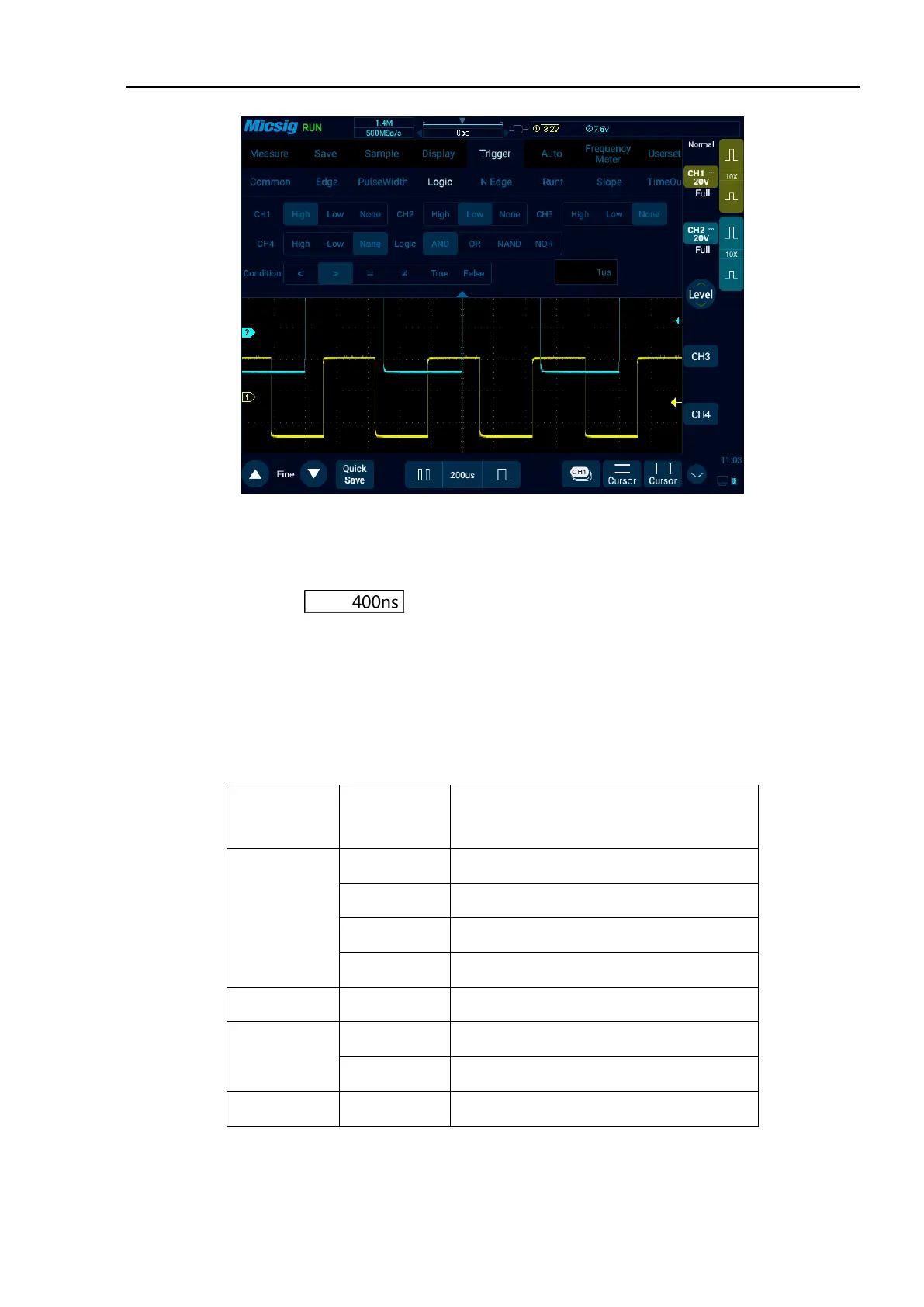

Figure 5-21 Logic Trigger
Trigger pulse width time can be set as 8ns~10s.
Tap the time setting box ( ) to pop up the time adjustment interface and adjust the logic time.
Please refer to the Pulse Width Adjustment section for details.
5.5 Nth Edge Trigger
When the trigger signal is triggered on the Nth edge after the specified idle time, it is Nth edge trigger. Menu
descriptions of the Nth edge trigger are shown in the table below:
Set CH1 as trigger signal source
Set CH2 as trigger signal source
Set CH3 as trigger signal source
Set CH4 as trigger signal source
Set signal trigger on the rising edge
Set signal trigger on the falling edge
Set trigger on Nth edge after idle time
Set CH1 to trigger on the 5th rising edge after 500us. The steps are as follows:
1) Tap “Trigger” on the main menu to open the trigger menu, select Nth edge trigger in the trigger type, and
