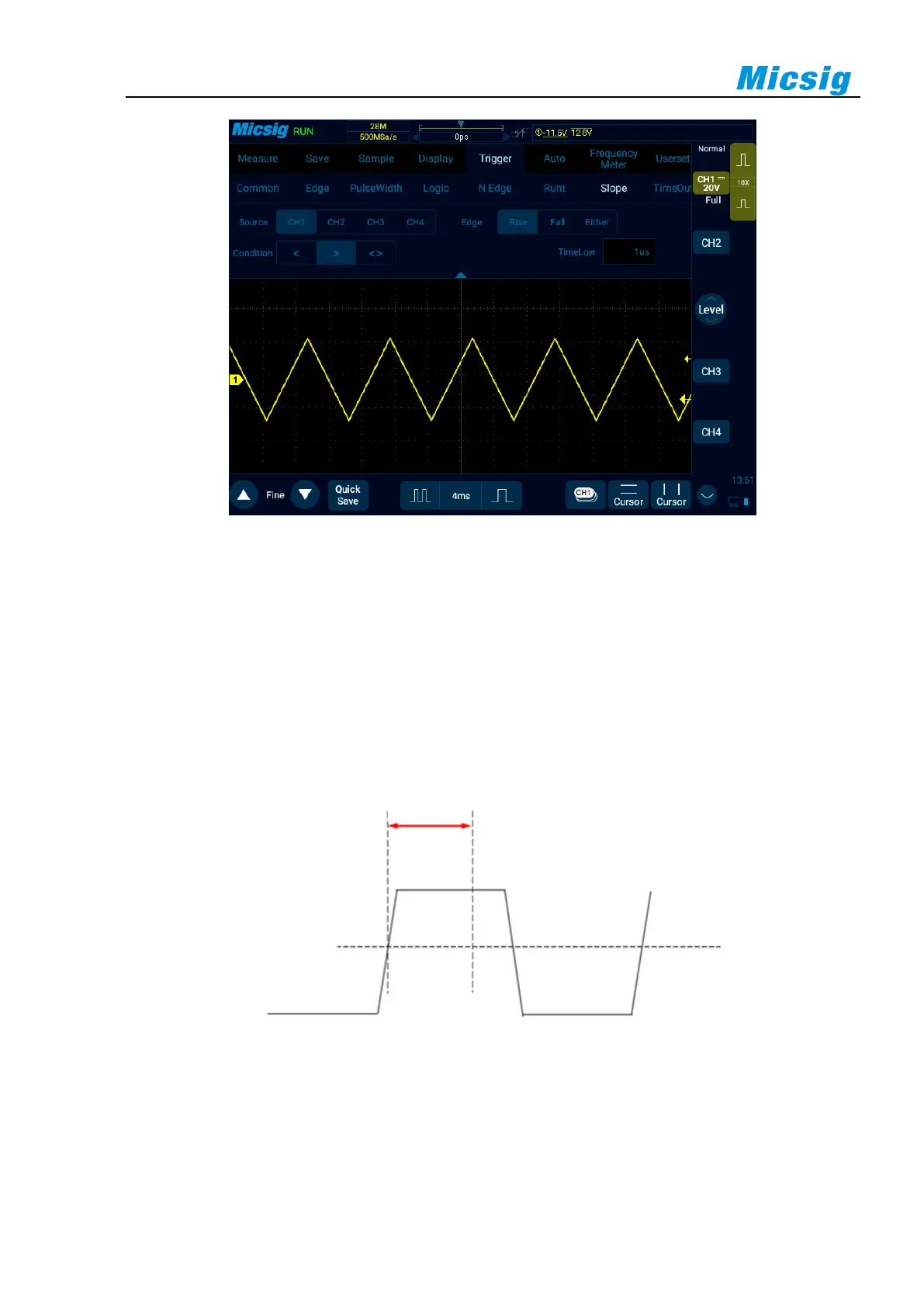

Figure 5-26 Slope Trigger Setting Menu
The slope hold time can be set as 8ns~10s.
Note: A stable trigger waveform can only be obtained by selecting the channel to which signals are connected as trigger
source.
5.8 Timeout Trigger
Timeout trigger happens when the time from the intersection of signal and trigger level and above (or below) the
trigger level reaches the set time, as shown in Figure 5-27:
Figure 5-27 Timeout Trigger Schematics
