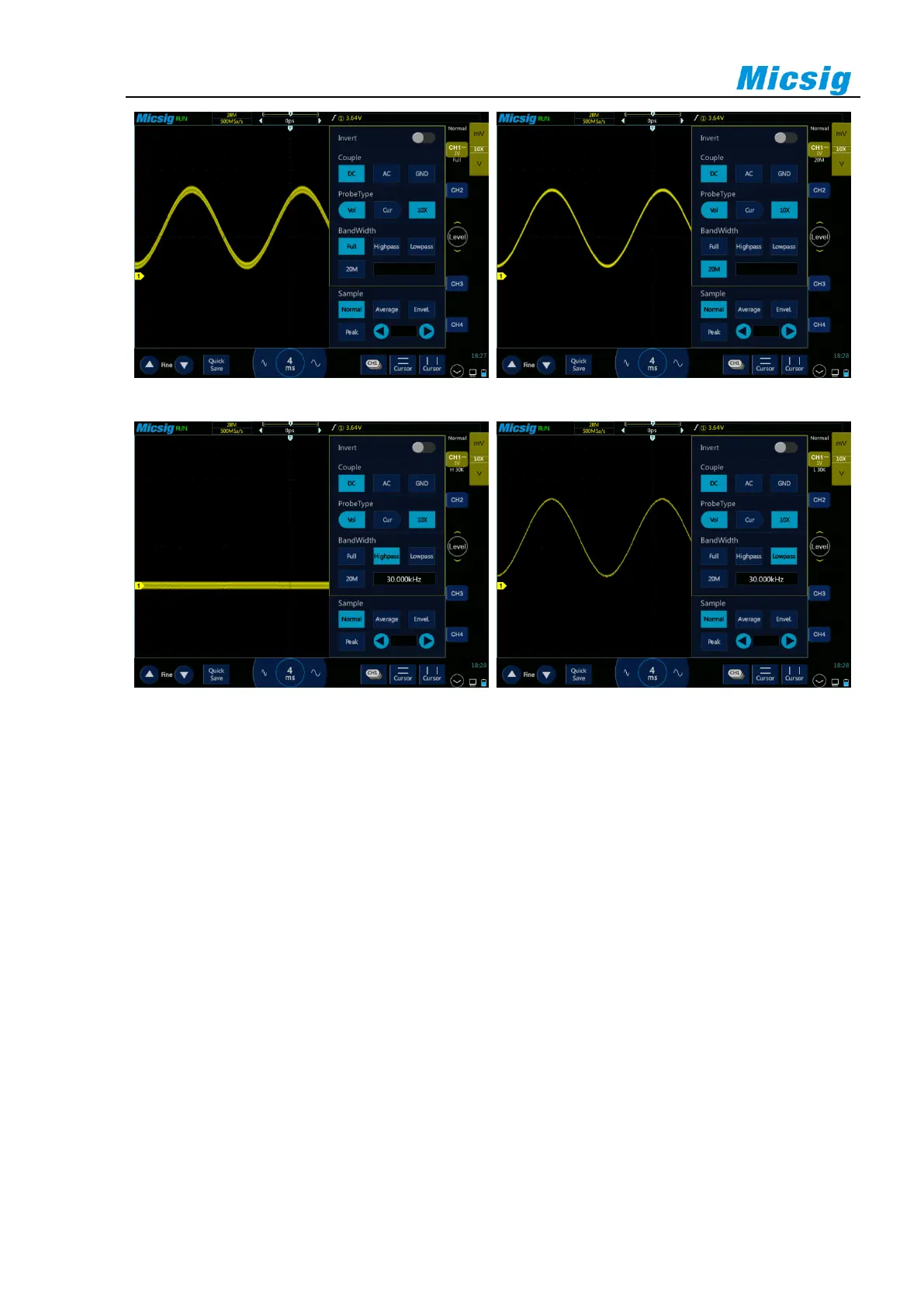

Figure 4-11 Full Bandwidth
Figure 4-12 20M Bandwidth
Figure 4-13 High Pass
Figure 4-14 Low Pass
4.4.3 Waveform Inversion
After selecting Invert, the voltage value of the displayed waveform is inverted. Inversion affects the way the
channel is displayed. When using a basic trigger, you need to adjust the trigger level to keep the waveform stable.
