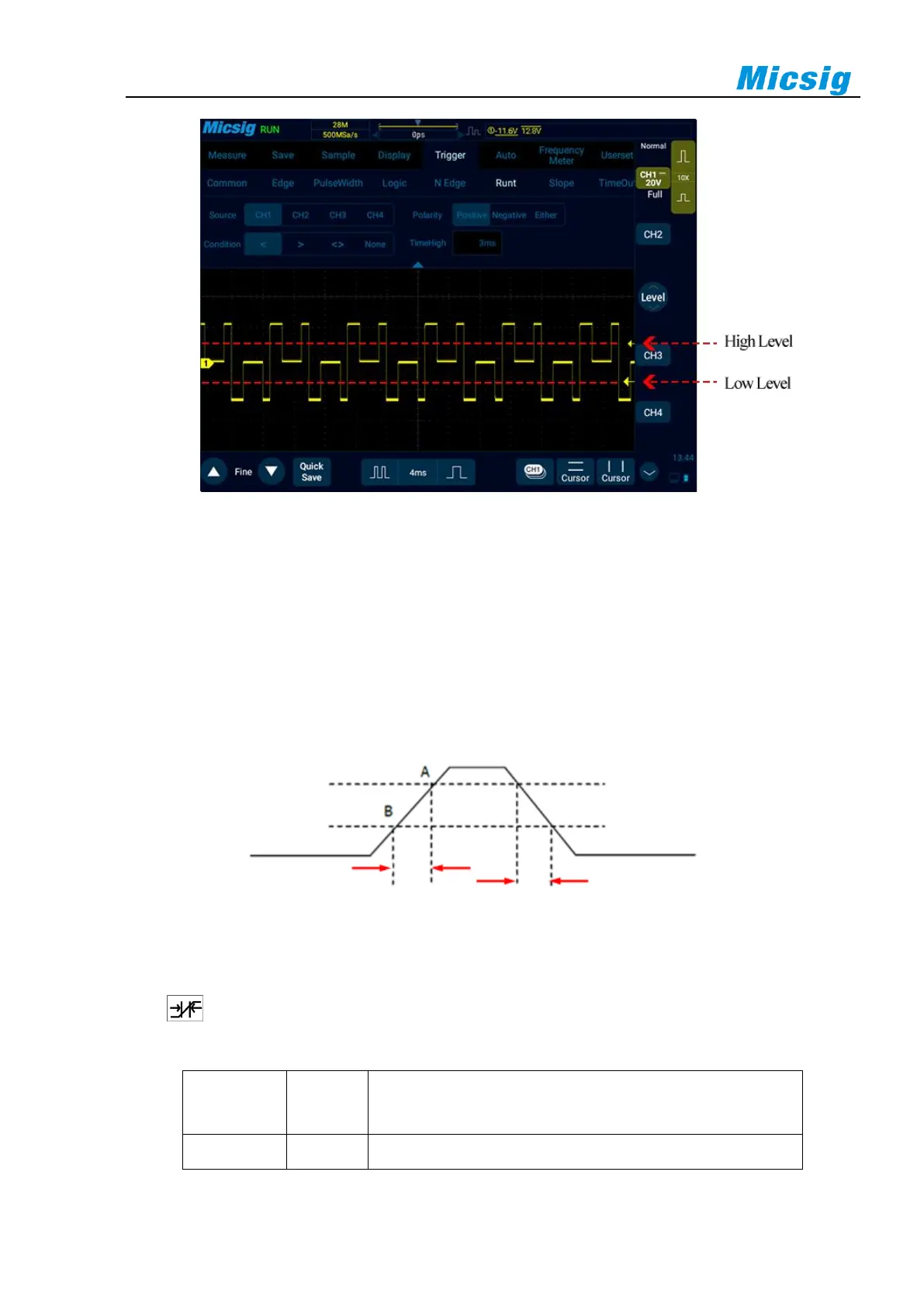

Figure 5-24 Runt Trigger Setting Menu
5.7 Slope Trigger
Slope Trigger means trigger when the waveform reaches a set time condition from one level to another.
Positive slope time: Time takes for the waveform to go from low to high.
Negative slope time: Time takes for the waveform to go from high to low.
As shown in Figure 5-25
Figure 5-25 Positive/Negative Slope Time
When the trigger signal slope has the hold time (8ns~10s), the trigger type on the top of the screen is only the
icon , and trigger happens when the set condition is reached. Slope trigger is suitable for observing
sawtooth or triangular waves. The slope trigger menu descriptions are shown in the table below:
