Chapter 4 Vertical System
29
Chapter 4 Vertical System
This chapter contains the detailed information of the vertical system of the oscilloscope. You are recommended
to read this chapter carefully to understand the set functions and operation of the vertical system of the tBook
mini series oscilloscope.
⚫ Open/close channel (analog channel, math function), set the current channel
⚫ Adjust vertical sensitivity
⚫ Adjust vertical position
⚫ Open channel menu
⚫ Set channel coupling
⚫ Set bandwidth limit
⚫ Waveform inversion
⚫ Set probe type
⚫ Set probe attenuation coefficient
⚫ Vertical expansion reference

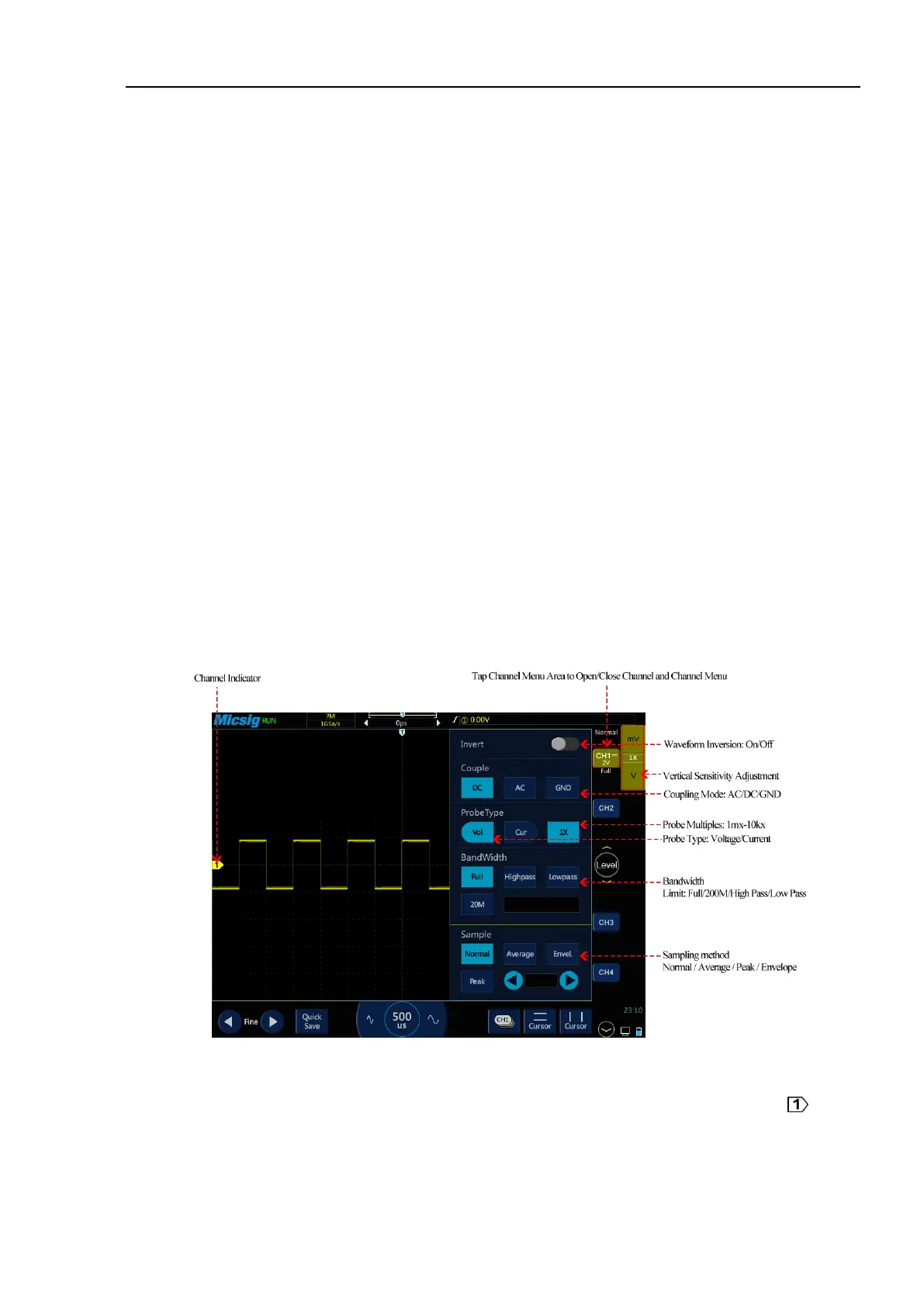

The figure below shows the “CH1 Channel Menu” displayed after opening the CH1 channel menu.
Figure 4-1 Channel Menu Display Interface
The ground level of each displayed analog channel signal is indicated by the channel indicator icon on the
far left of the display screen.
