Chapter 3 Horizontal System
This chapter contains the detailed information of the horizontal system of the oscilloscope. You are recommended
to read this chapter carefully to understand the set functions and operation of the horizontal system of the tBook
mini series oscilloscope.
⚫ Move the waveform horizontally
⚫ Adjust the horizontal time base (time/div)
⚫ Pan and zoom single or stopped acquisitions
⚫ Roll, XY
⚫ Zoom mode

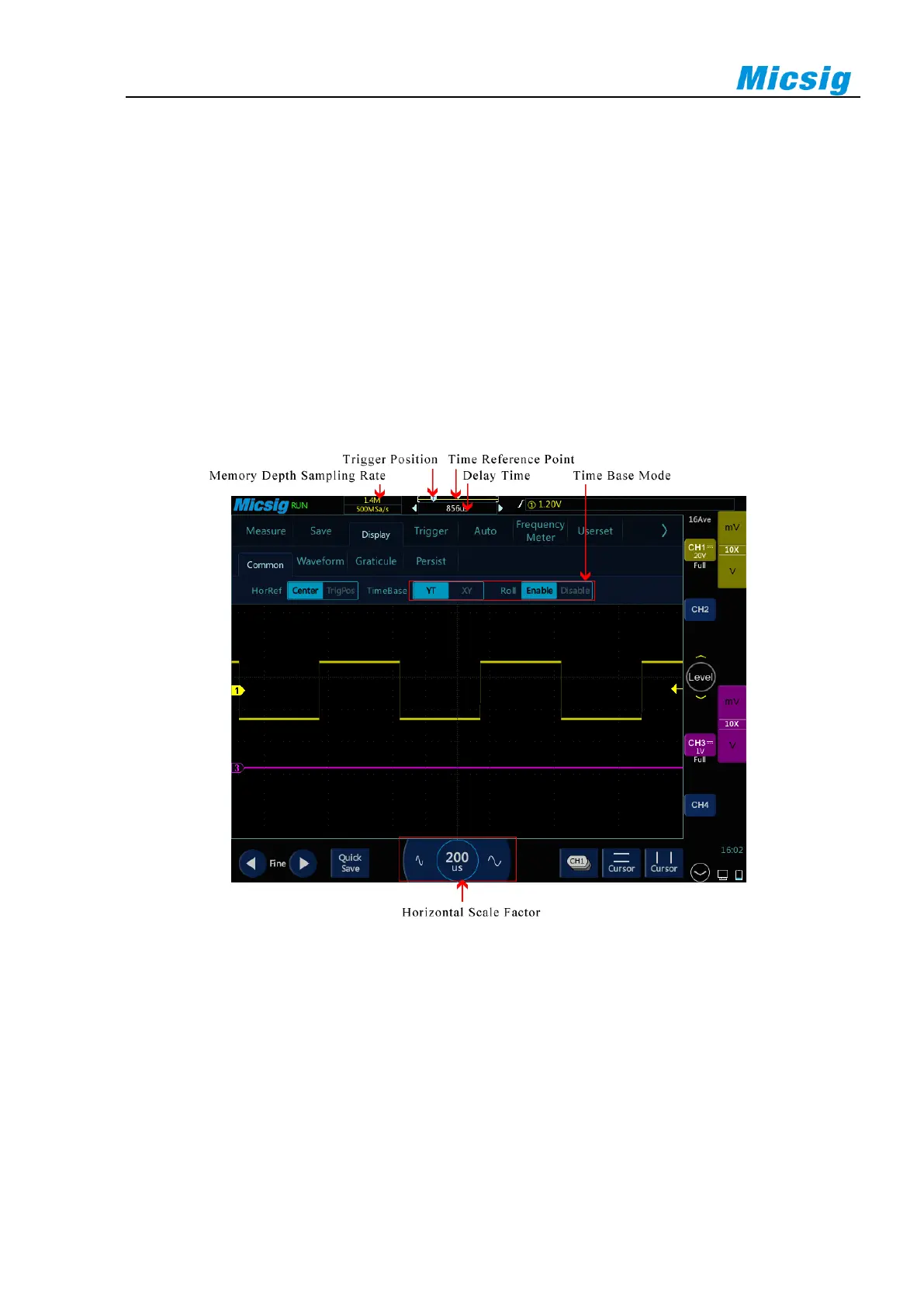

Figure 3-1 Horizontal system
