54
set the Nth edge trigger as follows, as shown in Figure 5-22:
⚫ Trigger source: CH1;
⚫ Time: 10ms;
⚫ Edge signal: rising;
⚫ Nth edge: 3

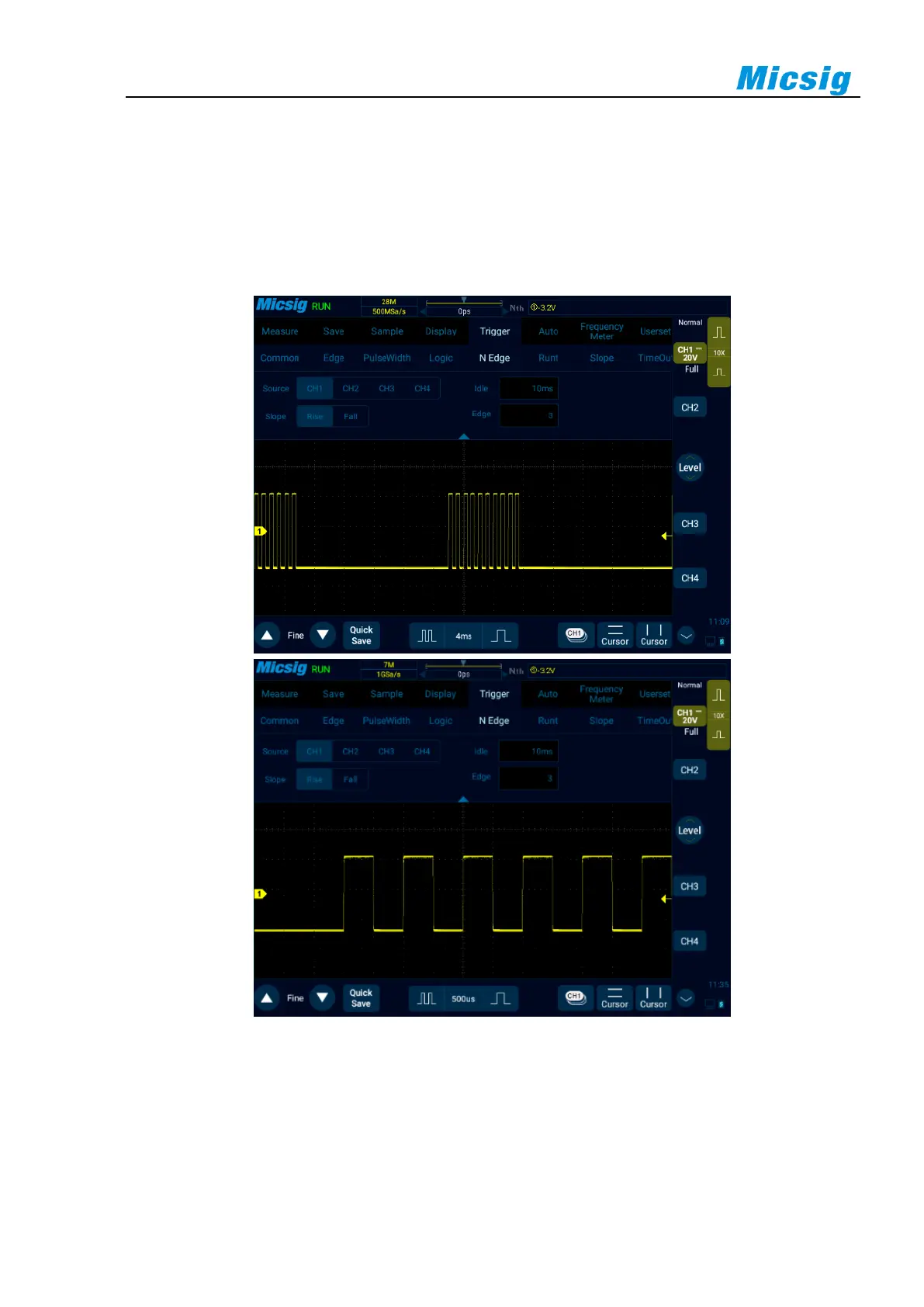

Figure 6-22 Nth Edge Trigger Menu
2) Adjust the trigger level to ensure that the waveform can be triggered stably, for example the trigger level is
set to -3.2V.
