of green or white.
(5) The sync error is displayed together with the word “SYNC”.

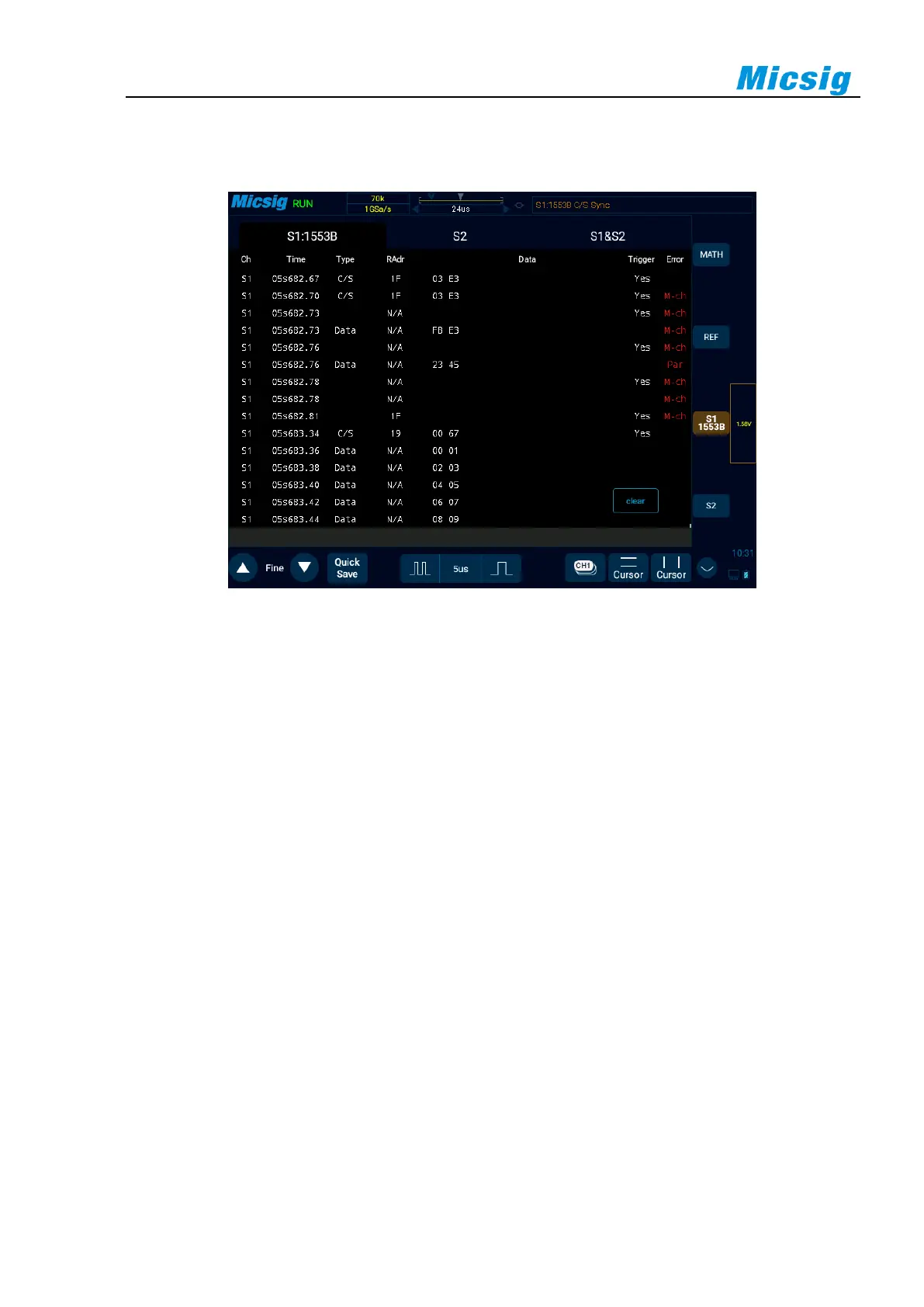

Figure 12-33 1553B Text Interface
1553B text interface description, as shown in Figure 12-33:
(1) “Ch”: bus channel.
(2) “Time”: intervals between the last read/write operations to current read/write operations.
(3) “Type”: frame type (data frame DATA, command/status frame C/S, others N/A).
(4) “RAdr”: remote terminal address, displayed in the selected numeration system (N/A for no content
display).
(5) “Data”: content of the transmitted information, displayed in the selected numeration system.
(6) “Trigger”: “Yes” means reach trigger condition.
(7) “Error”: displays the frame error type (parity error Par, Manchester coding error M-ch).
