22

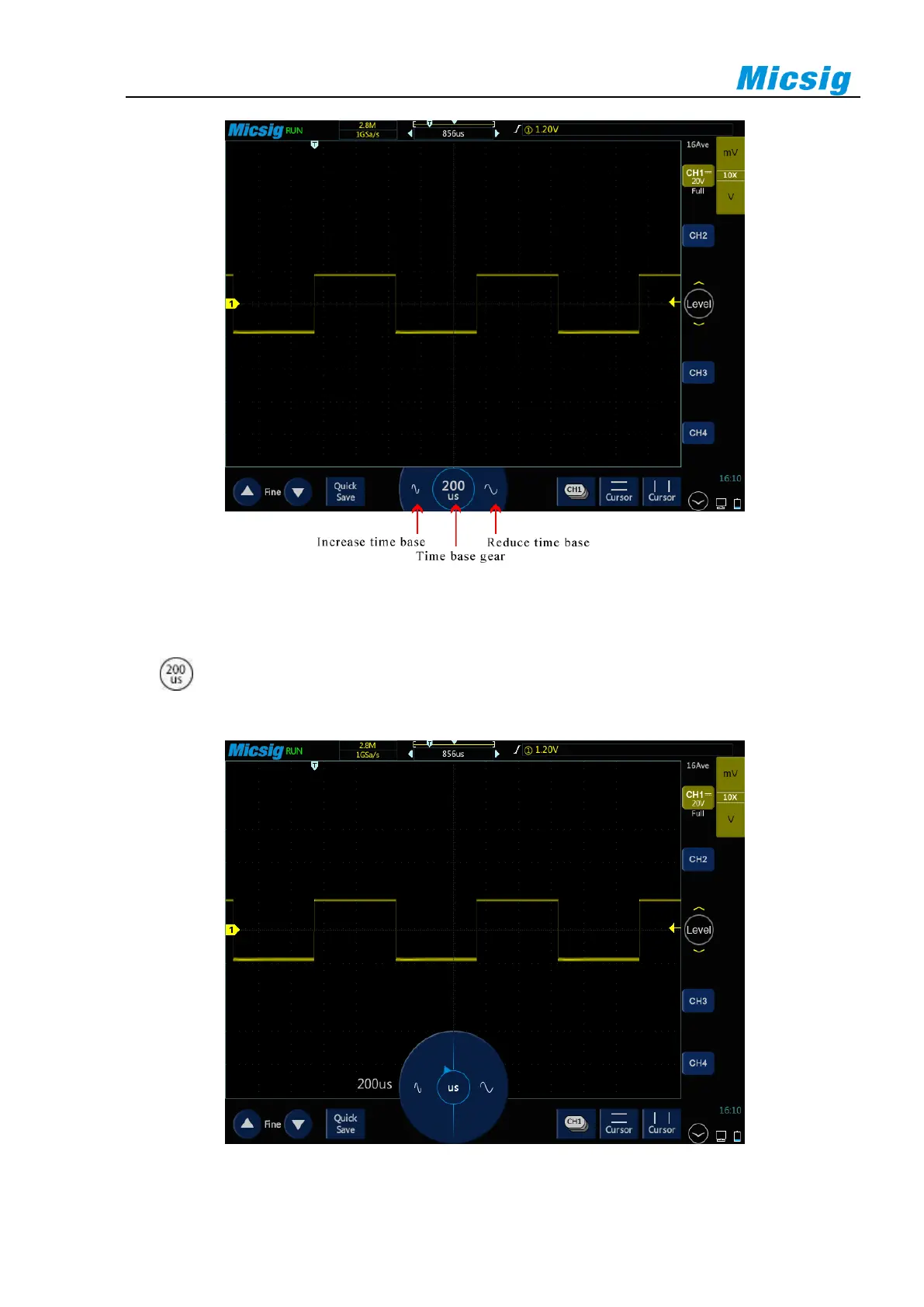

Figure 3-3 Adjust the Horizontal Time Base
Method 2: Time Base Knob
Tap to turn on the time base knob (see Figure 3-4 horizontal time base knob), and then turn the knob to
adjust the appropriate time base. The time base shown on the left is the currently selected time base.
Figure 3-4 Horizontal Time Base Knob
