Chapter 6 Analysis System
71

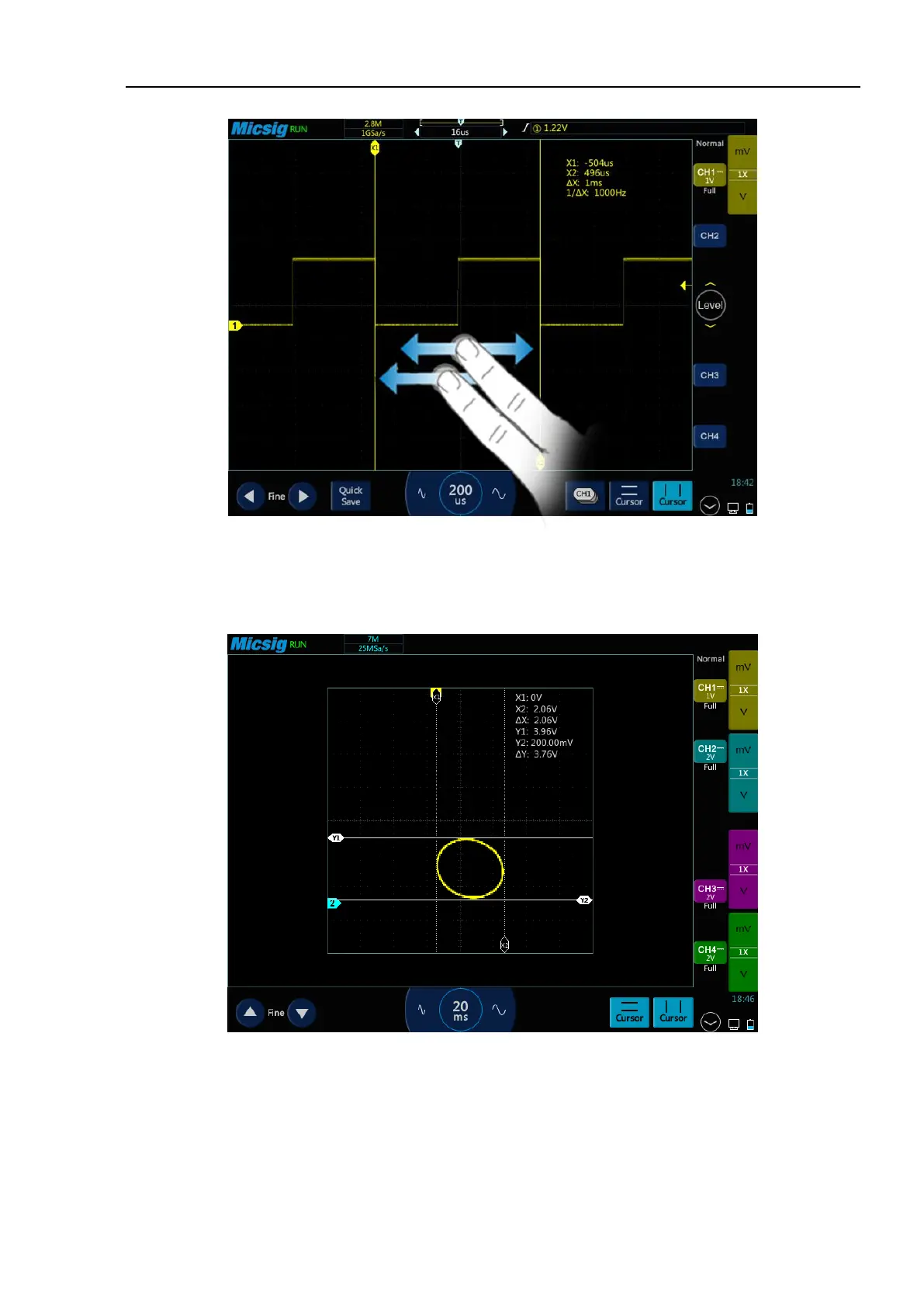

Figure 6-9 Cursor Measurement Pulse Width
In the XY horizontal mode, X cursor displays CH1 value (V or A), and Y cursor displays CH2 value (V or A).
Figure 6-10 In XY Mode, Cursor Measurement
