Technical Information
19
CVA 265x & CVA 266x

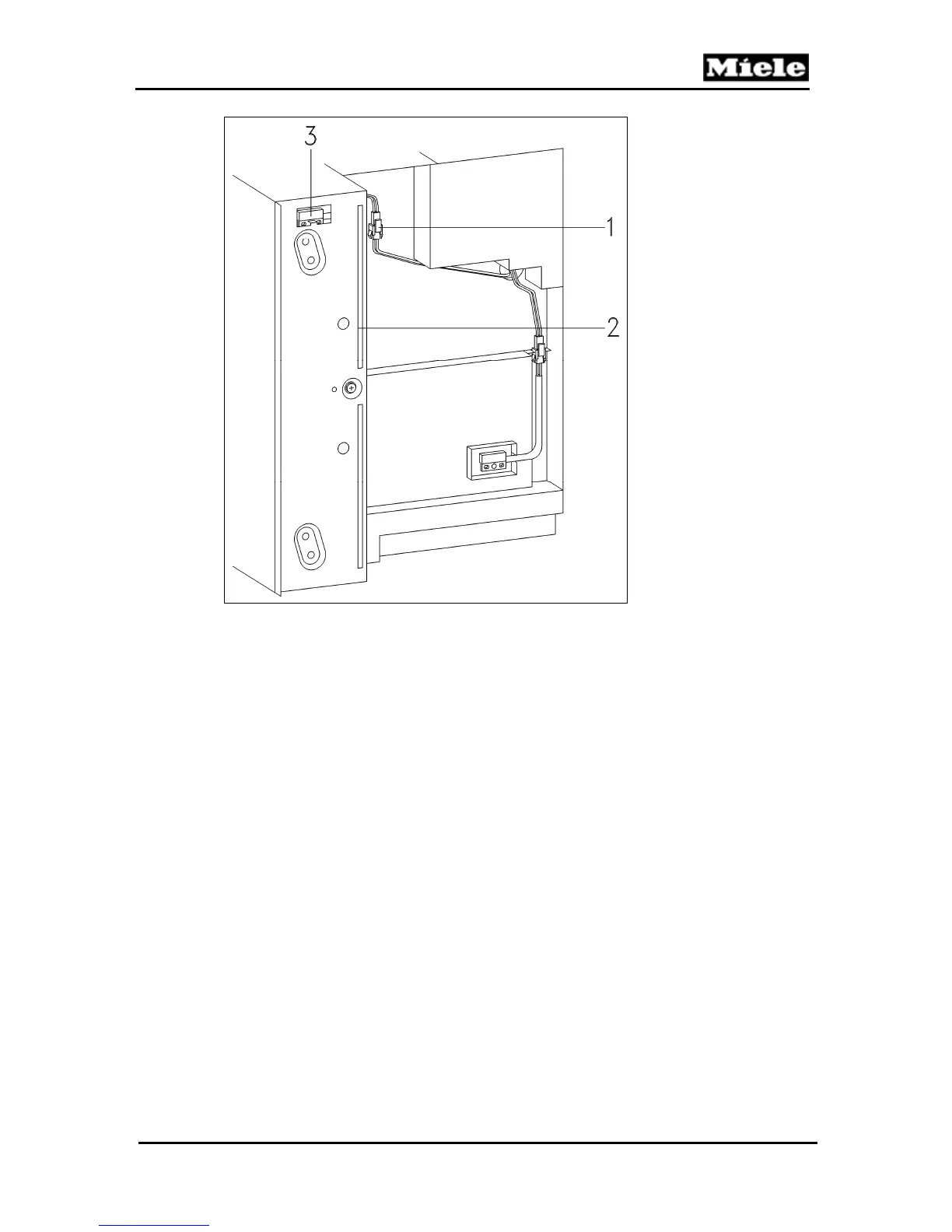

Figure 010-4: Door Switch
4.3 Water Tank Level Switch Removal
1. Remove the appliance for service; see Section 010-4.1.
2. Remove the right side panel.
3. Disconnect the connection plug (Figure 010-5, Item 1).
4. Remove the water tank level switch (Figure 010-5, Item 2).
1 Connection plug
2 Right cover
3 Door reed switch
