Technical Information
55
CVA 265x & CVA 266x
4.4 Steam Valve Removal
1. Remove the appliance for service; see Section 010-4.1.
2. Remove the left and right side panels.
3. Remove the rear panel.
4. Remove the top casing (Section 010-4.5).
5. Remove the front casing (Section 010-4.6).
6. Remove the three T10 screws securing the steam valve (Figure 050-6, Item 1).
7. Disconnect the Teflon hoses from the steam valve.
8. Disconnect the silicone hose from the steam valve.
9. Disconnect the electrical connections from the steam valve.

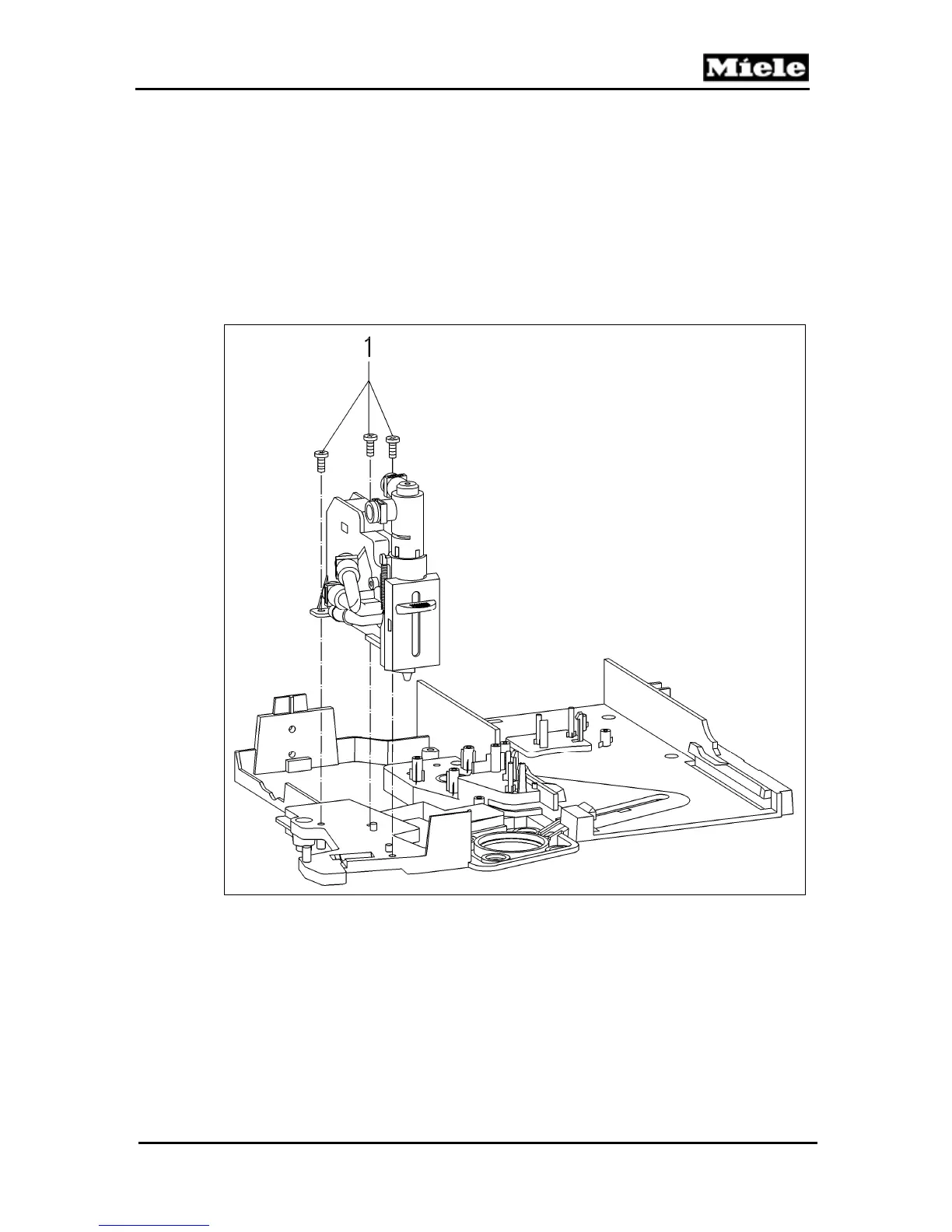

Figure 050-6: Steam Valve Assembly
