Miele CVA2650 - Figure 050-8: Capsule Transport Motor Assembly; Figure 050-9: Capsule Transport Motor Assembly Components

Technical Information
57
CVA 265x & CVA 266x

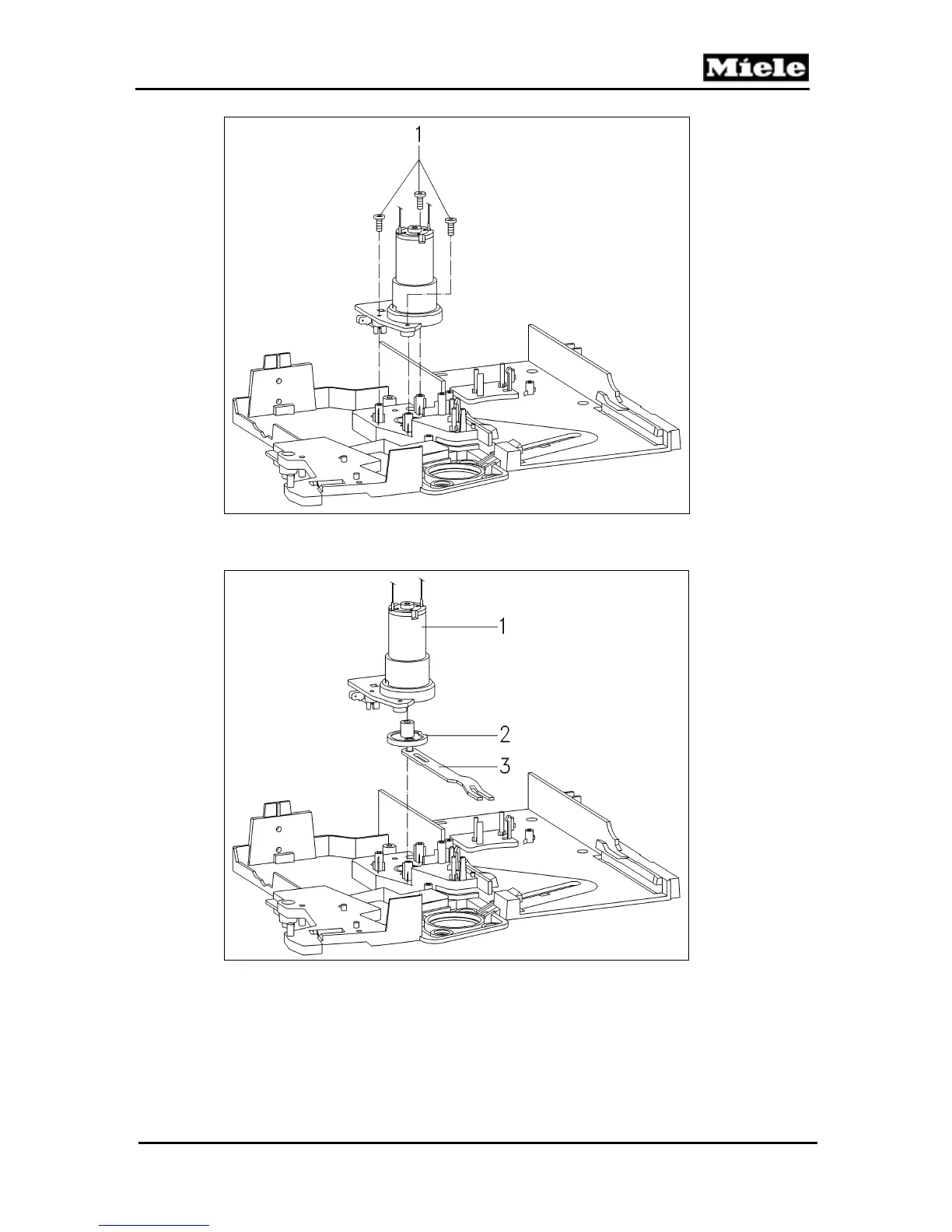

Figure 050-8: Capsule Transport Motor Assembly
9. Refer to Figure 050-9 for component locations during re-assembly.
Figure 050-9: Capsule Transport Motor Assembly Components
1 Capsule transport motor
2 Cam
3 Capsule transport lever
