Miele CVA2650 - Capsule Magazine Optical Sensor Removal; Figure 050-11: Capsule Magazine Optical Sensor

Technical Information
59
CVA 265x & CVA 266x
4.8 Capsule Magazine Optical Sensor Removal
1. Remove the appliance for service; see Section 010-4.1.
2. Remove the intermediate plate assembly; see Section 050-4.7.
3. Carefully lever up the glass cover (Figure 050-11, Item 1).
4. Remove the capsule magazine optical sensor; see Figure 050-11, Item 2.

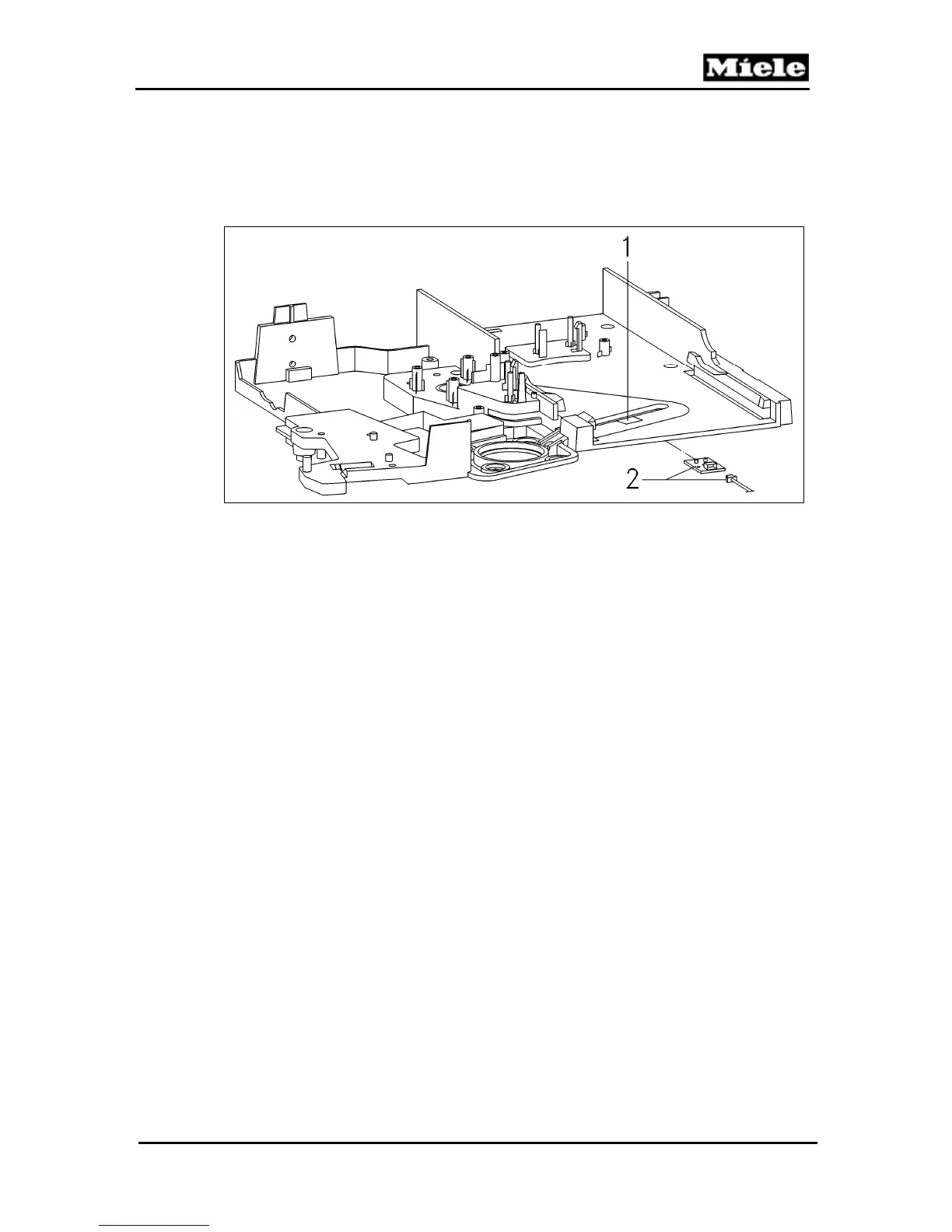

Figure 050-11: Capsule Magazine Optical Sensor
