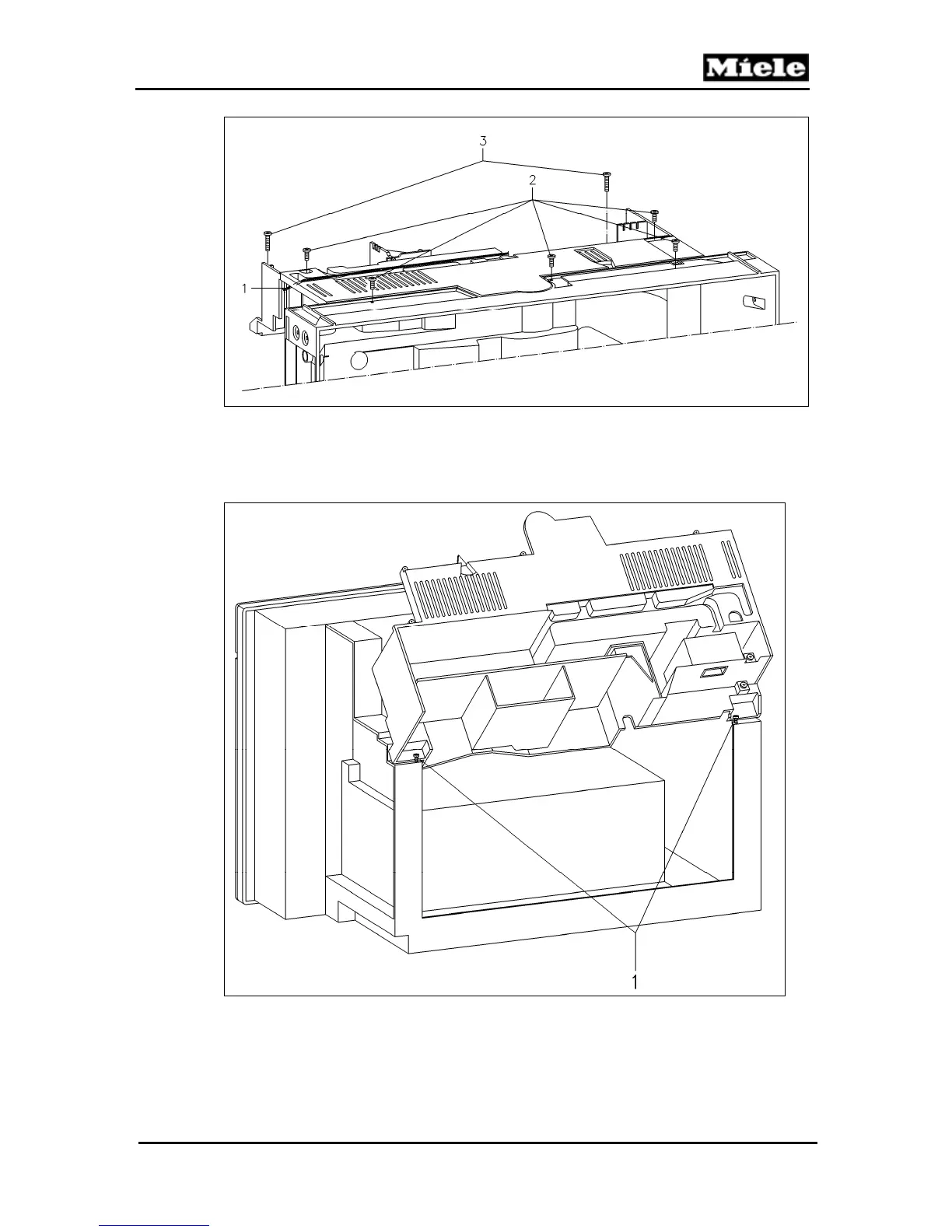

Miele CVA2650 - Figure 010-6: Top Casing Retaining Screws; Figure 010-7: Top Casing in the Service Position

Technical Information
21
CVA 265x & CVA 266x
Figure 010-6: Top Casing Retaining Screws
8. Re -install two of the screws in the holes in the bottom casing (Figure
010-7, Item 1). Tilt the top casing and position it against the retaining
screws.
Figure 010-7: Top Casing in the Service Position
