Technical Information
41
CVA 265x & CVA 266x

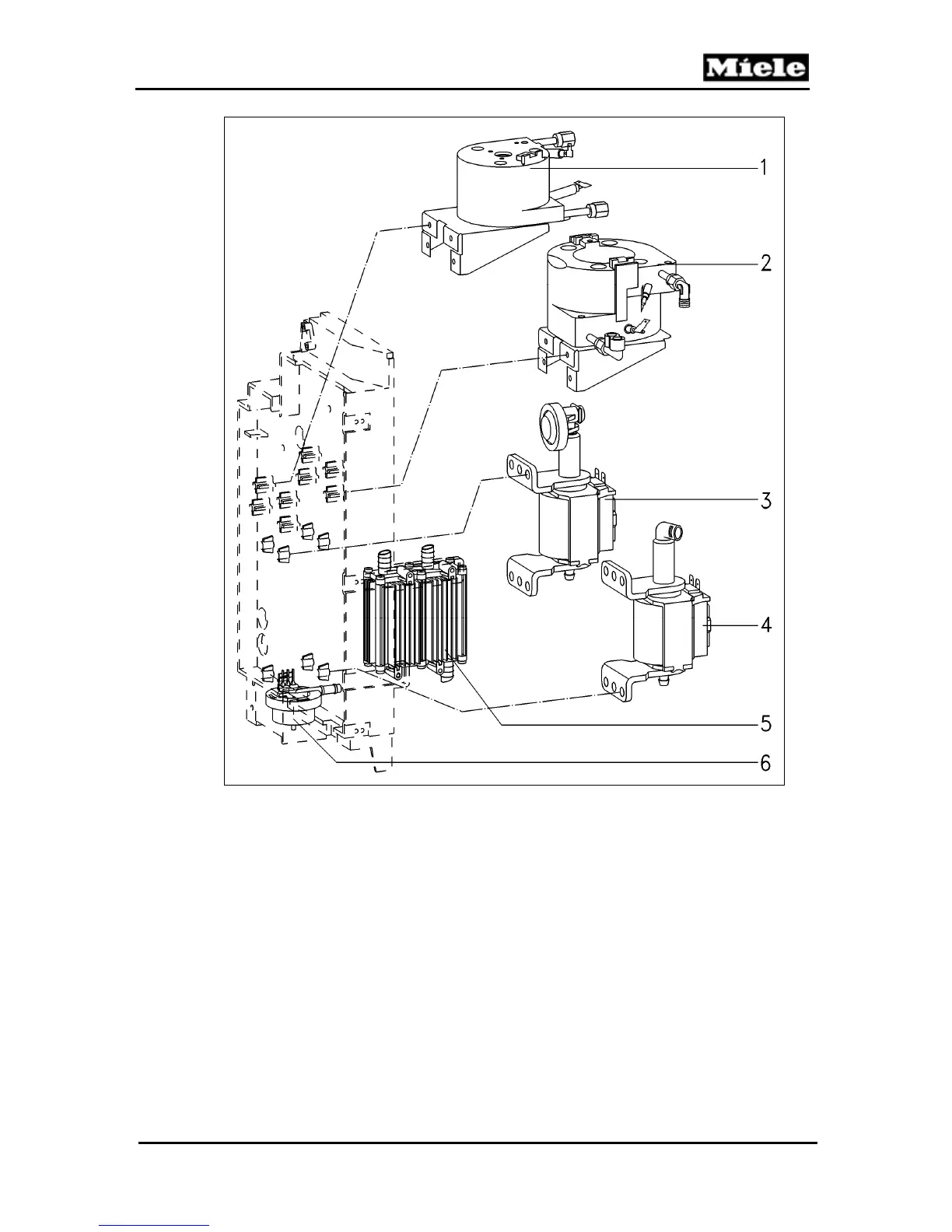

Figure 030-4: Component Locations on Carrier Panel
1
Steam heater
2
Coffee/hot-water heater
3
Steam pump
4
Coffee/hot-water pump
5
Decompression vessel
6
Flow meter
