Cause:
The groove in which the slide moves (Figure 060-3, Item 3) is soiled with coffee
residue (e.g., after a capsule has exploded) and the slide (Figure 060-3, Item 2)
is stuck. The capsule transport arm (Figure 060-3, Item 1) can also get stuck.
Series modification (CVA 2650/2660 only):
Since machine no. 16/65408179, a different power electronic with modified
rinse method has been used.
Since machine no. 60/65417375, the capsule transport arm has been
shortened by 0.07 inches (1.7 millimeters) and fitted with a 55° bezel (see
Figure 060-4).
The capsule plate and capsule magazine slide have been improved.

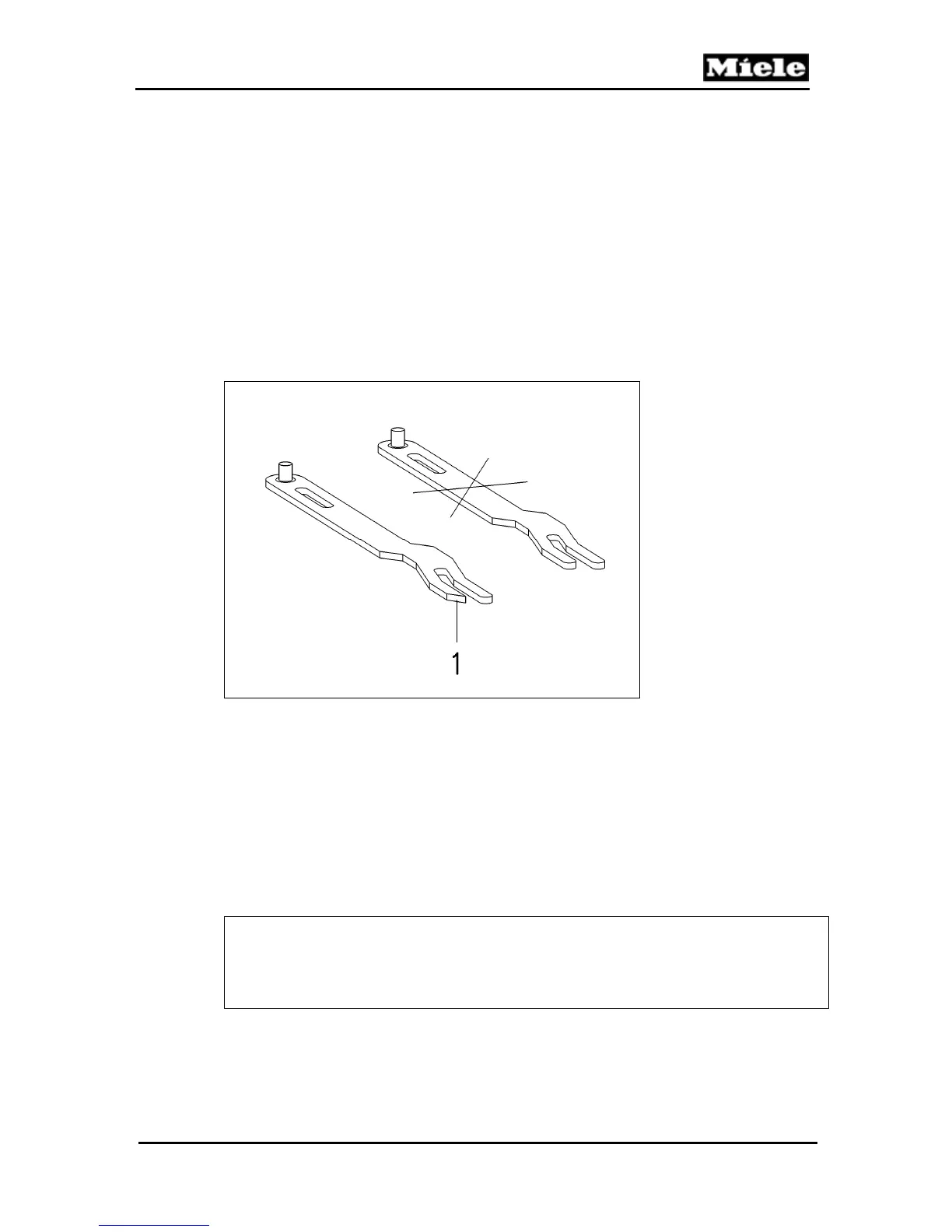

Figure 060-4: Modified Capsule Transport Arm with 55° Bezel (2650/2660)
Quantity Mat. No. Description
1 06216475 Power electronic with modified rinse method
1 06059013
Capsule transport arm (includes installation
instructions, mat. no. 06959000)
1 06109450 HTS 600 grease
1 07198560 Capsule plate (receptacle)
1 06264371 Capsule magazine slide
Remedy:
1. Thoroughly clean the groove (Figure 060-3, Item 3) and the slide (Figure
060-3, Item 2).
Warning!
Do not apply grease to the groove or the slide!
Using grease will eventually create a large buildup of oil and dirt which will
cause the transport mechanism to jam.
2. Lubricate the capsule transport arm with HTS 600 grease, as shown in
Figure 060-5, Item 1.
