CVA 265x & CVA 266x

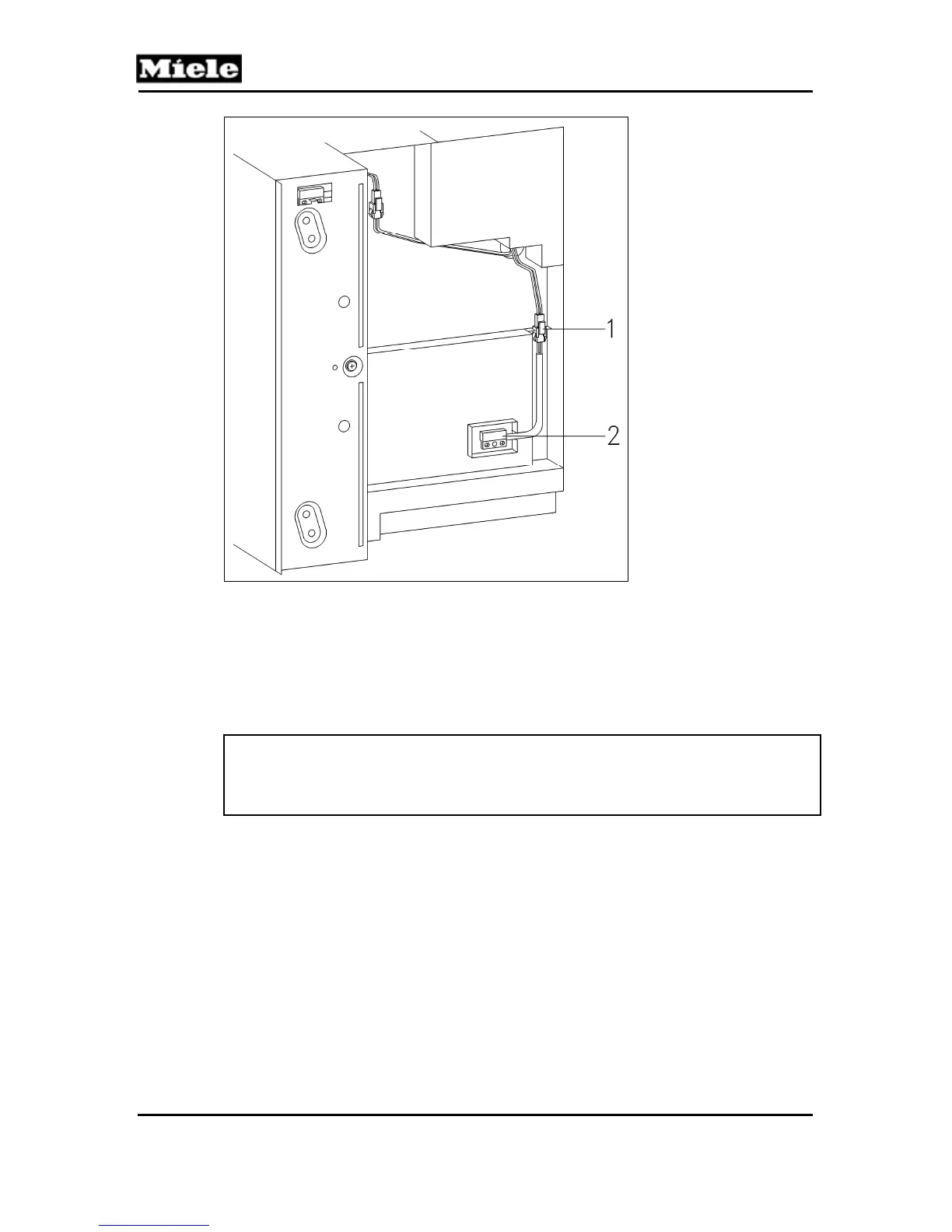

Figure 010-5: Water Tank Level Switch Removal
4.4 Placing Appliance in Service Setting
1. Remove the appliance for service; see Section 010-4.1.
2. Remove the left and right side panels.
3. Remove the rear panel.
4. Remove the top casing retaining screws (Figure 010-6, Items 2 and 3).
Note:
The screws have different lengths. Take care to note where the longer
screws (Figure 010-6, Item 3) are located to avoid damage to the casing
during reassembly.
5. Remove the connection cable (Figure 010-6, Item 1) from its groove.
6. Slide the transformer up from its support (if applicable).
7. Pull the top casing back.
