Technical Information
40
CVA 265x & CVA 266x
12. Disconnect the hoses from the decompression vessel (Figure 030-3,
Items 4, 5 and 6).
13. Disconnect the hose from the steam pump connection (Figure 030-3, Item 8).
14. Disconnect the hose from the flow meter (Figure 030-3, Item 7).
15. Pull off or unscrew the ground connection on the casing as appropriate.
16. Remove the carrier panel to access the pumps, heaters, decompression
vessel and flow meter.

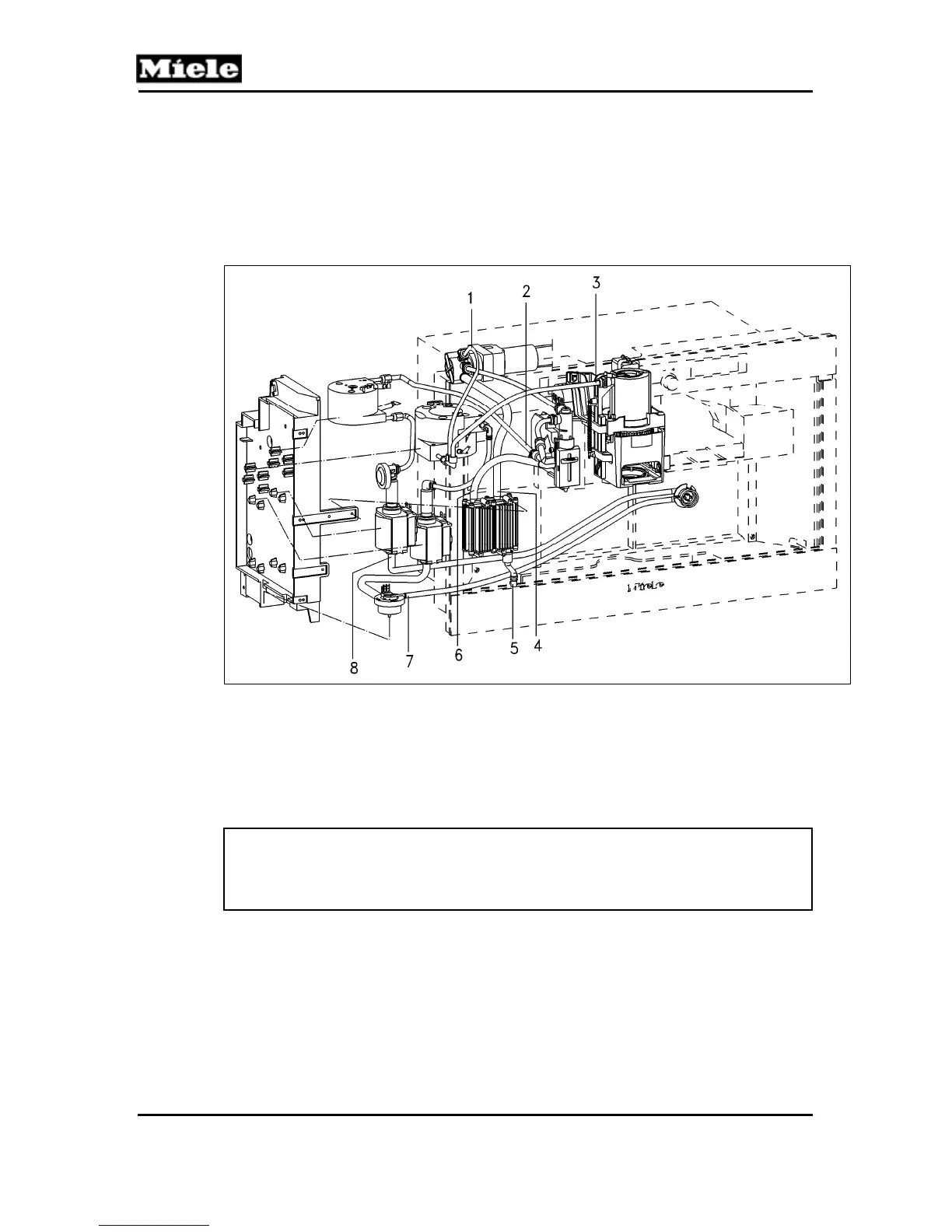

Figure 030-3: Hose Connections
1
Ceramic valve connection
2
Steam valve connection
3
Brew unit connection
4, 5, 6
Decompression vessel connections
7
Flow meter connection
8
Steam pump connection
Note:
To avoid disconnecting additional wiring, the carrier panel can be removed
with the transformer connected (if installed). Use caution so as not to
stretch or damage the transformer wiring.
