Technical Information
51
CVA 265x & CVA 266x
then passes through the tiny holes in the pyramid piercers and flows via the
spout into the cup. After the brewing cycle, the capsule cage is raised and the
capsule plate tips to eject the used capsule, which then falls into the waste
container.
The brew unit positions are registered by the electronic and can be checked
in service mode; see Section 060-4.5.

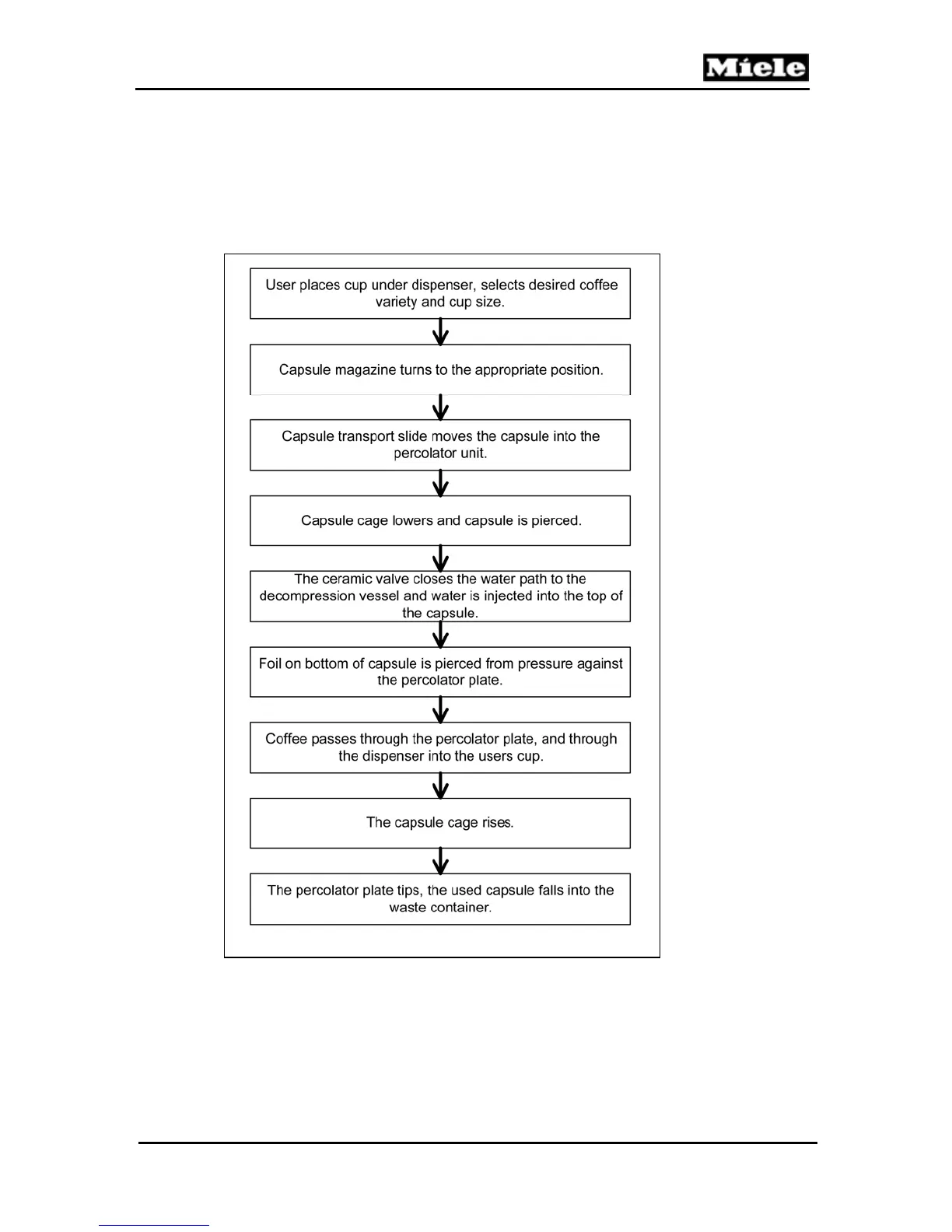

Figure 050-1: Brewing Procedure
