CVA 265x & CVA 266x
3 Fault Repair
3.1 Capsule Magazine Drawer Can’t Be Removed from Appliance
Cause:
The capsule transport slide has jammed.
Remedy:
1. Slightly lift the capsule magazine drawer.
2. Using a small flathead screwdriver, lift the capsule transport lever (Figure
050-2, Item 1). This action lifts the capsule transport slide (Figure 050-2,
Item 2) out of the groove (Figure 050-2, Item 3), allowing the capsule
magazine drawer to be pulled out.
3. Remove the capsule magazine drawer from the appliance.
4. Remove cause of the obstruction (e.g., deformed capsule).
5. Ensure that all parts and the groove are clean before re-assembly.

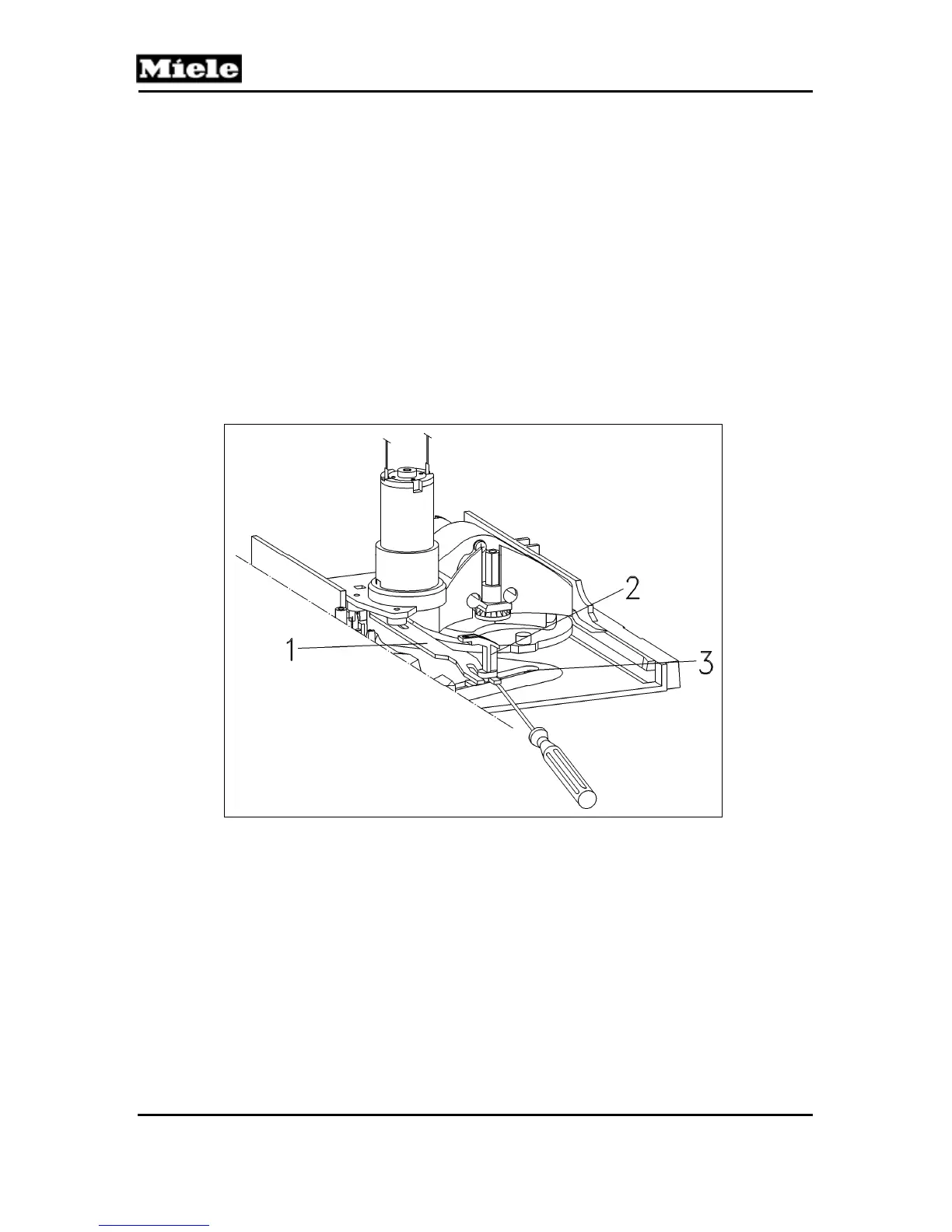

Figure 050-2: Releasing the Capsule Magazine Drawer
4 Service
4.1 Brew Unit Removal
1. Remove the appliance for service; see Section 010-4.1.
2. Remove the left and right side panels.
3. Remove the rear panel.
4. Remove the top casing (Section 010-4.5).
5. Remove the front casing (Section 010-4.6).
6. Remove the retaining screws (Figure 050-3, Item 1).
7. Disconnect the Teflon hose connection.
