Miele CVA2650 - Service; Pressure Test; Carrier Panel Removal; Figure 030-2: Carrier Panel Retaining Screws

Technical Information
39
CVA 265x & CVA 266x
4 Service
4.1 Pressure Test
See Section 060-4.6.
4.2 Carrier Panel Removal
1. Remove the appliance for service; see Section 010-4.1.
2. Remove the left and right side panels.
3. Remove the rear panel.
4. Remove the top casing (Section 010-4.5).
5. Open the door.
6. Remove the panel retaining screws (Figure 030-2, Item 1).

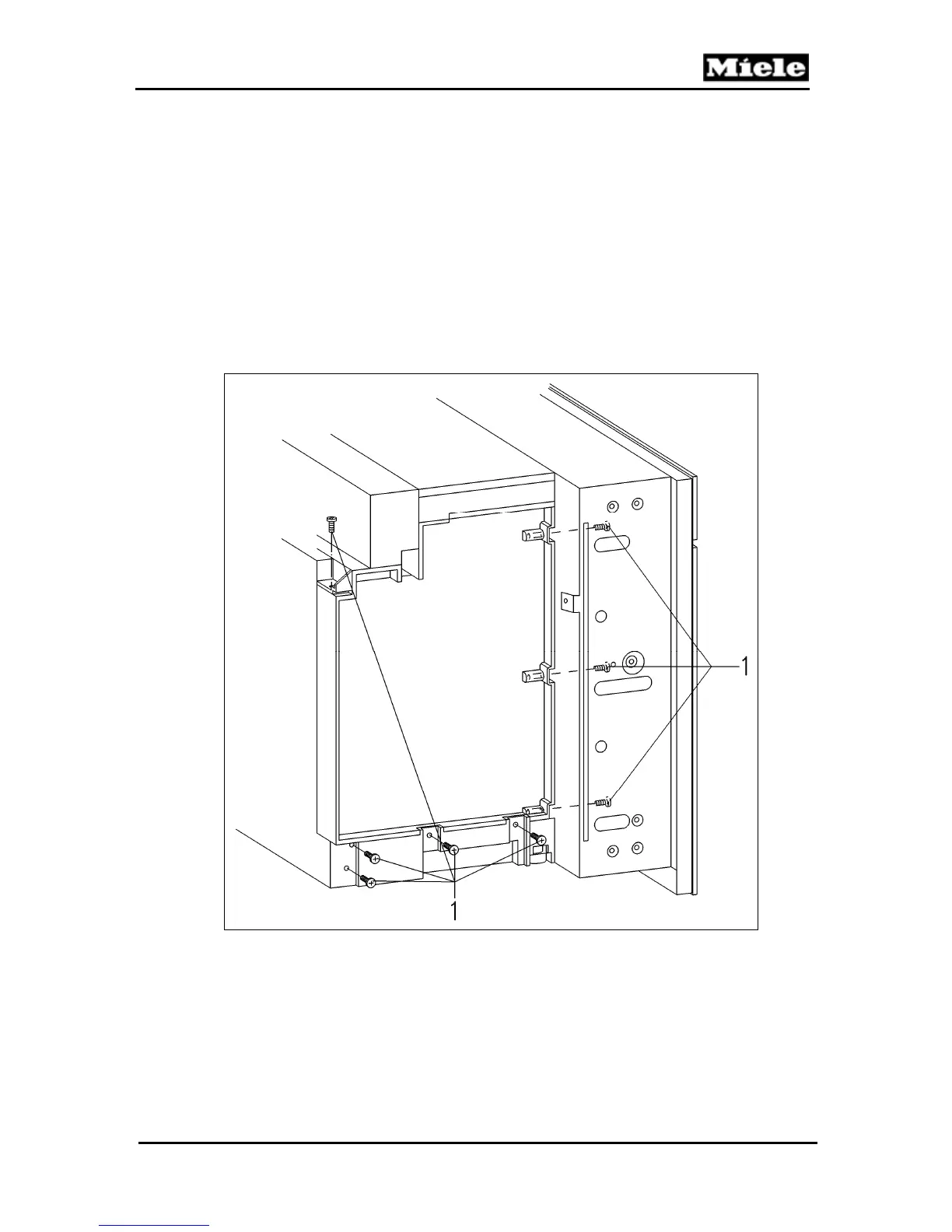

Figure 030-2: Carrier Panel Retaining Screws
7. Note the wiring positions and disconnect from the master on/off switch.
8. Remove the two T10 screws securing the door wiring harness retainer.
9. Disconnect the Teflon hose at the brew unit connection (Figure 030-3, Item 3)
and pull the hose free.
10. Disconnect the Teflon hose at the ceramic valve connection (Figure 030-3,
Item 1) and pull the hose free.
11. Disconnect the Teflon hose at the steam valve connection (Figure 030-3,
Item 2) and pull the hose free.
