Technical Information
54
CVA 265x & CVA 266x

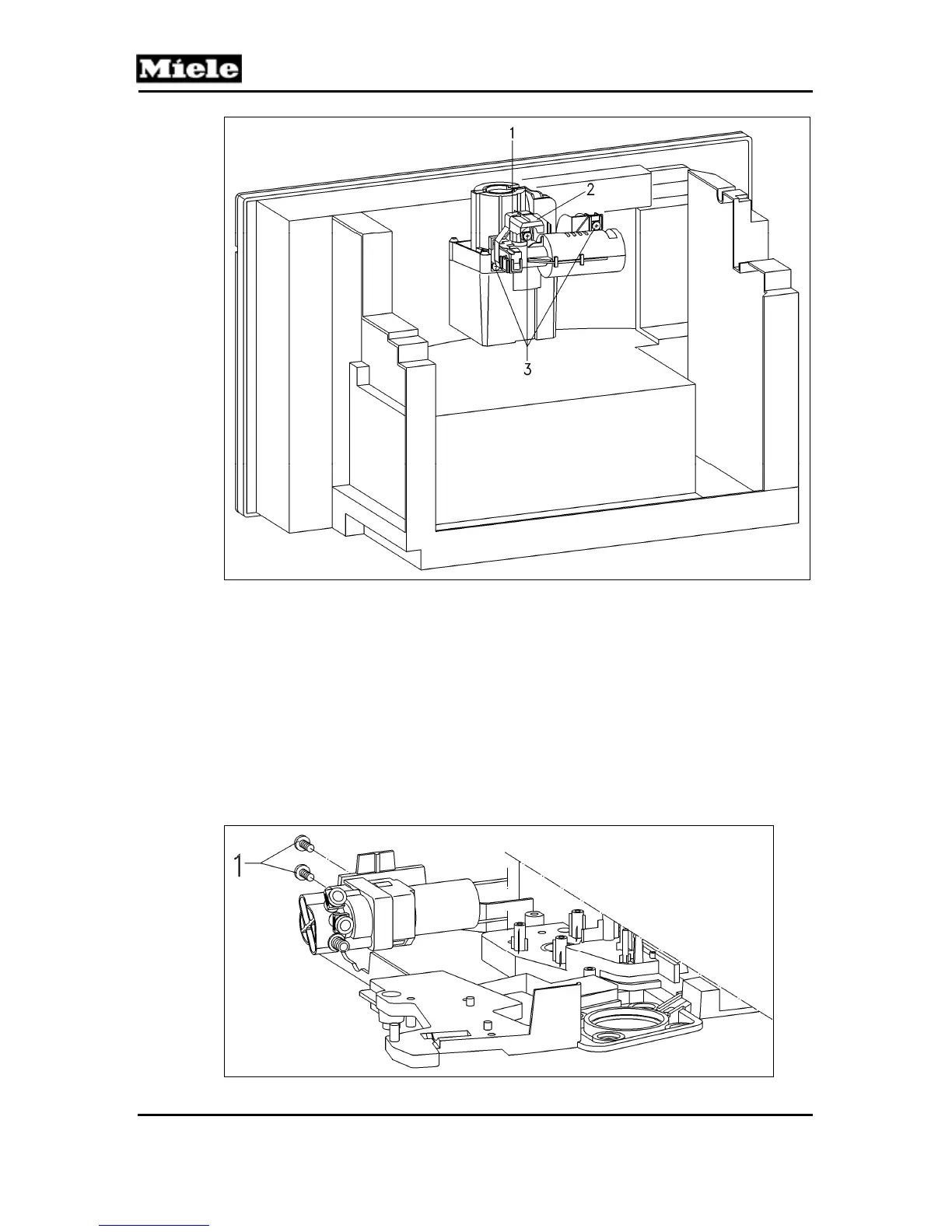

Figure 050-4: Brew Unit Motor Assembly
4.3 Ceramic Valve Removal
1. Remove the appliance for service; see Section 010-4.1.
2. Remove the left and right side panels.
3. Remove the rear panel.
4. Remove the top casing (Section 010-4.5).
5. Remove the two T10 screws securing the ceramic valve to the rear
casing (Figure 050-5, Item 1).
6. Remove the ceramic valve.
7. Note the hose positions, and then disconnect the hoses.
8. Disconnect the electrical connections from the ceramic valve.
Figure 050-5: Ceramic Valve
