Miele PFD 402 - Guide to the Appliance; Machine Overview

Guide to the appliance
9

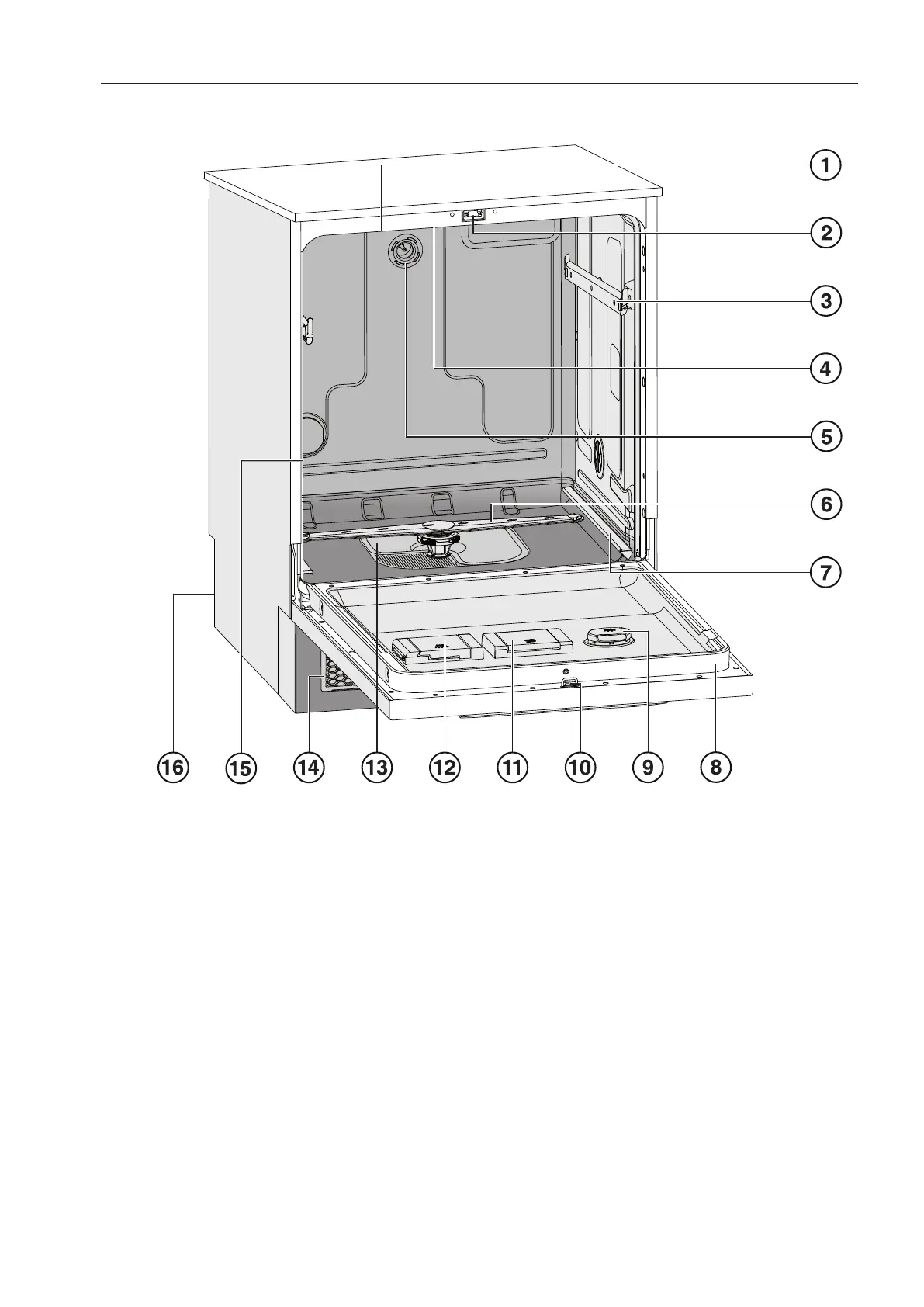

Machine overview
a
Air inlet for fresh air (depending on the
model)
b
Door lock
c
Upper basket runners
d
Top machine spray arm
e
Upper basket water connection
f
Lower machine spray arm
g
Lower basket runners
h
Data plate
i
Rinsing agent container
j
Door lock latch
k
Salt container
l
Container for powder cleaning agents
m
Filter combination
n
Air outlet and inlet grille with filter for fresh
air (depending on the model)
o
Outlet for wash cabinet air (depending on
the model)
p
Rear:
– Electrical and water connections
– Suction lance(s) for external containers
(depending on the model)
– Connections for external dispensing
modules (DOS modules)
