15 Installing the machine
The installation site must be frost-resistant to prevent the water supply systems from freezing.
 Install the machine horizontally using a spirit level.
 Adjust the base unevenness using the height-adjustable machine feet.
16 Connecting the machine
Warning
The machine and any other relevant additional devices must be connected in adherence to
local standards and regulations by an electrical company authorised by the relevant electricity
supplier.

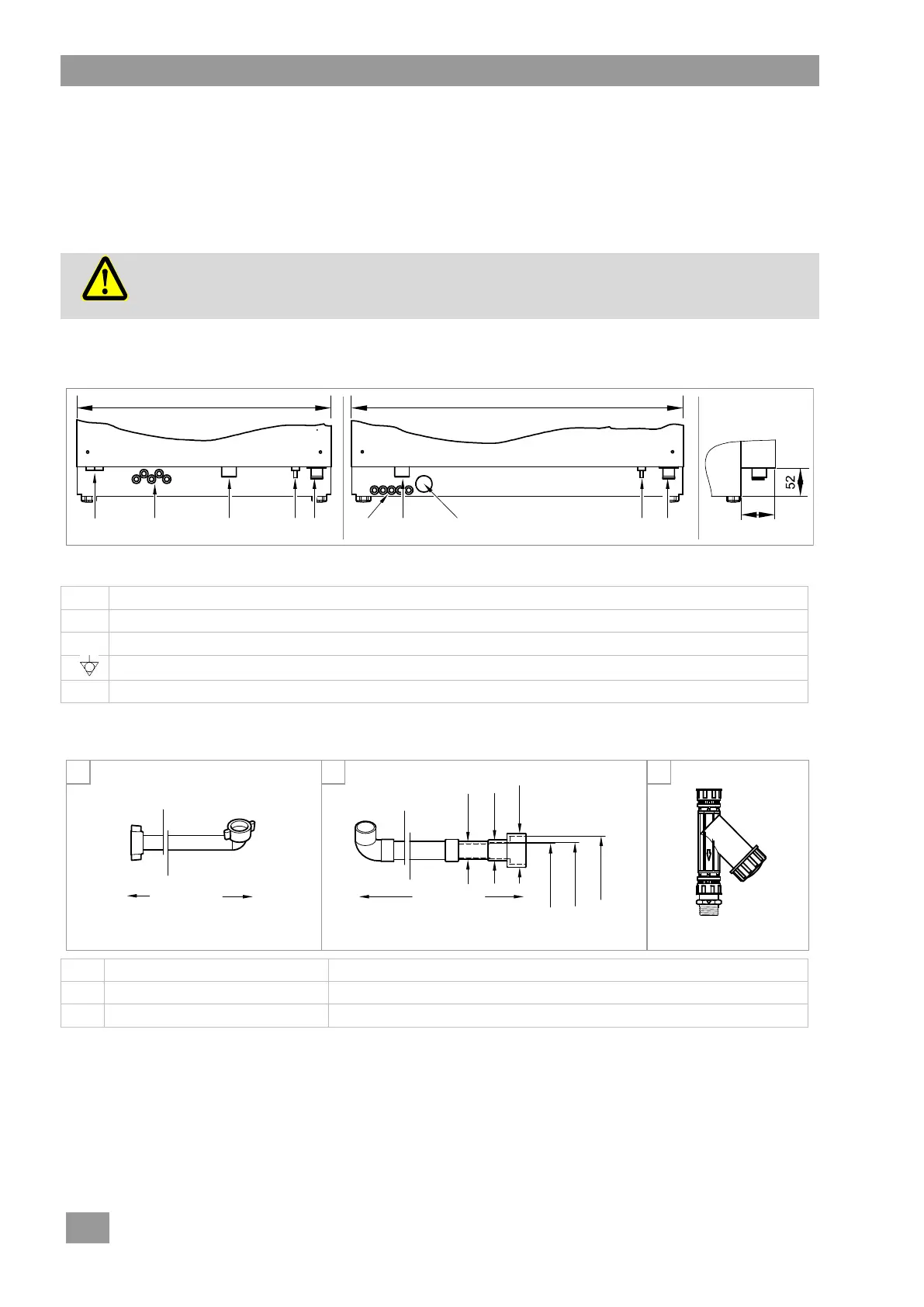

16.1 Location of connections on the machine
PTD 701
PTD 702, PTD 703, PTD 704
Rear view
Right view
EZ
Entry for mains cable
DOS
Port for hoses (detergent / rinse aid) and cables
TWw
Inlet water connection (G ¾“, external thread)
P
Connection for on-site equipotential bonding system
A
Waste water connection; drain pump installed
16.2 Accessories
1
Flexible inlet hose
connect to point TWw
2
Flexible drain hose
connect to point A
3
Water inlet filter
install in accordance with chapter 16.5
62
PTWwEZ DOS A
460
TWwDOS EZ P A
600
G 3/4" G 3/4"
G 3/4"
1500 mm 1500 mm
Ø 24 Ø 28
Ø 46
Ø 18,5 Ø 22,2
Ø 39,7
G 3/4"
1 2 3
