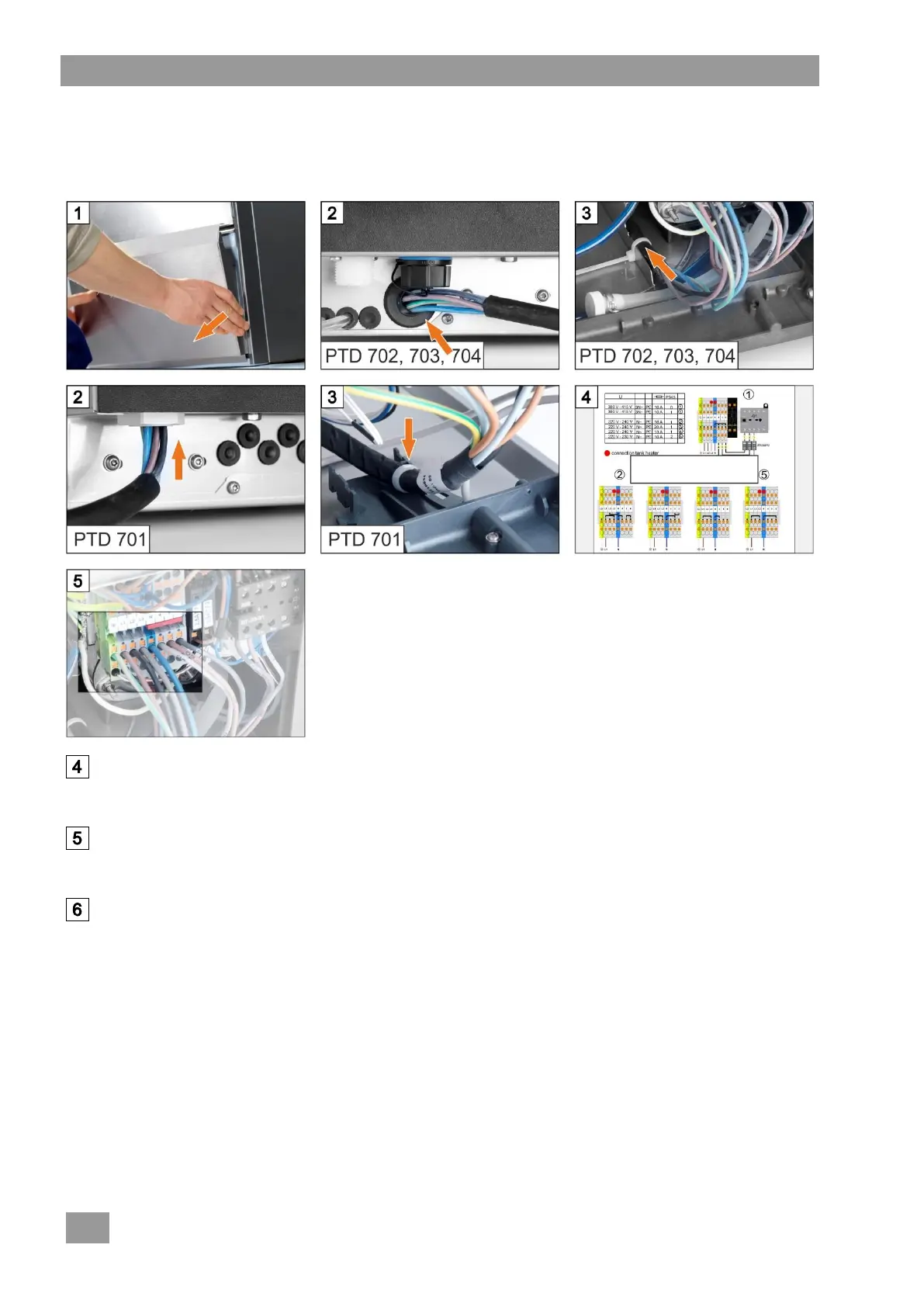

Connecting the mains cable
Requirements for the mains cable:
Cable of type H07 RN-F or equivalent
Cross-section and number of wires appropriate for voltage, fusing and total connected load
Follow the connection diagram.
The connection diagram is attached to the rear of the partition wall for the electrical installation
compartment.
Connect the wires of the mains cable according to the connection diagram.
Place new bridges in accordance with the connection diagram. Firmly press the bridges with a
screwdriver.
Set the interlock (P545) as part of menu-guided commissioning.
