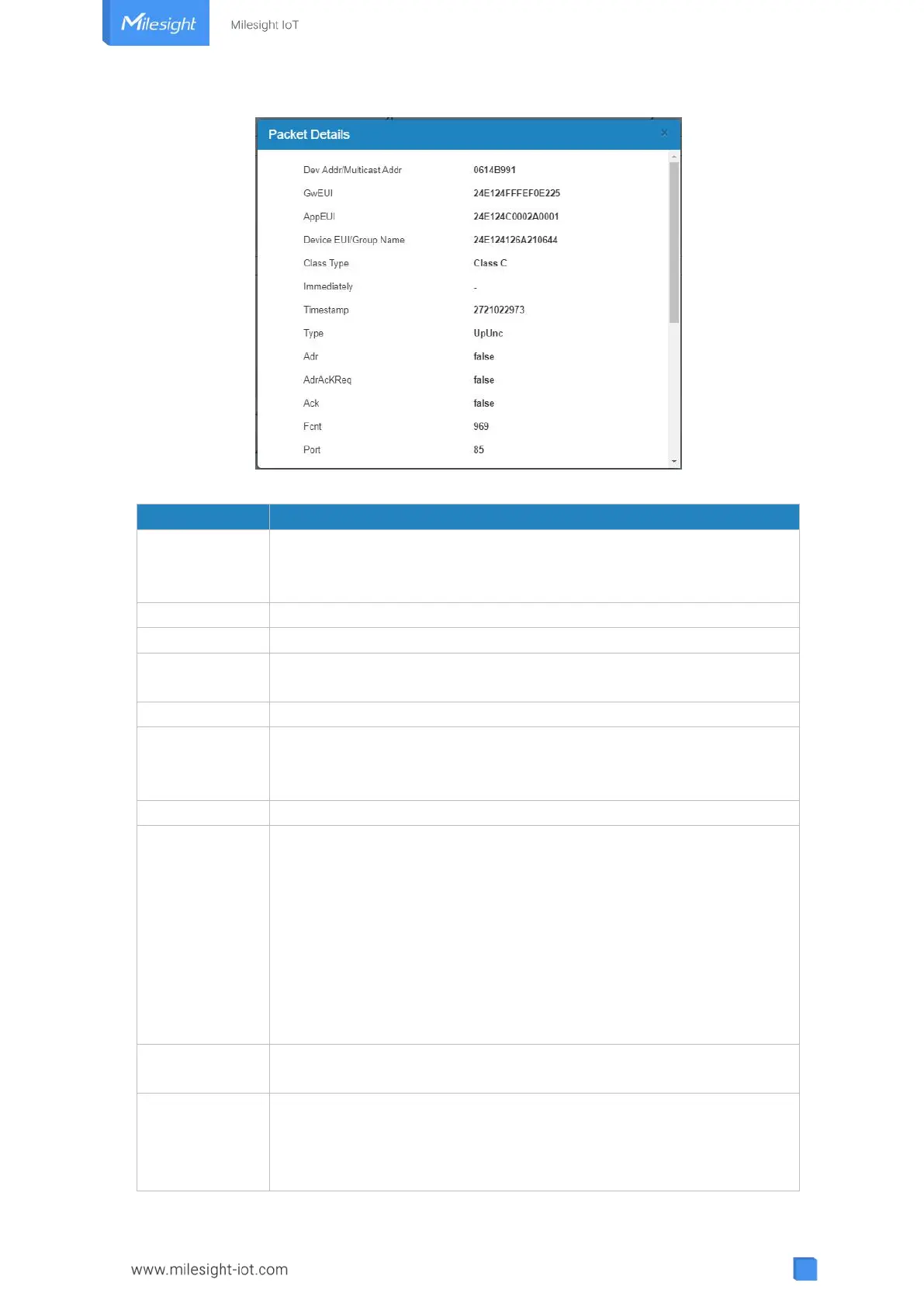

Figure 3-2-2-15
Show the address of the device/multicast group.
Show the EUI of the gateway.
Show the EUI of the application.
Show the EUI of the device/multicast group name.
Show the class type of the device or multicast group.
True: Device may transmit an explicit (possibly empty)
acknowledgement data message immediately after the reception of a
data message requiring a confirmation.
Show the timestamp of this packet.
Show the type of the packet:
JnAcc - Join Accept Packet
JnReq - Join Request Packet
UpUnc - Uplink Unconfirmed Packet
UpCnf - Uplink Confirmed Packet - ACK response from network
requested
DnUnc - Downlink Unconfirmed Packet
DnCnf - Downlink Confirmed Packet- ACK response from end-device
requested
True: The end-node has enabled ADR.
False: The end-node has not enabled ADR.
In order to validate that the network is receiving the uplink messages,
nodes periodically transmit ADRACKReq message. This is 1 bit long.
True: Network should respond in ADR_ACK_DELAY time to confirm that
it is receiving the uplink messages.
