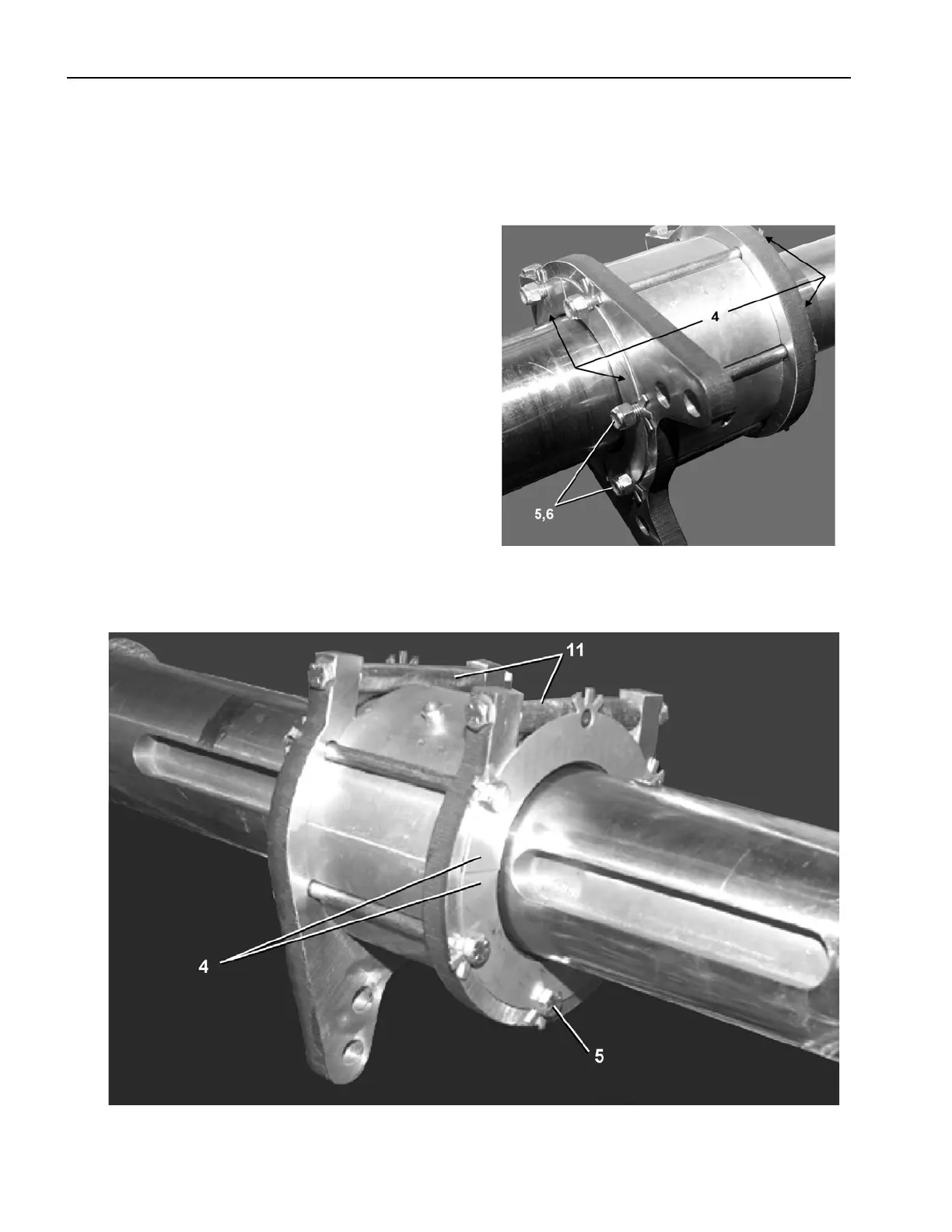

7. Install the seal retainers (Item 4) so they overlap
the seams. Ensure the six bolts (Items 5 & 6) are
loose.
8. Refer to the illustration below. Tighten the spacers (Item 11) until they no longer rotate. Con-
stantly check assembly rotation around the shaft. Use only hand wrenches.
Assembly Procedure
5 Sheets
6044SR2, 72044SR2/SR3
Drive Assemblies
