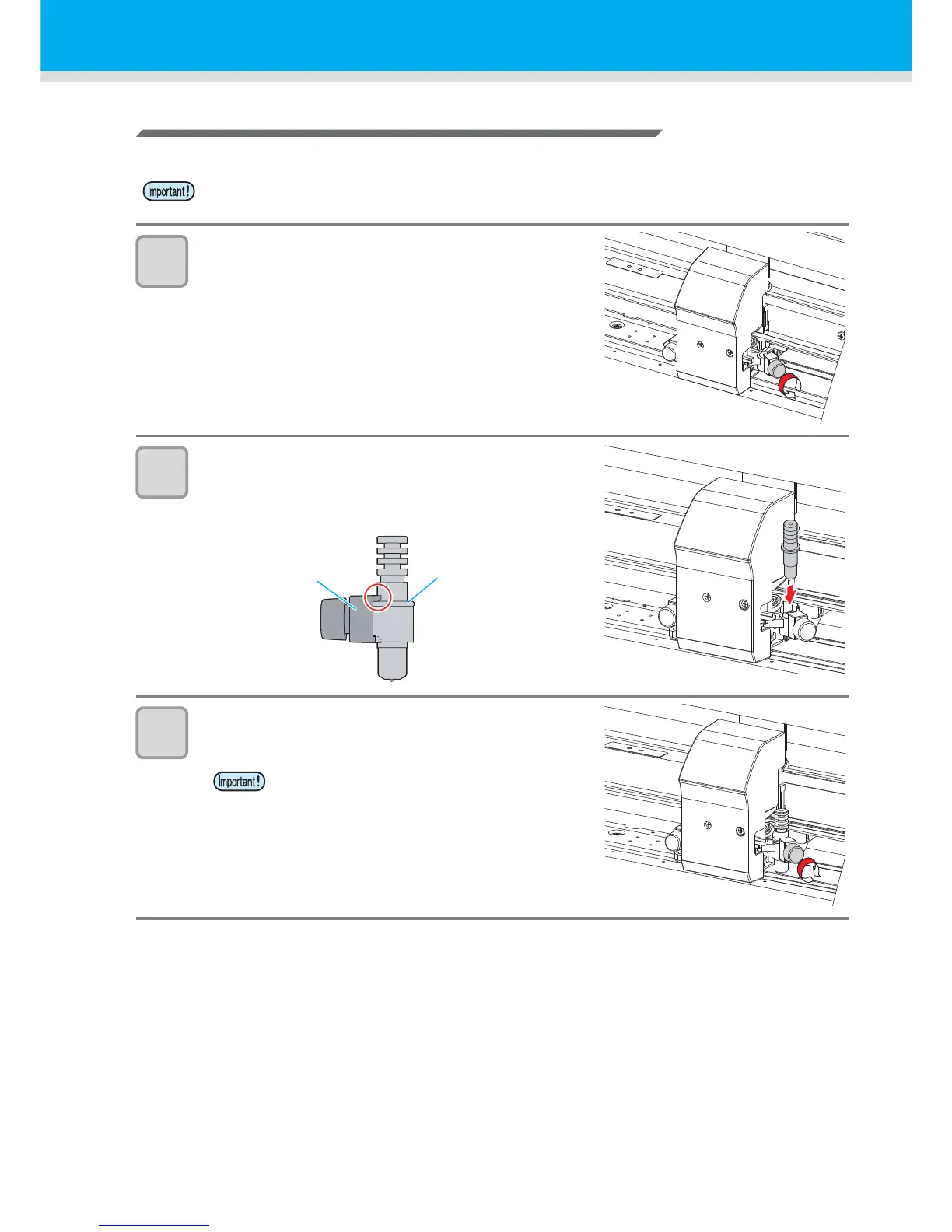

How to install the cutter holder
Attach the cutter holder on the tool holder of the carriage.
1
Rotate the knob to loosen the holder presser.
• Rotate the knob counterclockwise to loosen the holder presser.
2
Insert the cutter holder into the tool holder.
• Push the brim of the cutter holder against the tool holder.
• Press the brim of the cutter holder with the l holder presser.
3
Fix the cutter holder.
• Turn the knob of the tool holder clockwise, and surely fix it.
• Install the cutter holder to the tool holder of the carriage.Be sure to insert the cutter holder all the way
in the tool holder.
• Fix the cutter holder firmly. If not, accurate and
high-quality cutting (plotting) will not be
achieved.
