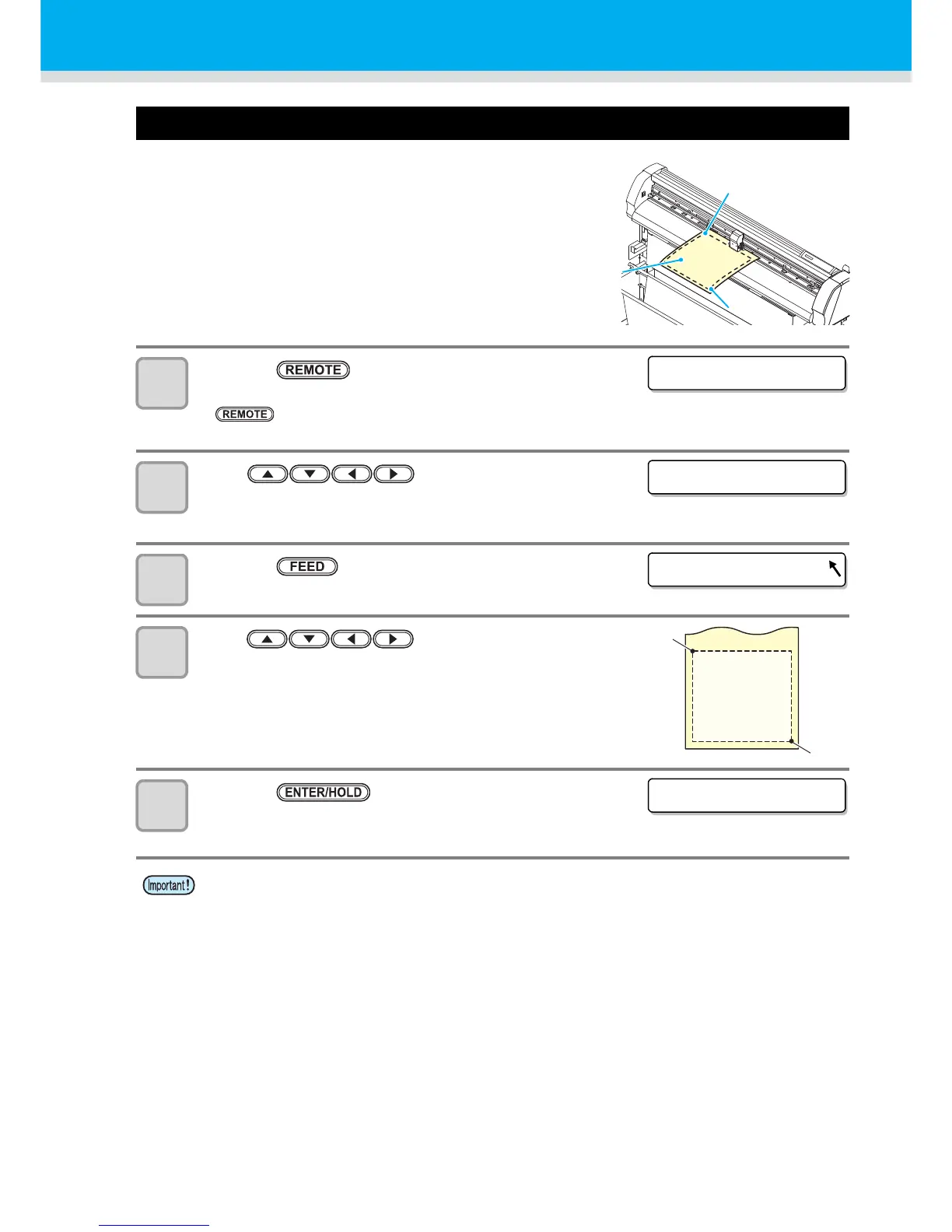

Setting cut area
The cut area can be set within the area from the origin to the Point
UL (Upper Left), any point set on the diagonal. Here, set the Point
UL position.
When you perform sheet detection again, cut area is cleared.
1
Press the key to select LOCAL mode.
• Check that cutting (plotting) does not start even if you press the
key and the device enters into the remote mode in
advance.
2
Press to enter into the jog
mode.
• When you press any jog key, the device enters into the jog mode.
3
Press the key.
4
Press to set the Point UL (Upper
Left).
• By setting the Point UL (Upper Left) on the diagonal from the
origin, the cut are is set.
5
Press the key to determine the Point UL.
• After the set value is displayed for a while, the device returns to
the local mode.
• Set the Point UL in the plus direction from the origin.
• Set the origin in the cut area. If you set it outside the cut area, an operation error occurs.
