A7™ Service Manual 046-006272-00 2 - 11
Installation Guide Assembly

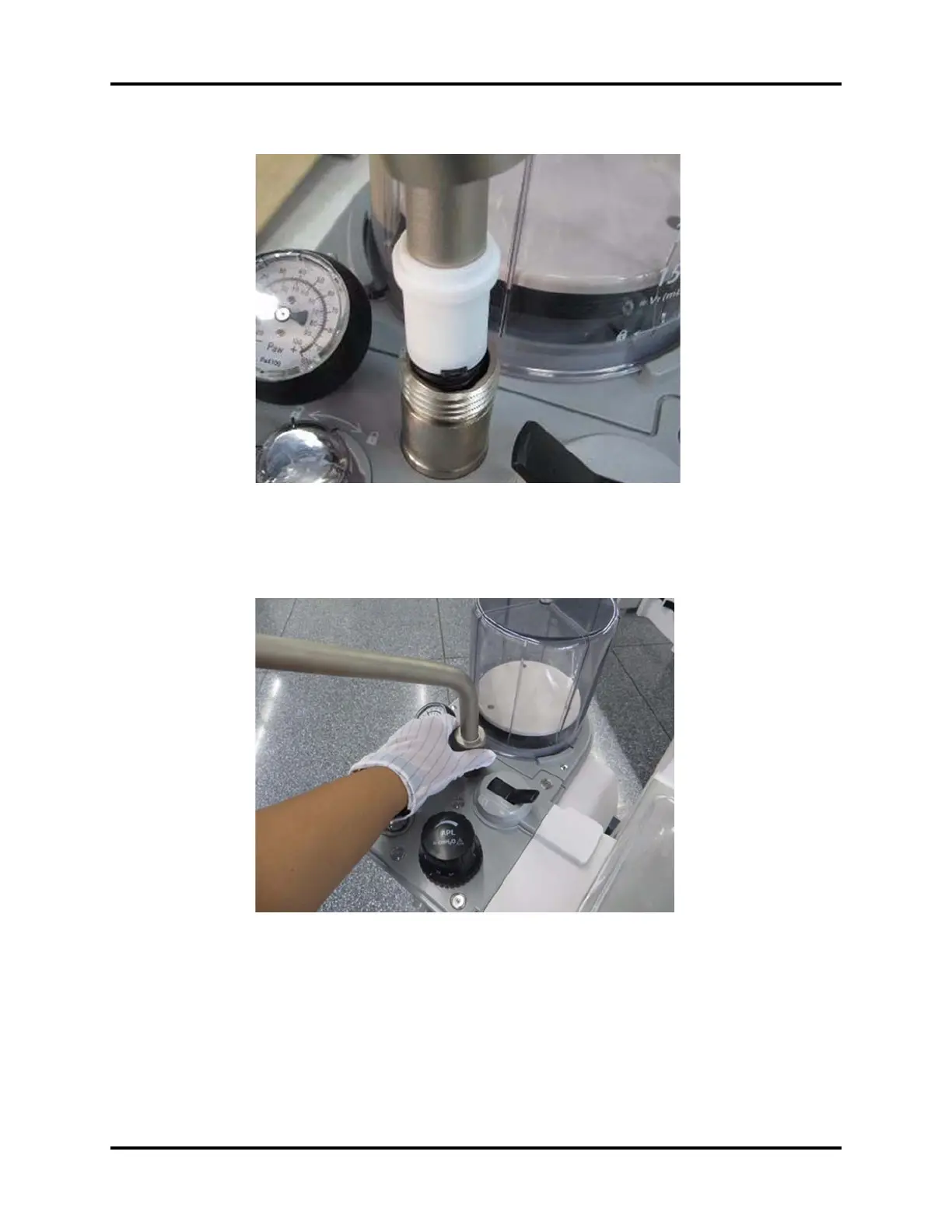

FIGURE 2-17
21. Then, push the Bag Arm Assembly into the Breathing System and tighten the knurled collar as
shown below. Install the Paw gauge and the water trap on the breathing system.
FIGURE 2-18
22. Open the middle and bottom drawers and carefully remove the Removable Absorber Assembly,
Waste Gas Scavenger Hose and the Waste Gas Scavenger Assembly.
