Assembly Installation Guide
2 - 10 046-006272-00 A7â„¢ Service Manual
FIGURE 2-15

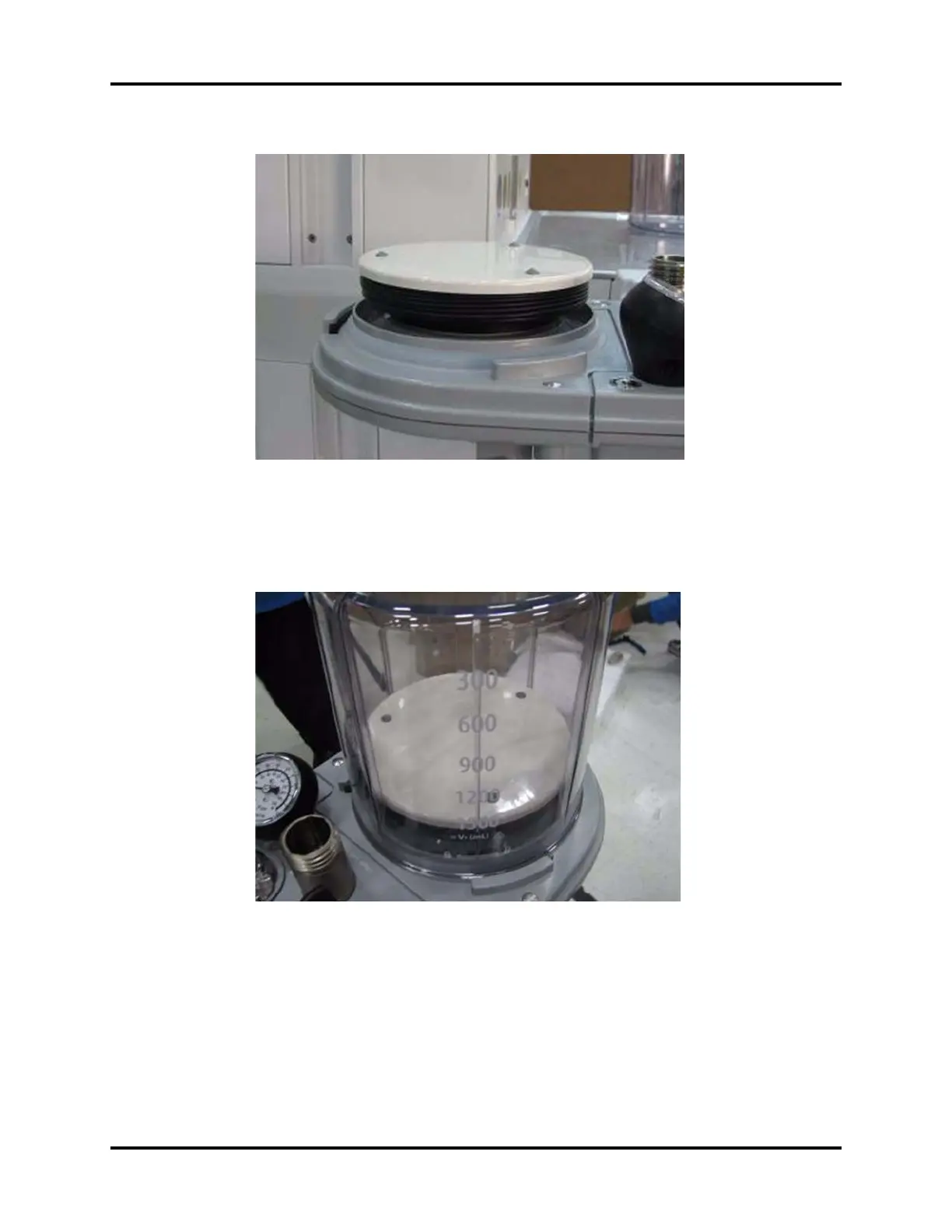

19. Install the bellows dome by placing it down on the breathing system and turning it clockwise to
lock it in place (the gradation markings on the bellows dome should face front and be visible to
the operator).
FIGURE 2-16
20. Install the Bag Arm Assembly, aligning the keyed features as shown below.
