A7™ Service Manual 046-006272-00 2 - 13
Installation Guide Assembly

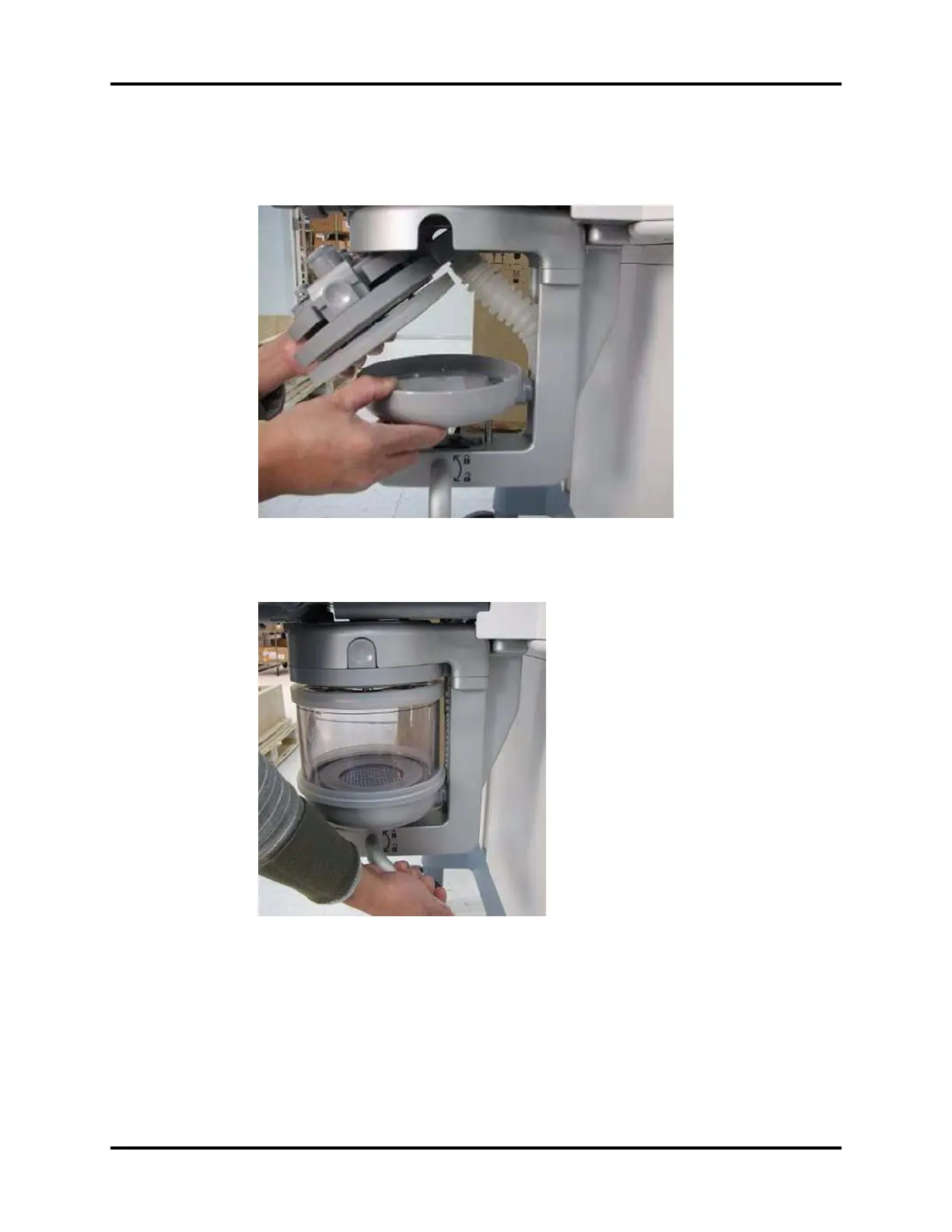

23. Install the white Absorber hose on the Absorber Assembly. Then, install the Absorber Assembly
without the canister in place. Install the lower part first, line up the pins with the holes, and then
align the top part. Push the top part in (upward) until both the front and back latches click into
place.
FIGURE 2-20
24. Add CO2 absorbent Pre-Pak or loose fill to the canister. Slide the canister into the Absorber
Assembly. Turn the locking lever 90° counter-clockwise to lock the canister in place.
FIGURE 2-21
