Assembly Installation Guide
2 - 14 046-006272-00 A7™ Service Manual

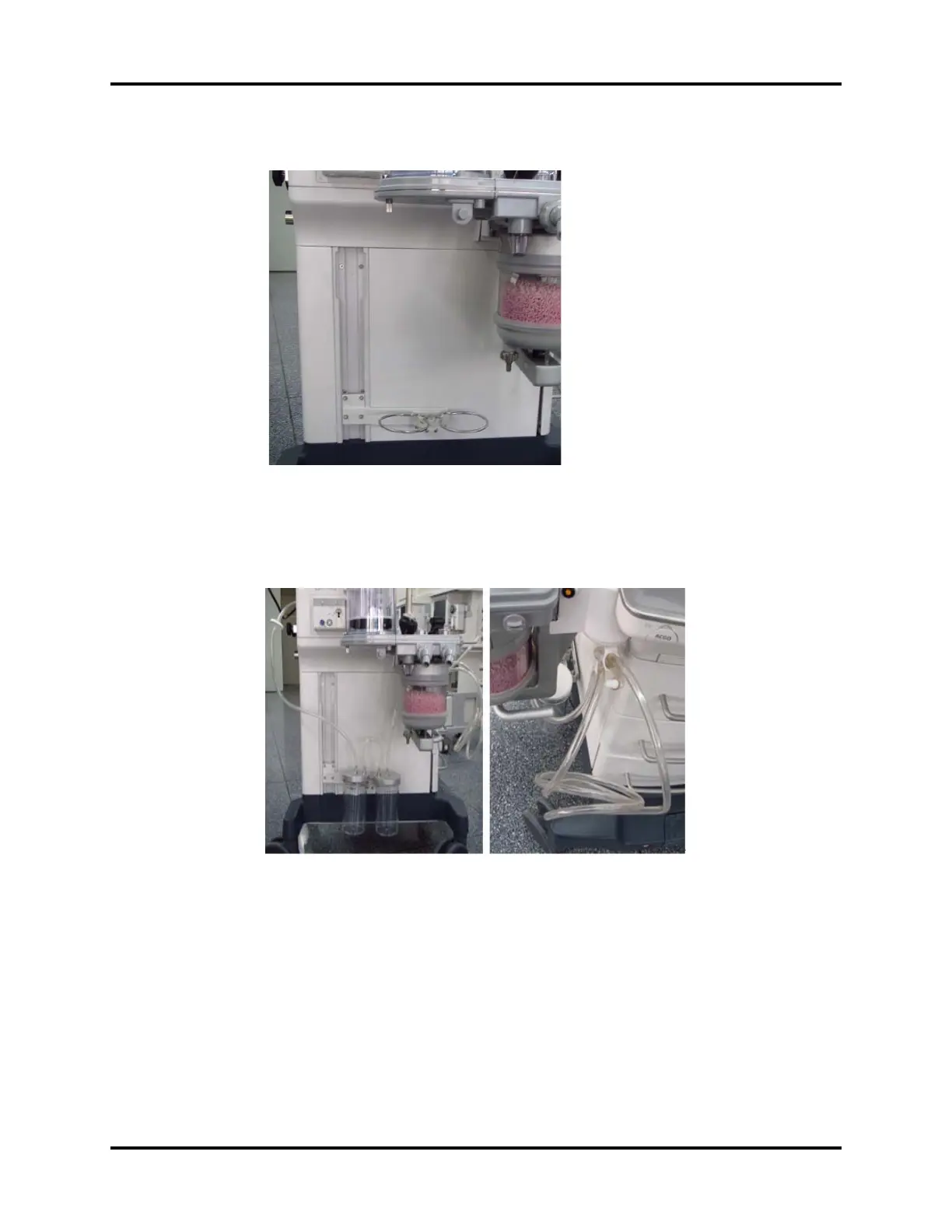

25. (Canada Only) Install the bracket for liquid collection bottle of vacuum suction device onto the
proper position on the left side of the machine.
FIGURE 2-22
26. (Canada Only) Place the liquid collection bottle onto the bracket and connect the tubes
properly.
FIGURE 2-23
27. Slide the Scavenger Assembly in the track on the lower left side (i.e., same side as the Breathing
Assembly) of the A7 and tighten the thumbscrew on the Scavenger Assembly to lock it in place.
Install one side of the Scavenger Hose to the Scavenger Assembly and the other side of the
Hose to the A7 as shown below.
NOTE: If a passive scavenger system was ordered with the unit, connect the
passive scavenger to the A7 instead of the Scavenger Hose. Follow the
installation instructions that come with the passive scavenging kit.
